Combination Light Switch Test/Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Honda Odyssey, 2003 Honda Odyssey, 2002 Honda Odyssey, 2001 Honda Odyssey, and 2000 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the driver's dashboard lower cover (see DASHBOARD LOWER COVER REMOVAL/INSTALLATION ).
  2. Remove the steering column covers (see STEERING COLUMN REMOVAL AND INSTALLATION ).
  3. Disconnect the 14P connector (A) from the combination light switch (B).

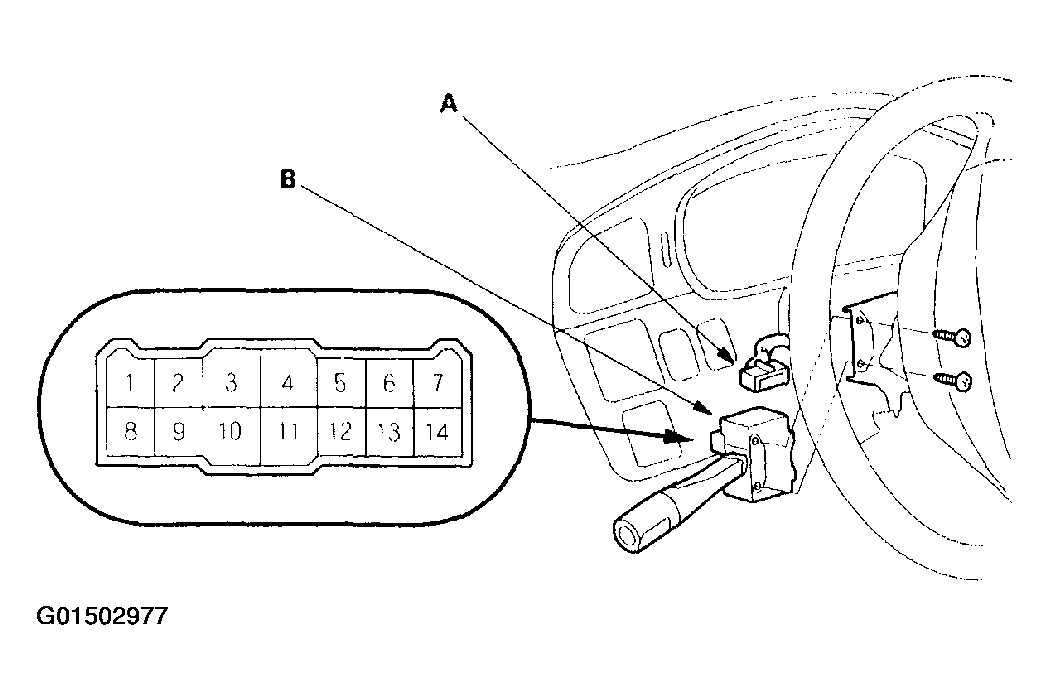

    Fig 1: Disconnecting 14P Connector From Combination Light Switch
    G01502977Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the two screws, then pull out the combination light switch.
  5. Inspect the connector terminals to be sure they are all making good contact.
    • If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
    • If the terminals look OK, check for continuity between the terminals in each switch position according to the tables.

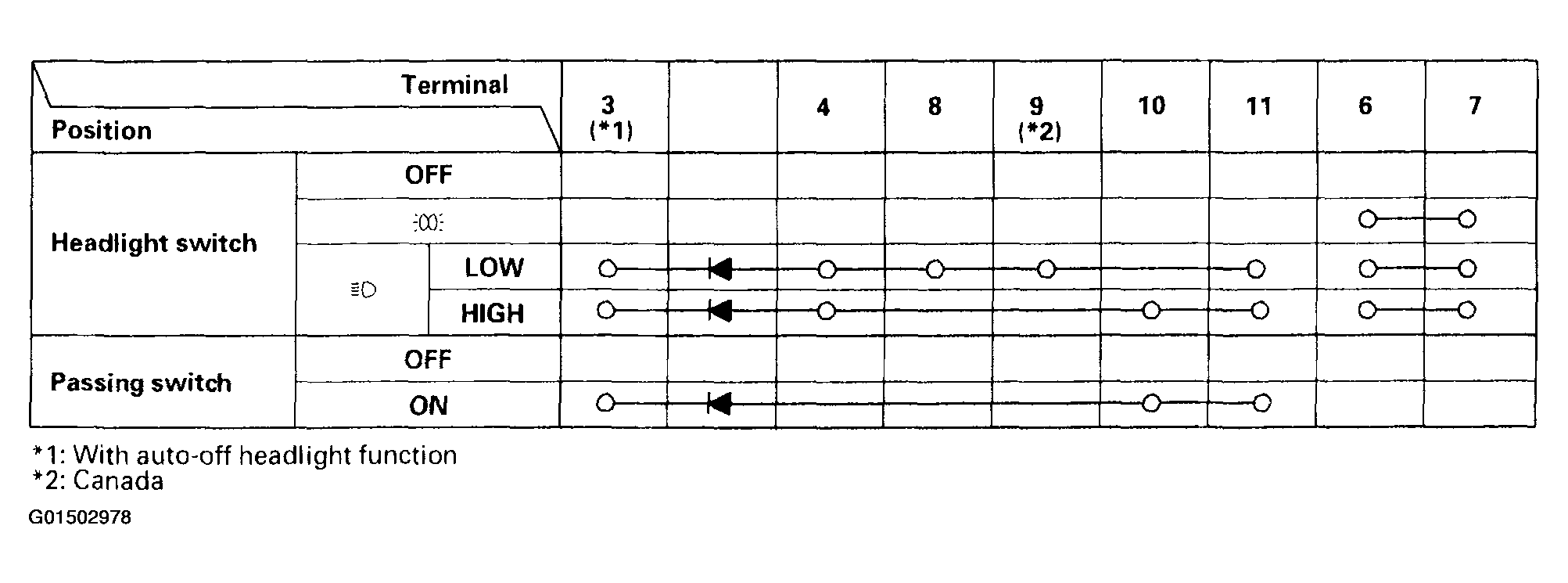

    Fig 2: Checking Continuity Between Terminals Chart (Light Switch)
    G01502978Courtesy of AMERICAN HONDA MOTOR CO., INC.

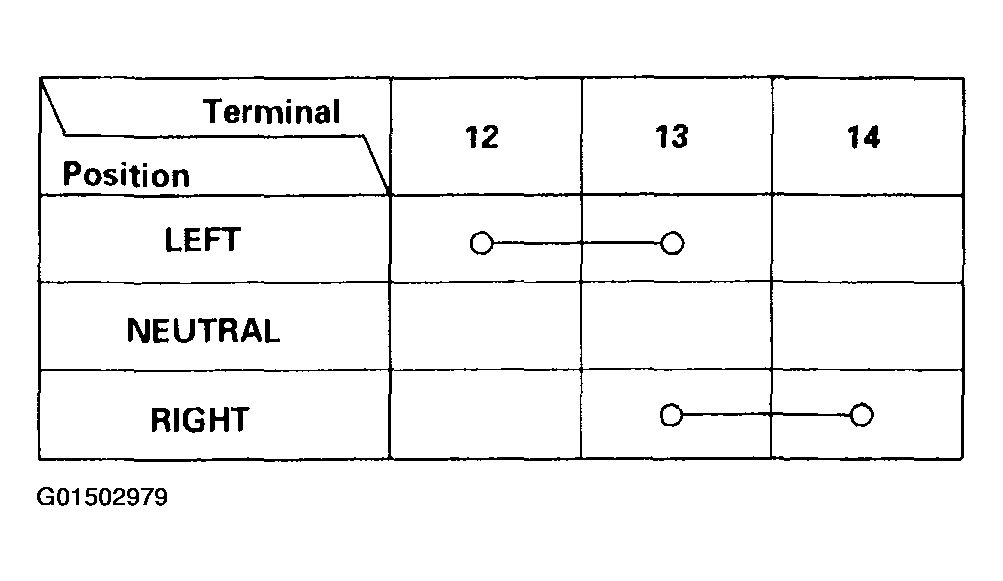

    Fig 3: Checking Continuity Between Terminals Chart (Turn Signal Switch)
    G01502979Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. If the continuity check is not as specified in the table, replace the switch.
