Third Row Seat Removal/Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Honda Odyssey, 2003 Honda Odyssey, 2002 Honda Odyssey, 2001 Honda Odyssey, and 2000 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Take care not to scratch the interior trim and body or tear the seat covers.
  1. Remove the third row seat as shown.
  2. Install the seat in the reverse order of removal and note these items:
    • After disassembling the pivot bracket, replace the pivot bushings.
    • Make sure the third row seat latches and unlatches properly, and if necessary, adjust the third row seat striker forward or rearward.

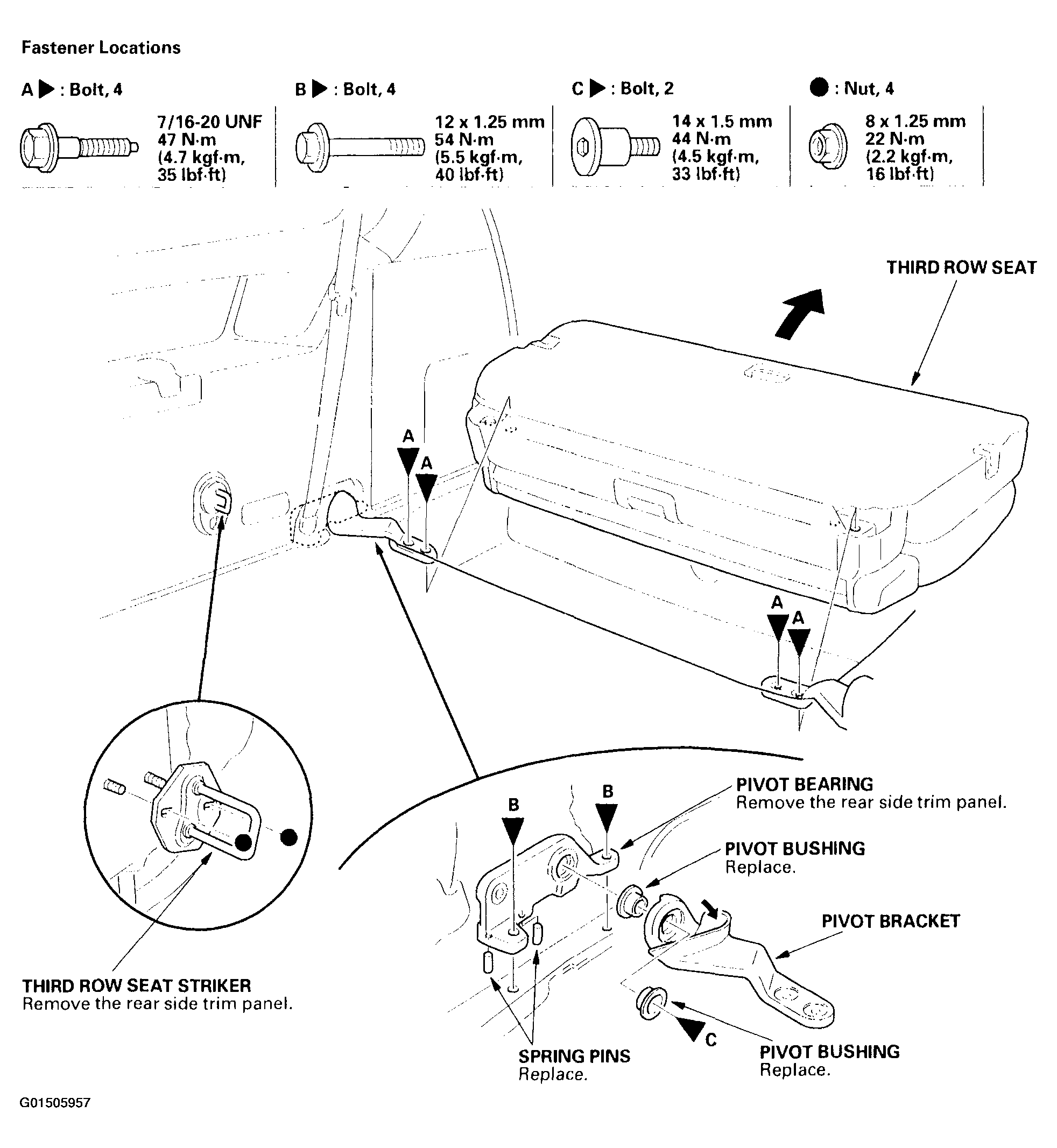

Fig 1: Exploded View Of Third Row Seat
G01505957Courtesy of AMERICAN HONDA MOTOR CO., INC.
