Motor Test

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Honda Odyssey, 2003 Honda Odyssey, 2002 Honda Odyssey, 2001 Honda Odyssey, and 2000 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Remove the driver's seat (see Front Seat Removal/Installation ).
Remove the adjustment switch cover (A) by removing the three screws.

Fig 1: Removing Adjustment Switch Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.

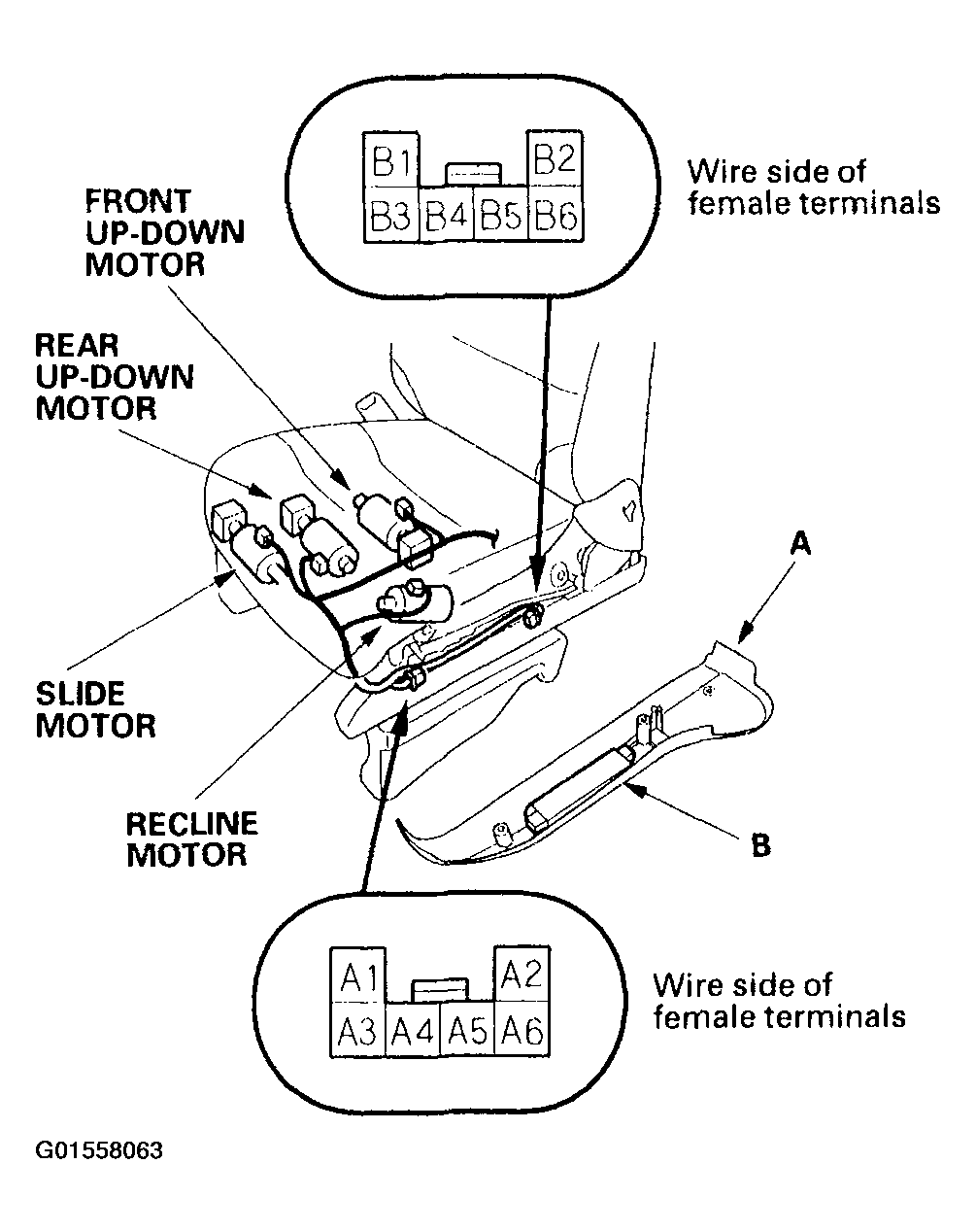

Disconnect the 6P connectors from the adjustment switch (B).
Test the motor. When the motor stops running, disconnect battery power immediately.

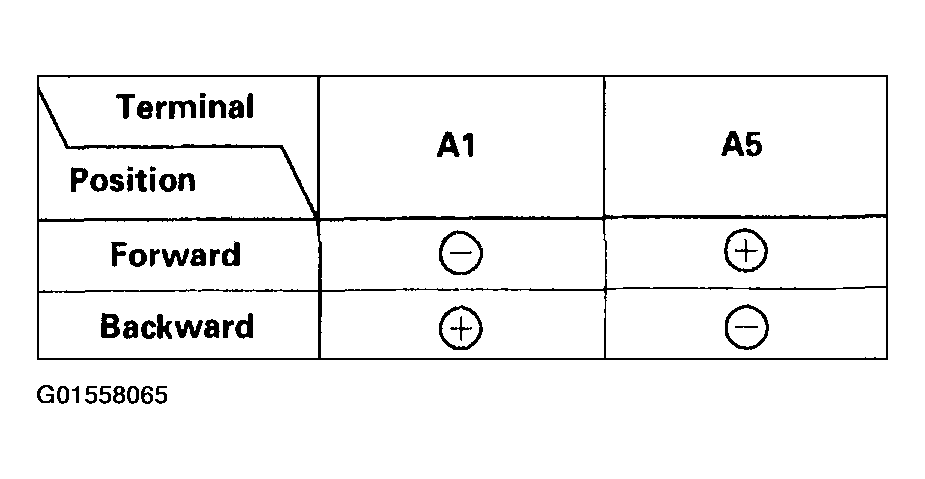

Fig 2: Testing Motor Table (Recline Motor)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

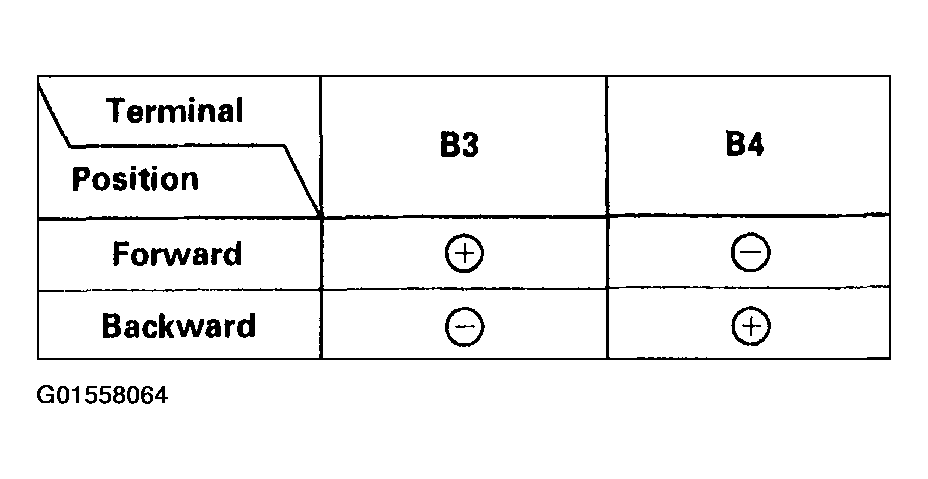

Fig 3: Testing Motor Table (Slide Motor)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

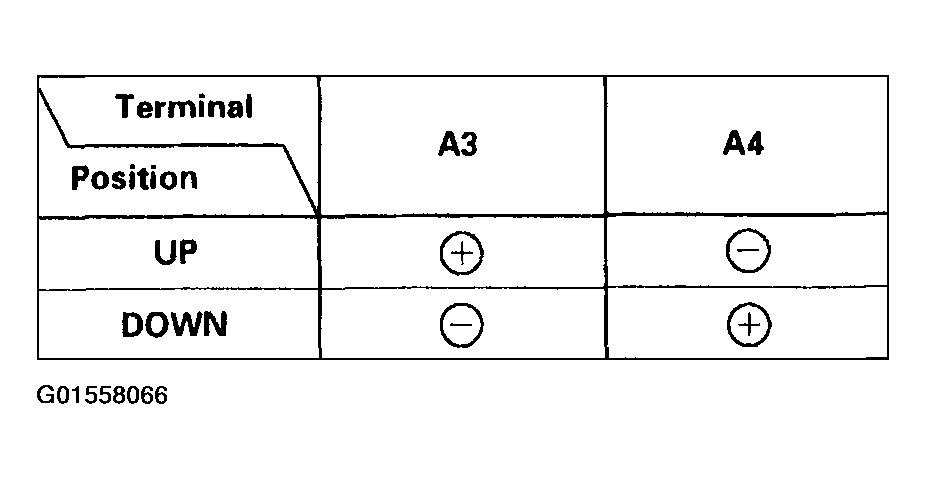

Fig 4: Testing Motor Table (Front Up-Down Motor)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

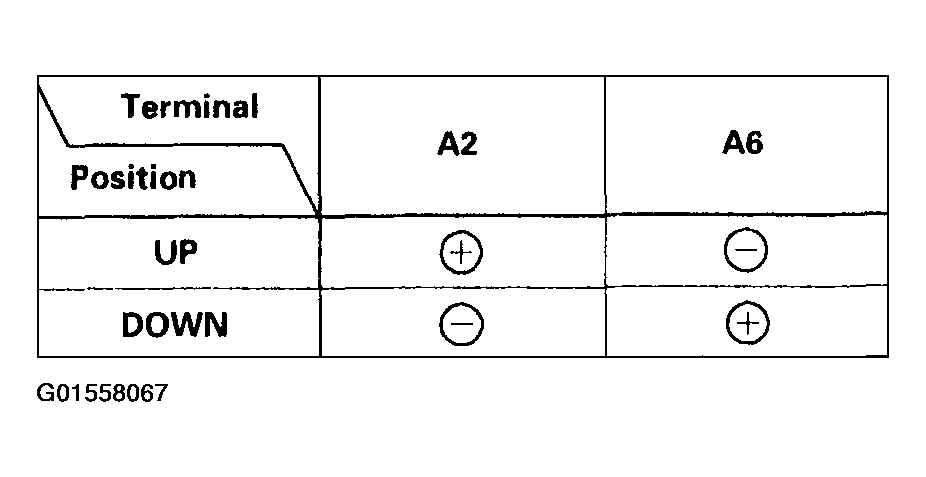

Fig 5: Testing Motor Table (Rear Up-Down Motor)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the motor does not run or fails to run smoothly, check for an open in the power seat wire harness between the 6P connector and the 2P connectors. If the harness is OK, replace the motor.
