Rearview Mirror Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Honda Odyssey, 2003 Honda Odyssey, 2002 Honda Odyssey, 2001 Honda Odyssey, and 2000 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

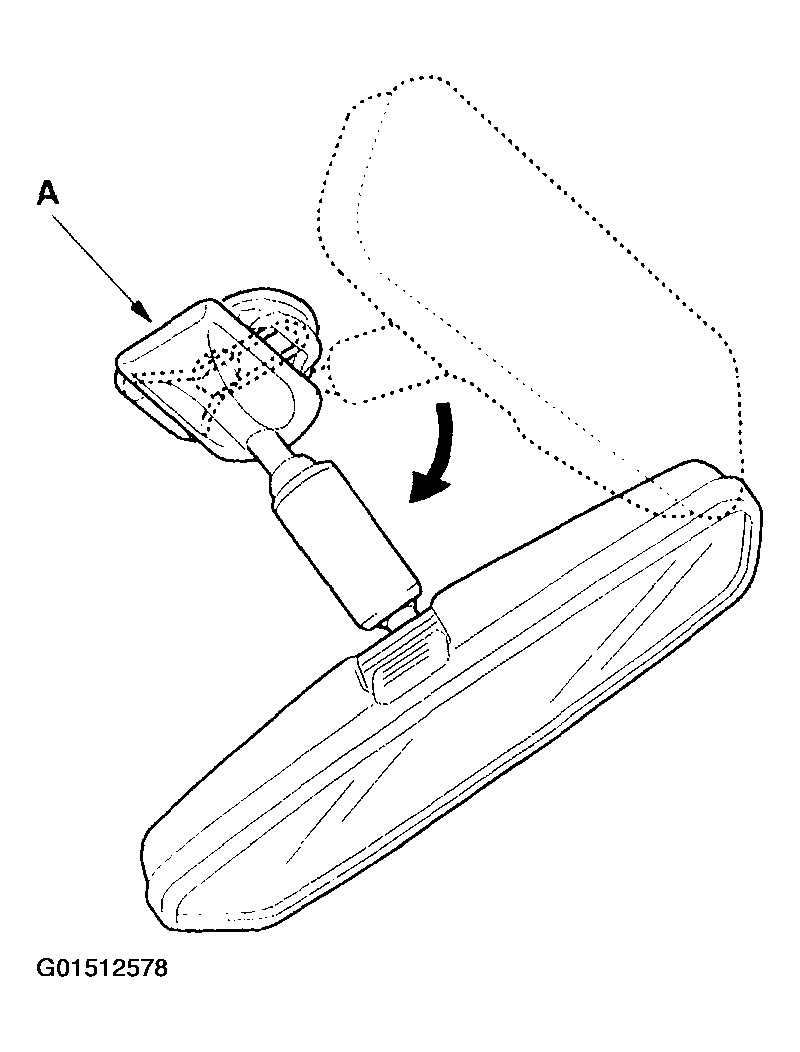

  1. Turn the rearview mirror base (A) 90°.
    Fig 1: Turning Rearview Mirror Base
    G01512578Courtesy of AMERICAN HONDA MOTOR CO., INC.

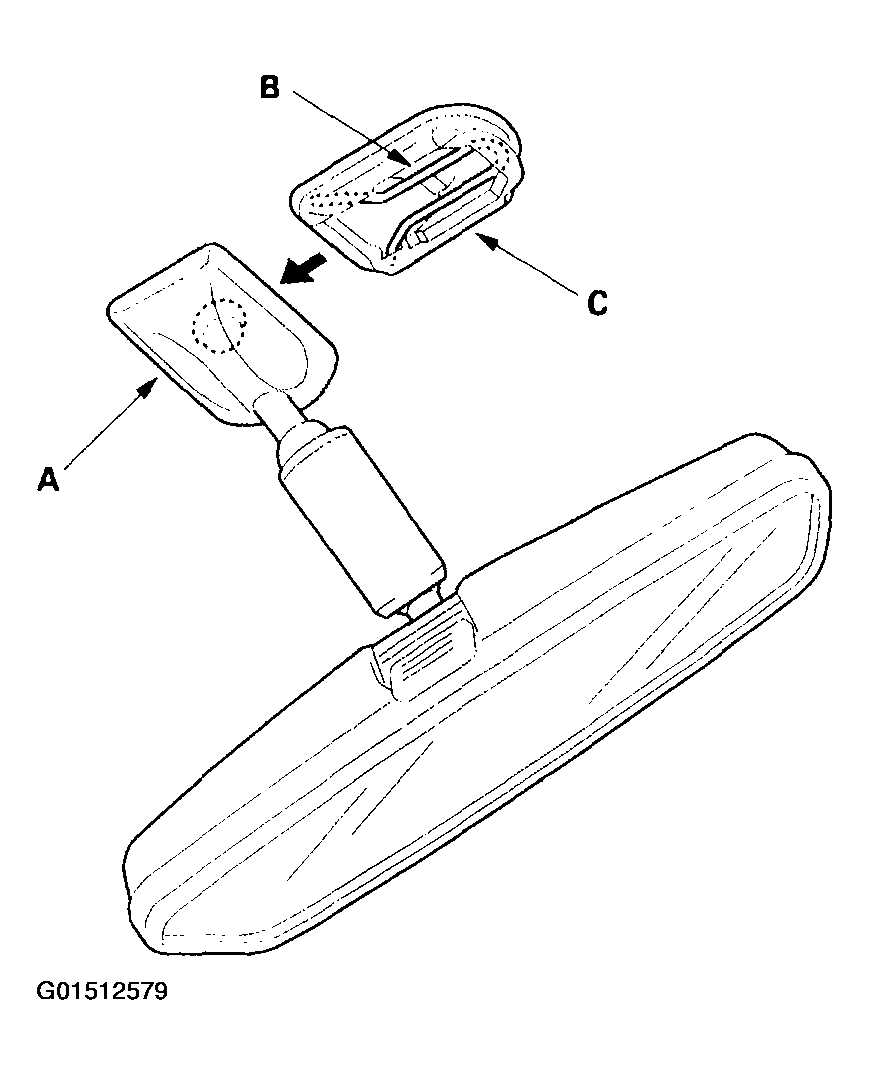

  2. Slide the rearview mirror (A) down toward the bottom of the windshield to detach it from the spring (B) in the mount (C).
    Fig 2: Sliding Rearview Mirror
    G01512579Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. If necessary, remove the spring from the mount.
  4. Install the rearview mirror in the reverse order of removal.
