Mirror Holder Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Honda Odyssey, 2003 Honda Odyssey, 2002 Honda Odyssey, 2001 Honda Odyssey, and 2000 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Push in the bottom of the mirror holder (A).

Fig 1: Pushing In Bottom Of Mirror Holder
Courtesy of AMERICAN HONDA MOTOR CO., INC.

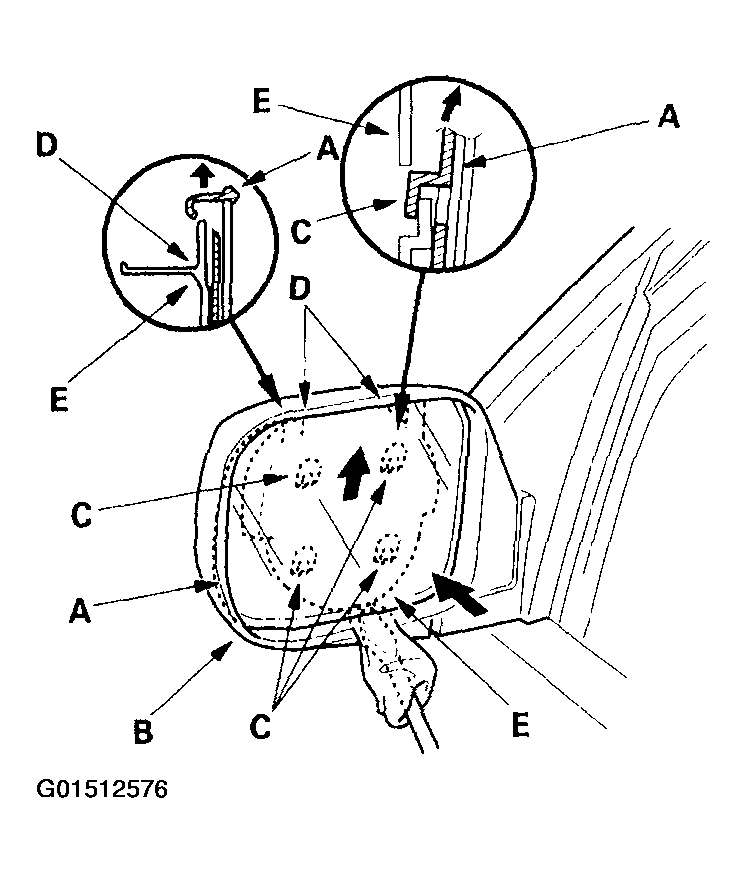

Insert a flat-tip screwdriver wrapped with a shop towel at the bottom gap between the mirror holder and mirror (B). Push the mirror holder upward to release the hooks (C, D) from the actuator adapter plate (E) while holding the mirror holder.

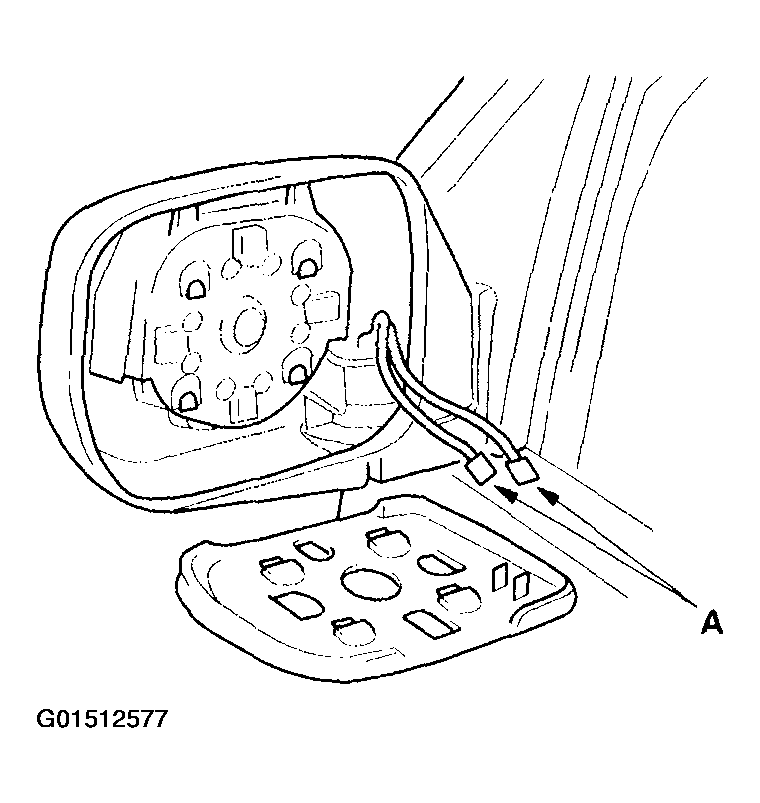

If equipped, disconnect the mirror defogger terminals (A).

Fig 2: Disconnecting Mirror Defogger Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the mirror holder in the reverse of the removal, and note these items:
- If equipped, make sure the terminals are plugged in properly.
- Push the mirror holder downward to lock in the hooks.
- Push in the bottom of the mirror fully before you push on the mirror holder.
- Check the operation of the actuator.
