Intermediate Shaft: Reassembly

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to the exploded view as needed during this procedure. See Fig 1 .
  1. Clean the disassembled parts with solvent, and dry them with compressed air. DO NOT wash the rubber parts with solvent.
  2. Press the intermediate shaft bearing (A) into the bearing support (B) using the driver, oil seal driver attachment, and a press. See Fig 2 .

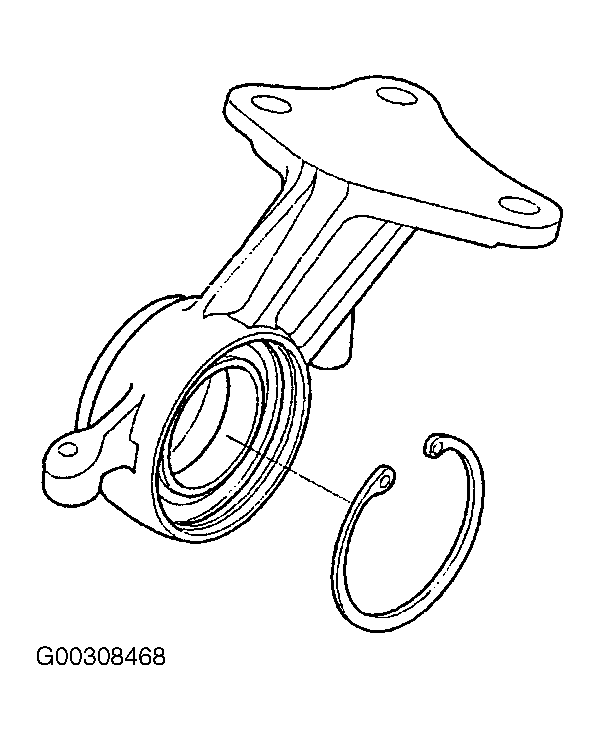

  3. Install the internal snap ring into the groove of the bearing support. See Figure .
  4. Press the intermediate shaft (A) into the shaft bearing using the attachment and a press. See Fig 3 .
  5. Install the external snap ring (A) into the groove of the intermediate shaft (B). See Fig 4 .
  6. Pack the interior of the outer seal (A) with grease. Install the outer seal into the bearing support (B) using fork seal driver, support base attachment, support base and a press. See Fig 5 .
  7. Install the heat shield onto the bearing support.

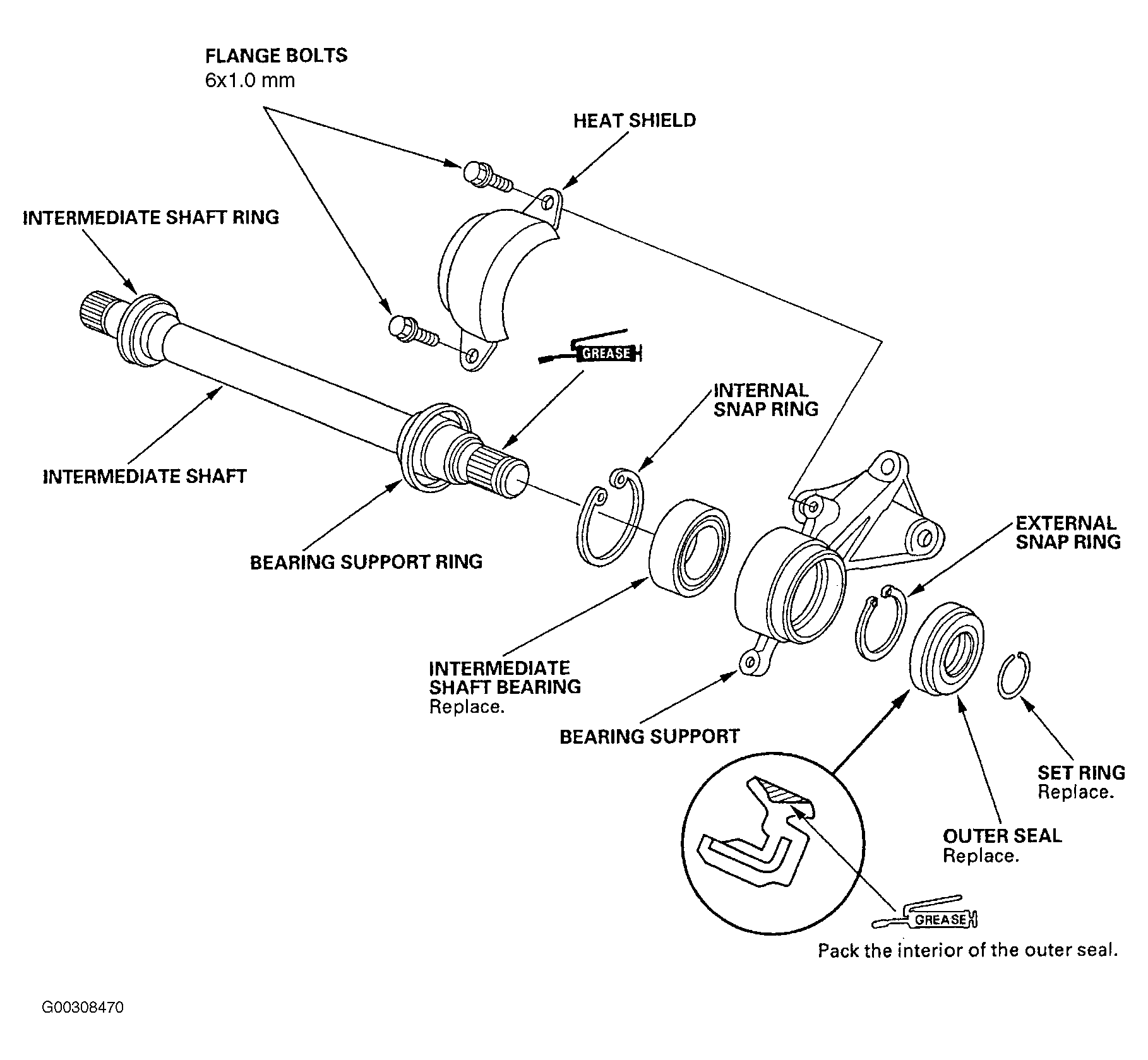

Fig 1: Exploded View Of Intermediate Shaft
G00308470Courtesy of AMERICAN HONDA MOTOR CO., INC.

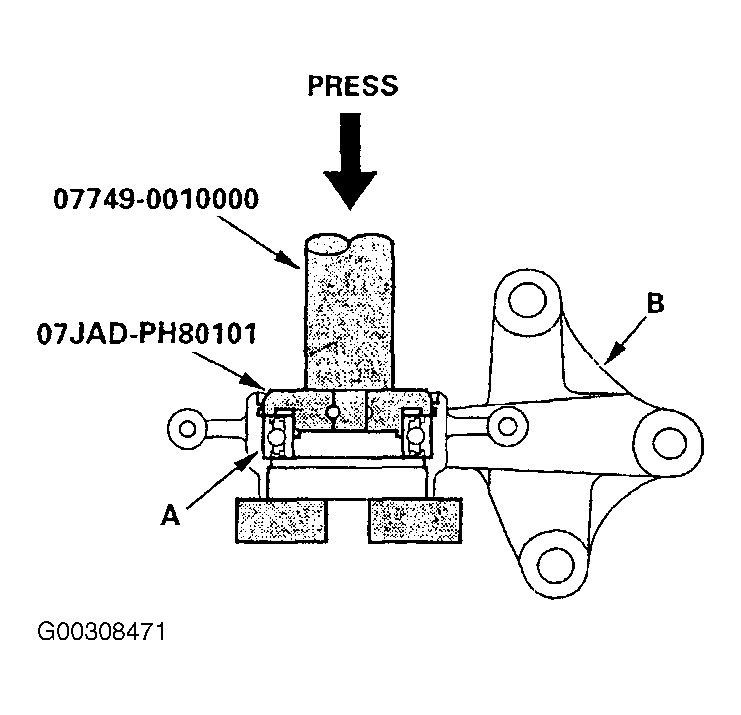

Fig 2: Installing Intermediate Shaft Into Bearing Support
G00308471Courtesy of AMERICAN HONDA MOTOR CO., INC.

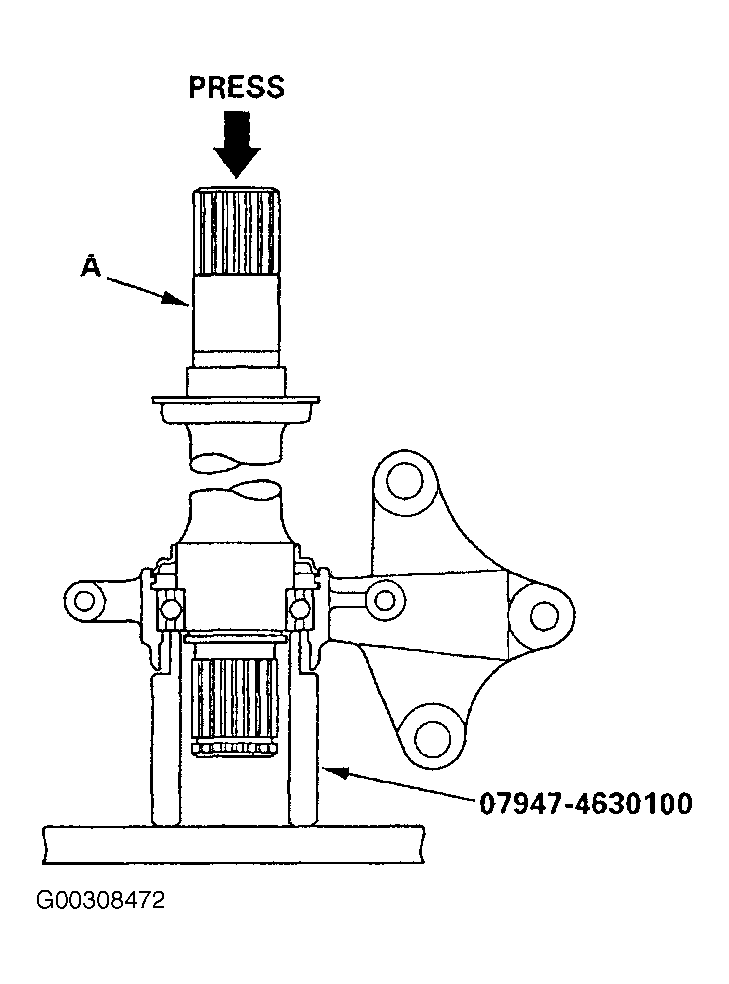

Fig 3: Installing Intermediate Shaft Into Shaft Bearing
G00308472Courtesy of AMERICAN HONDA MOTOR CO., INC.

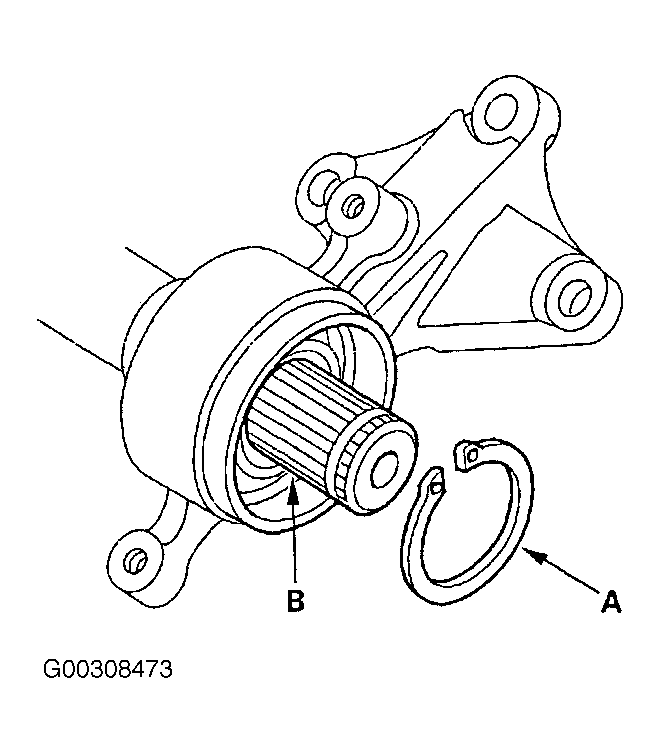

Fig 4: Installing External Snap Ring Into Grooves Of Intermediate Shaft
G00308473Courtesy of AMERICAN HONDA MOTOR CO., INC.

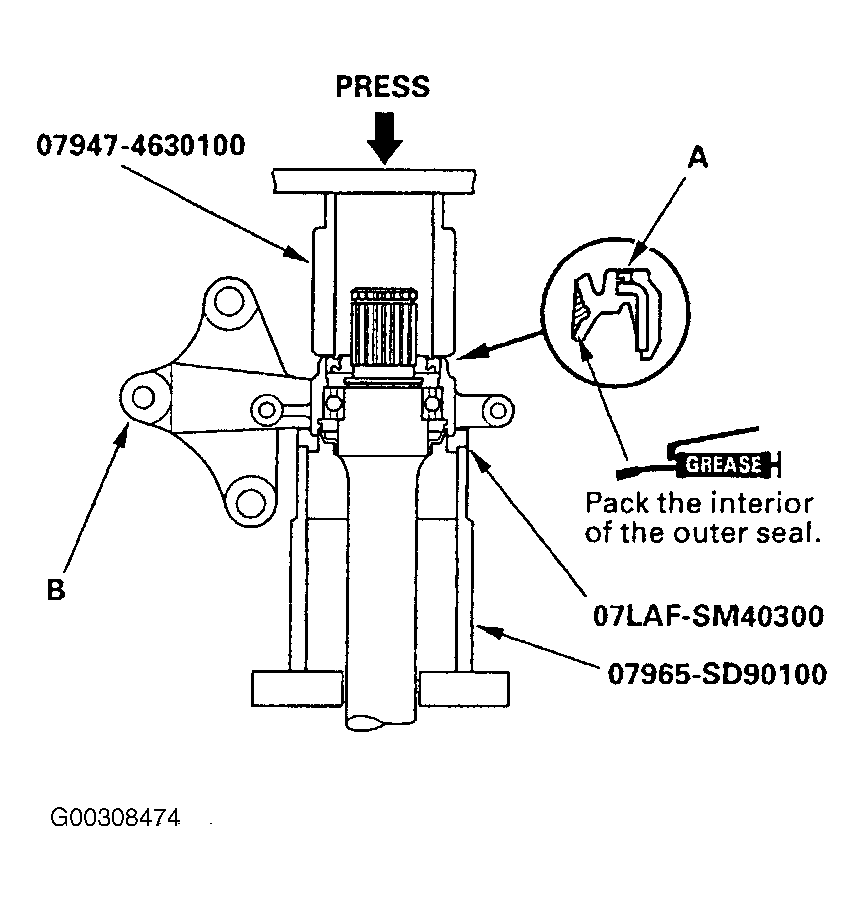

Fig 5: Installing Outer Seal Into Bearing Support
G00308474Courtesy of AMERICAN HONDA MOTOR CO., INC.
