Intermediate Shaft: Disassembly

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Remove the heat shield (A) and intermediate shaft outer seal (B) from the bearing support. See Fig 1 .
Remove the set ring (D) and the external snap ring (E).
Press the intermediate shaft (A) out of bearing (B) using the support base attachment, support base and a press. See Fig 2 . Be careful not to damage the metal rings (C) on the intermediate shaft during disassembly.
Remove the internal snap ring. See Fig 3 .
Press the intermediate shaft bearing (A) out of the bearing support (B) using the support base attachment, support base, attachment, driver and a press. See Fig 4 .

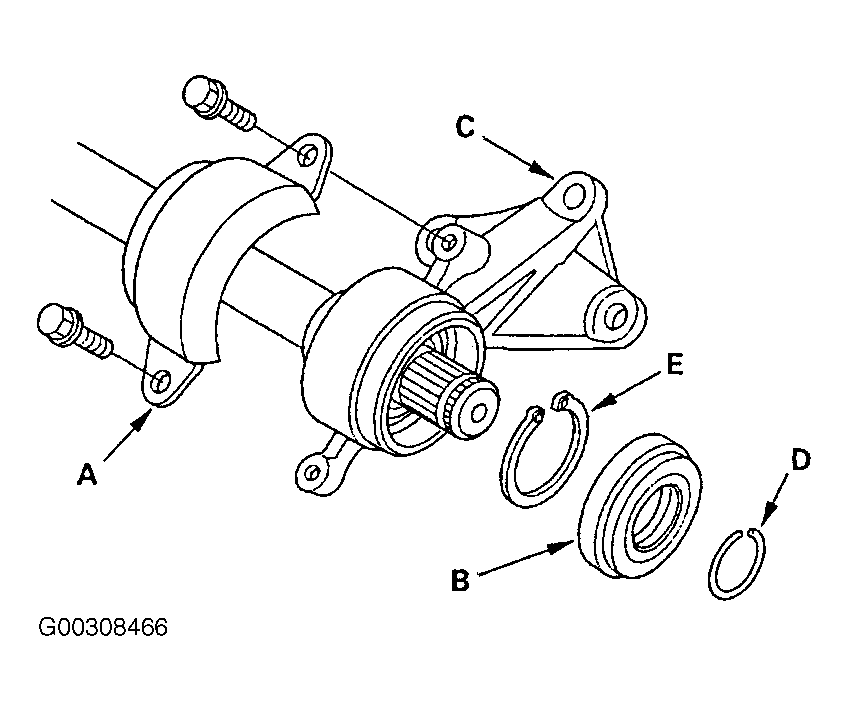

Fig 1: Removing Heat Shield & Intermediate Shaft

Courtesy of AMERICAN HONDA MOTOR CO., INC.

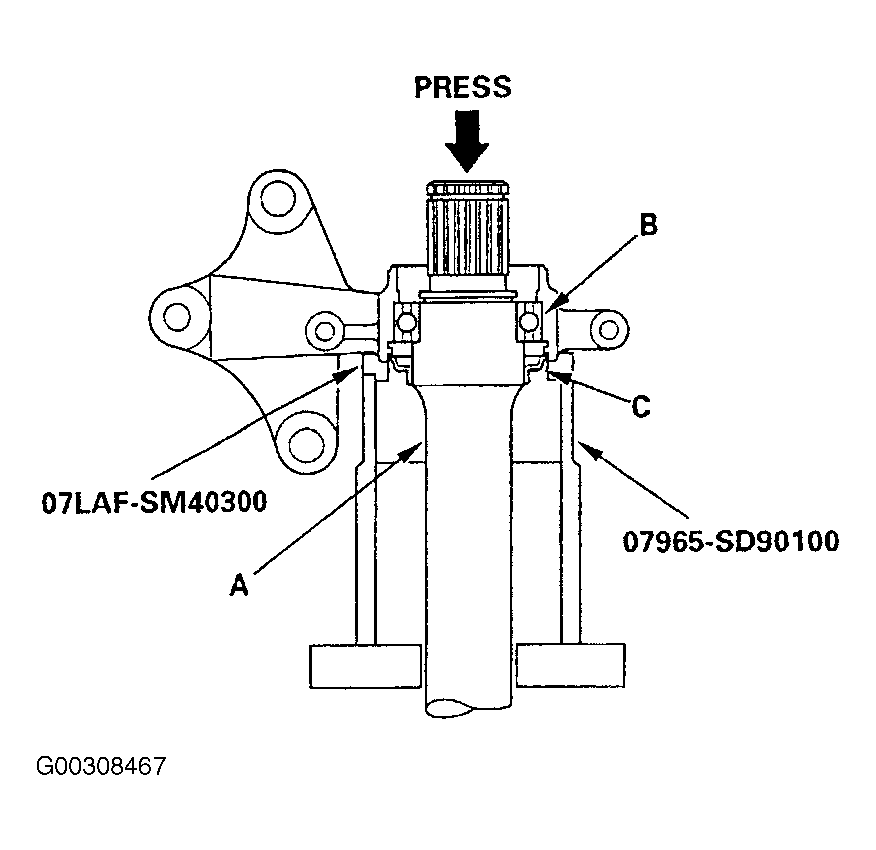

Fig 2: Pressing Intermediate Shaft

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: Removing Internal Snap Ring

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 4: Removing Intermediate Shaft Bearing

Courtesy of AMERICAN HONDA MOTOR CO., INC.
