Stereo Amplifier Removal/Installation
WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

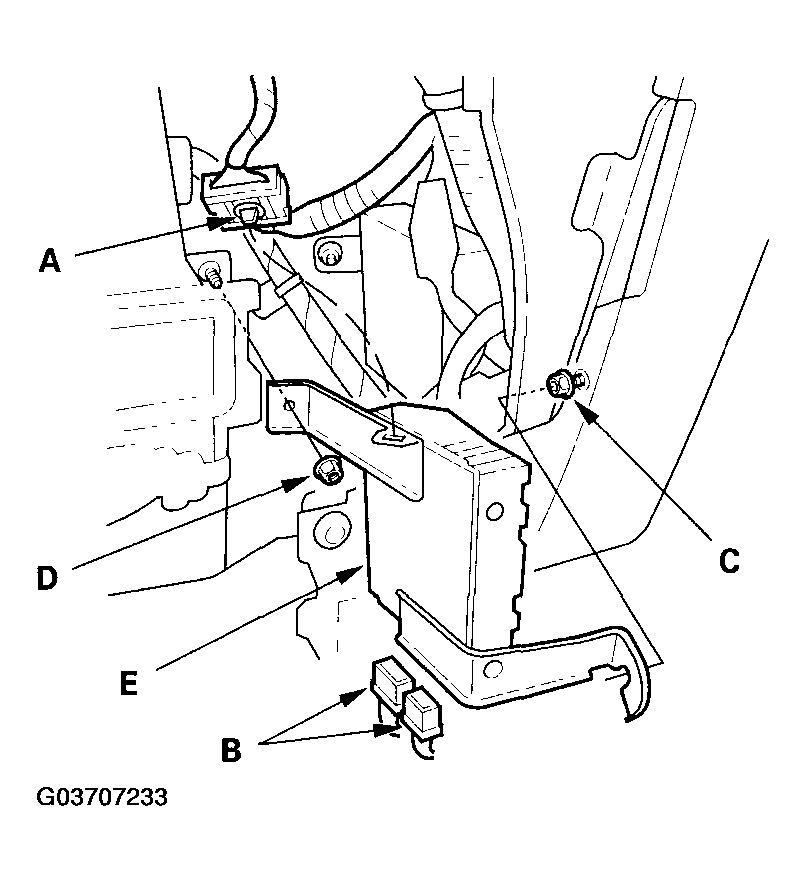

- Remove the glove box (see LOWER GLOVE BOX REMOVAL/INSTALLATION ).
- Remove the connector clip (A), and disconnect the connectors (B).
- Loosen the mounting bolt (C), and remove the mounting nut (D), then remove the stereo amplifier (E).
- Install the stereo amplifier in the reverse order of removal.
