Circuit Diagram

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

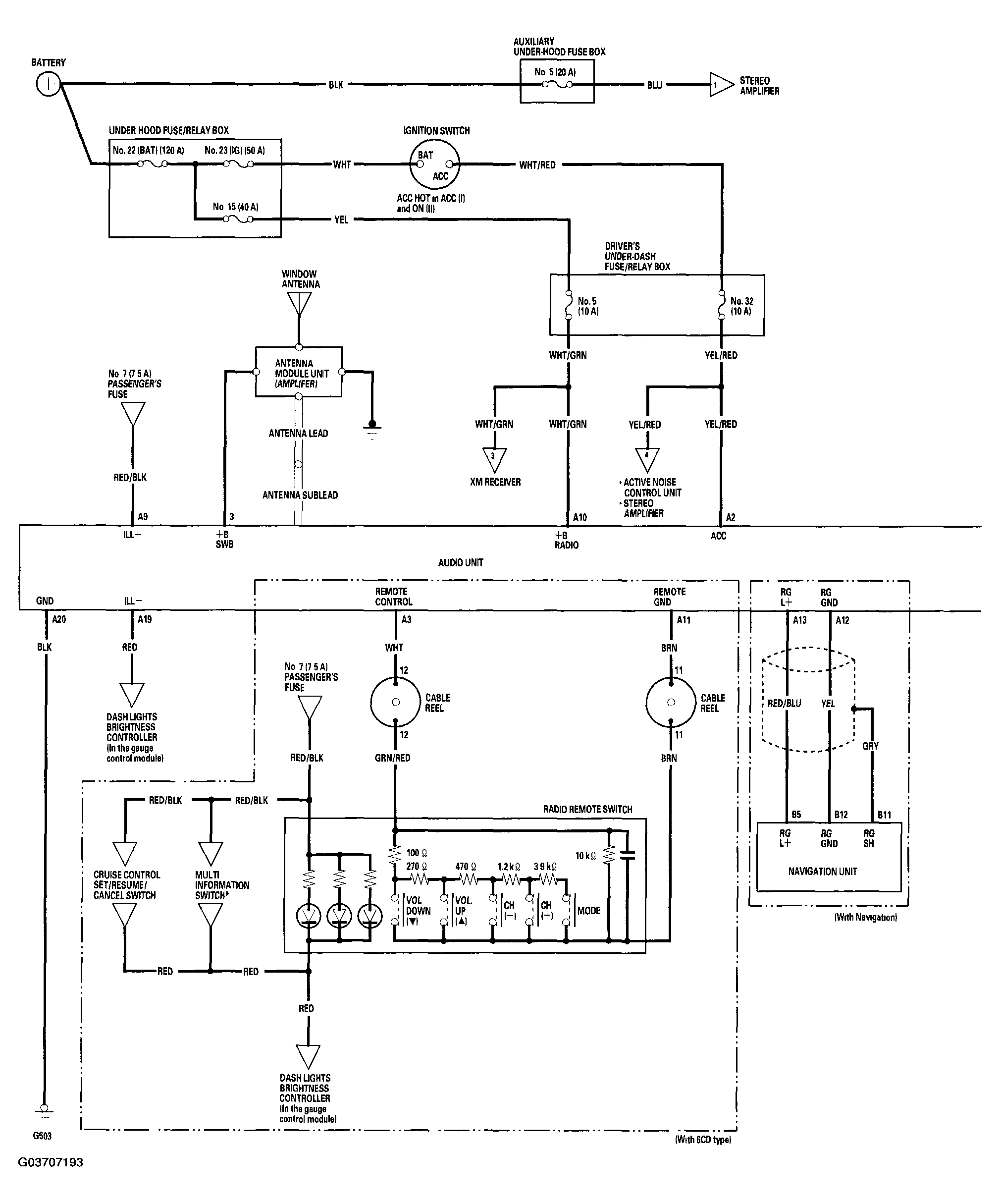

Fig 1: Audio System Circuit Diagram (1 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

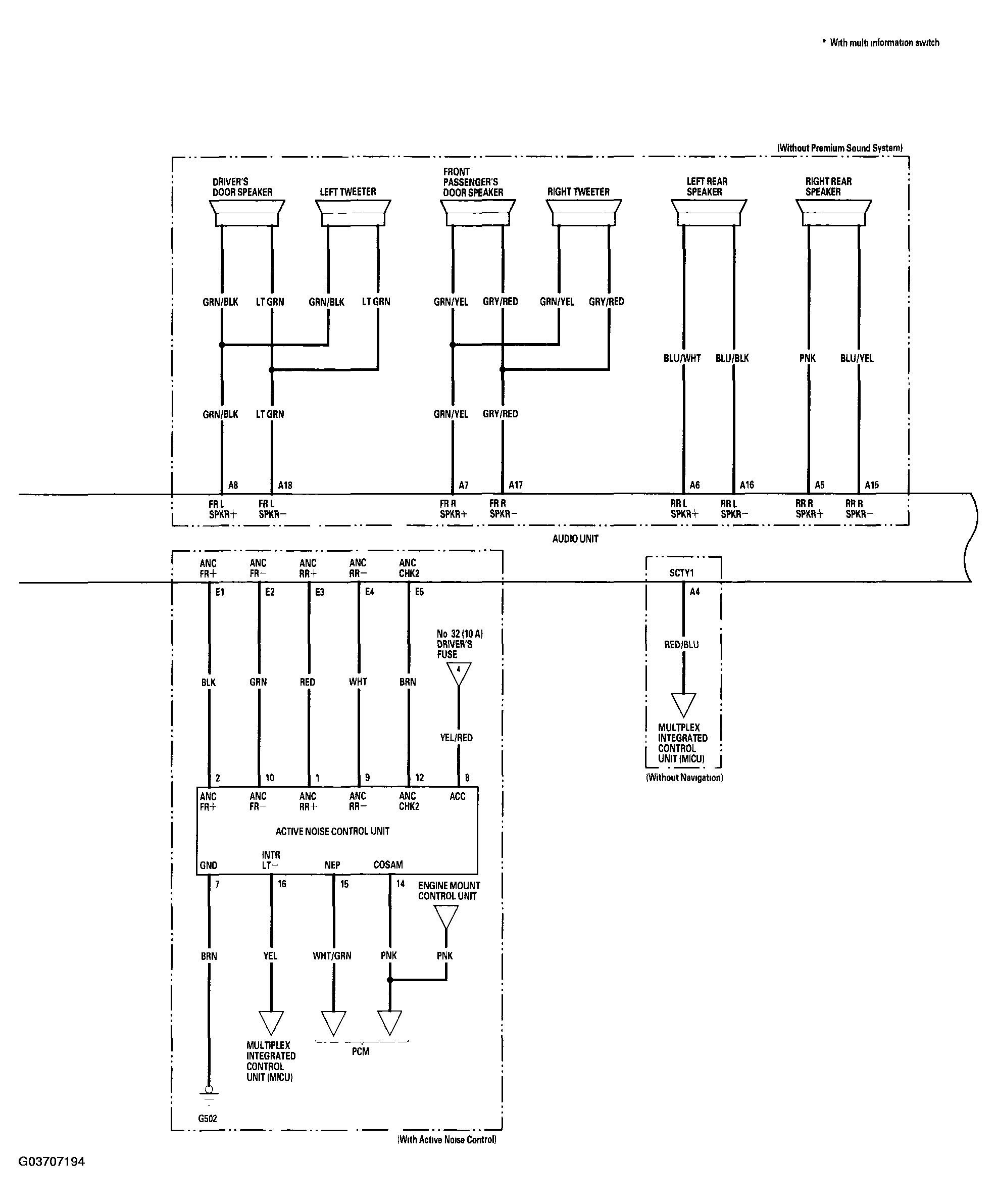

Fig 2: Audio System Circuit Diagram (2 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

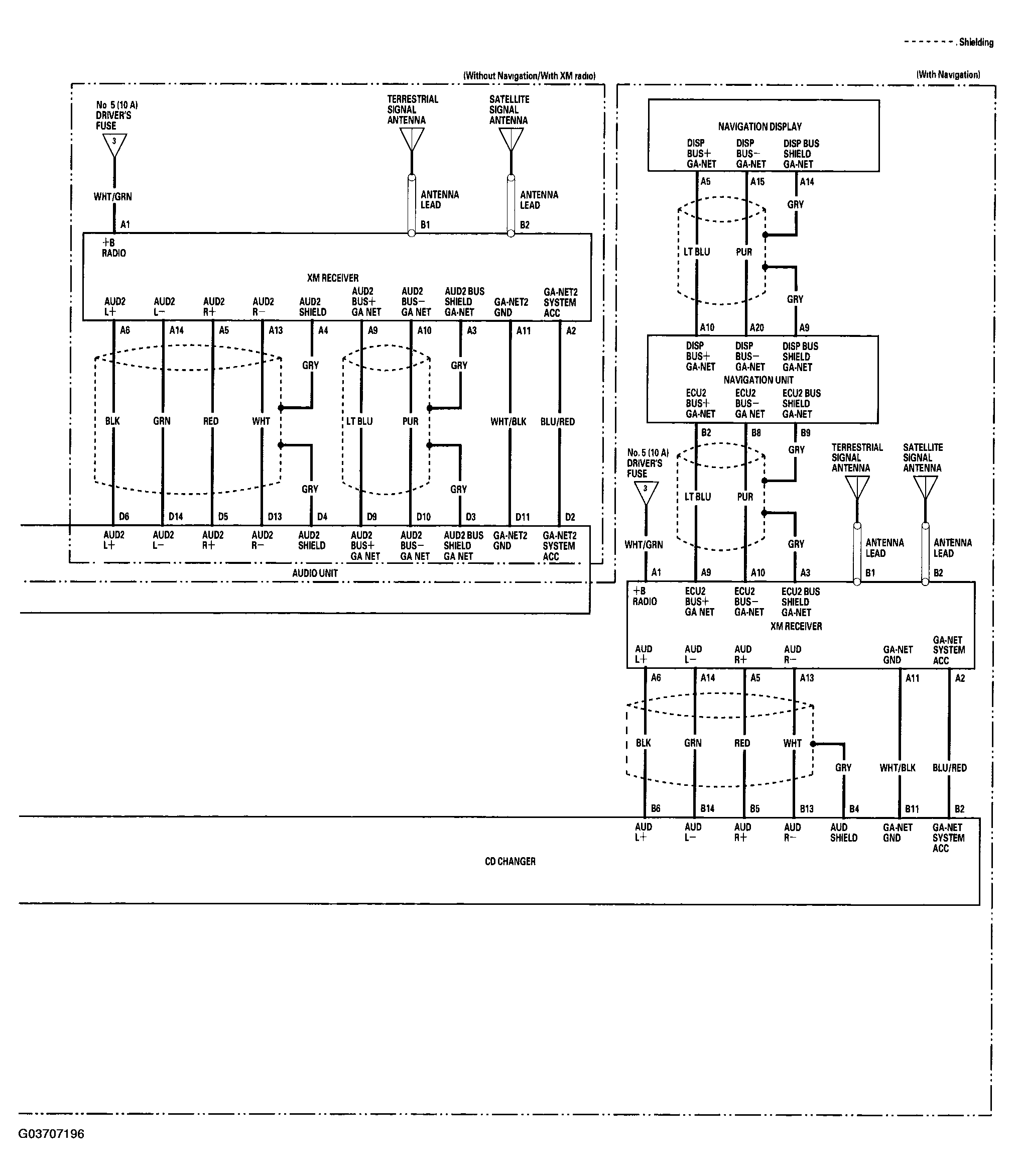

Fig 3: Audio System Circuit Diagram (3 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

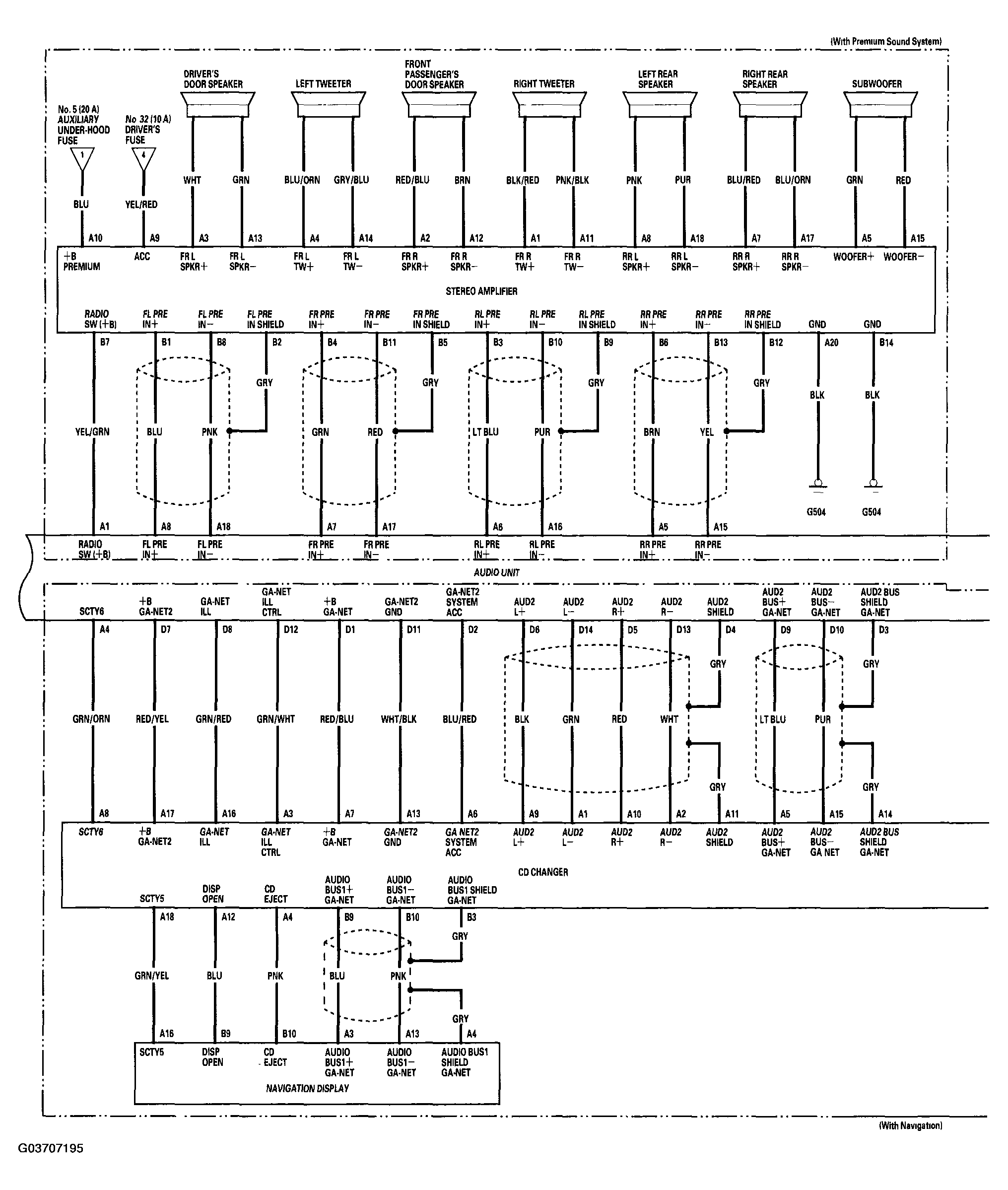

Fig 4: Audio System Circuit Diagram (4 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
