CD Changer Removal/Installation

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the headliner and display cover.

Remove the navigation display (see NAVIGATION DISPLAY REMOVAL/INSTALLATION ).
Remove the screws, then remove the bracket (A) and the CD changer (B).

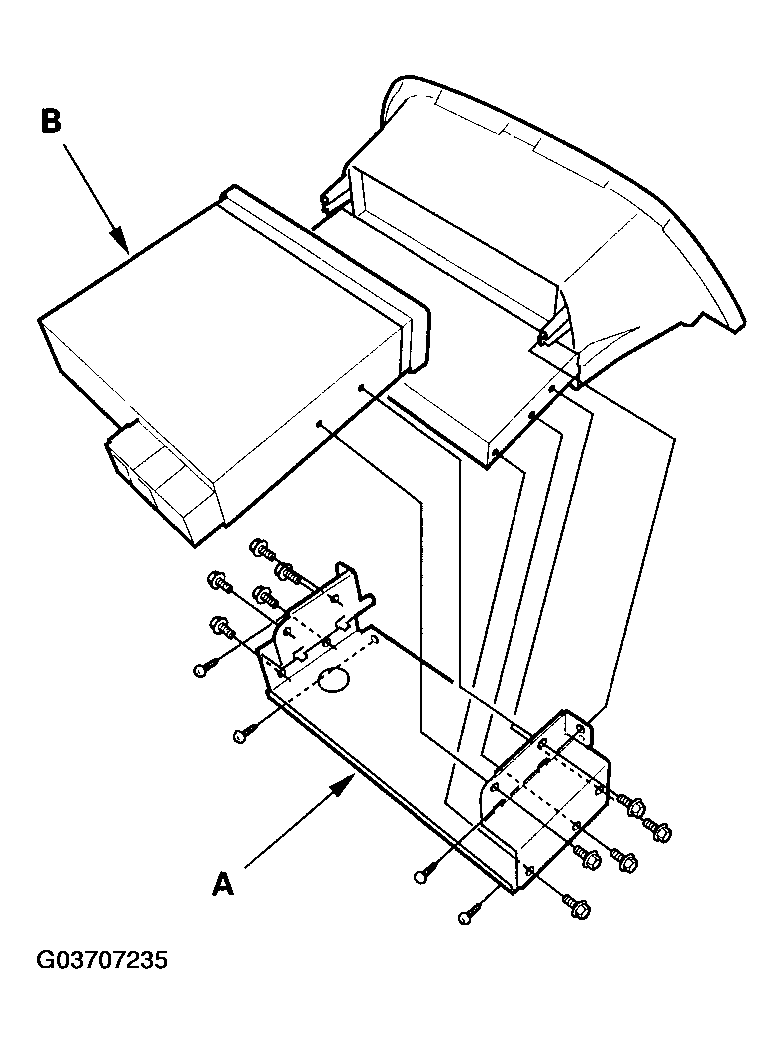

Fig 1: Removing Bracket And CD Changer
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the CD changer in the reverse order of removal.
