Front Wiper Motor Test

WARNING: This page is about a different car, the 2004 Honda Odyssey, 2003 Honda Odyssey, and 2002 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open hood. Remove wiper arms. Disconnect front wiper motor 5-pin connector. Using jumper wires, apply battery voltage to wiper motor terminal No. 4 (Green/Black wire) and ground terminal No. 2 (Blue wire). Ensure wiper motor operates on low speed. See Fig 1 . Go to next step.
  2. Using jumper wires, apply battery voltage to motor terminal No. 4 (Green/Black wire) and ground terminal No. 1 (Blue/Yellow wire). Wiper motor should operate on high speed. Replace wiper motor if it fails to run smoothly. See Fig 1 . If wiper motor operates as specified, go to next step.
  3. Connect analog voltmeter positive lead to terminal No. 5 (Blue/White wire), and negative lead to terminal No. 3 (Black wire). With wiper motor running at low or high speed, voltage should pulse between zero volts and 5 or more volts. Replace wiper motor if voltage does not pulse as specified.

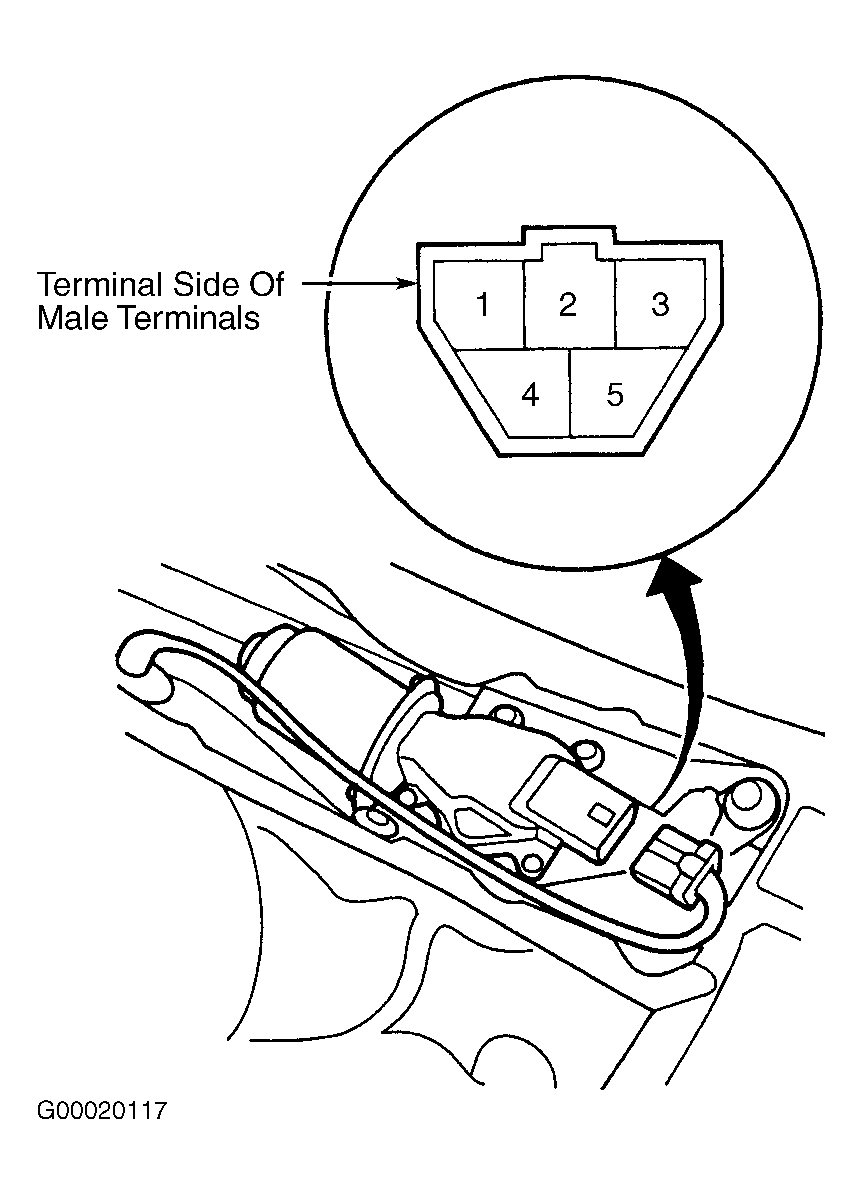

Fig 1: Identifying Front Wiper Motor Connector Terminals
G00020117Courtesy of AMERICAN HONDA MOTOR CO., INC.
