EX-L Touring model

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the driver's airbag assembly (see DRIVER'S AIRBAG REPLACEMENT ).

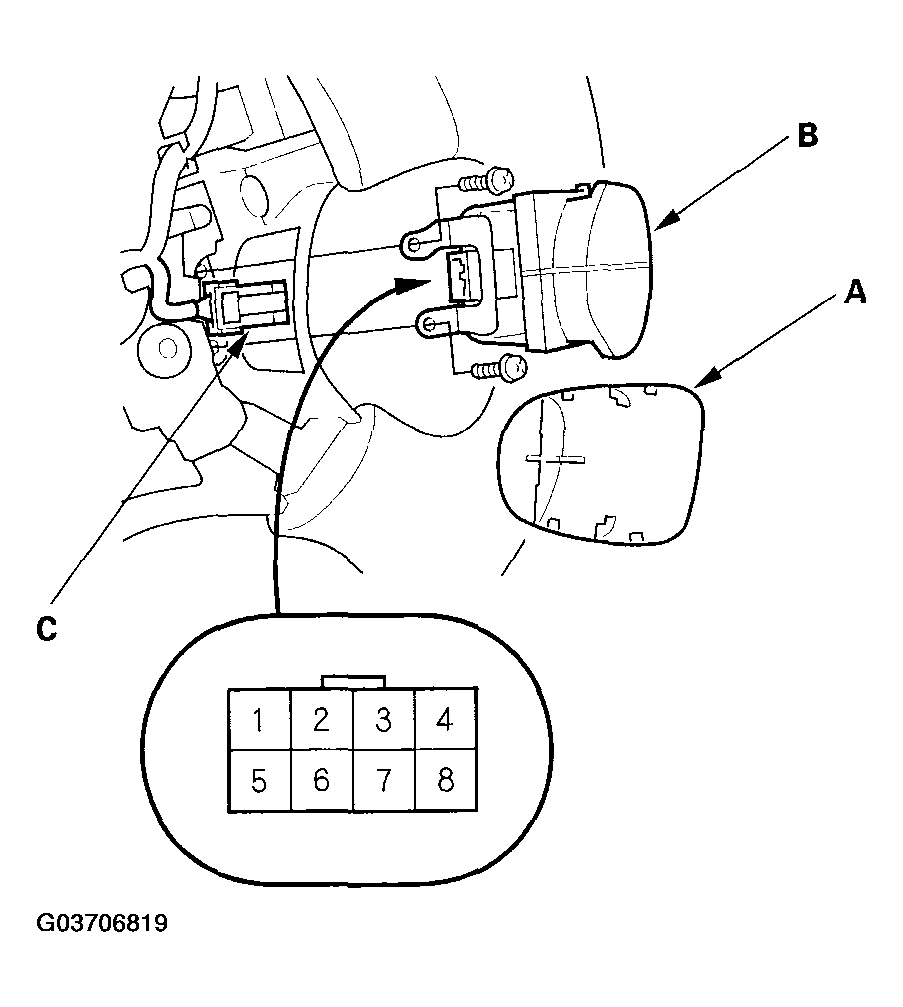

  2. Remove the cover (A), two screws and the select/reset/information switch (B), then disconnect the 8P connector (C) from the switch.
    Fig 1: Removing Select/Reset/Information Switch
    G03706819Courtesy of AMERICAN HONDA MOTOR CO., INC.

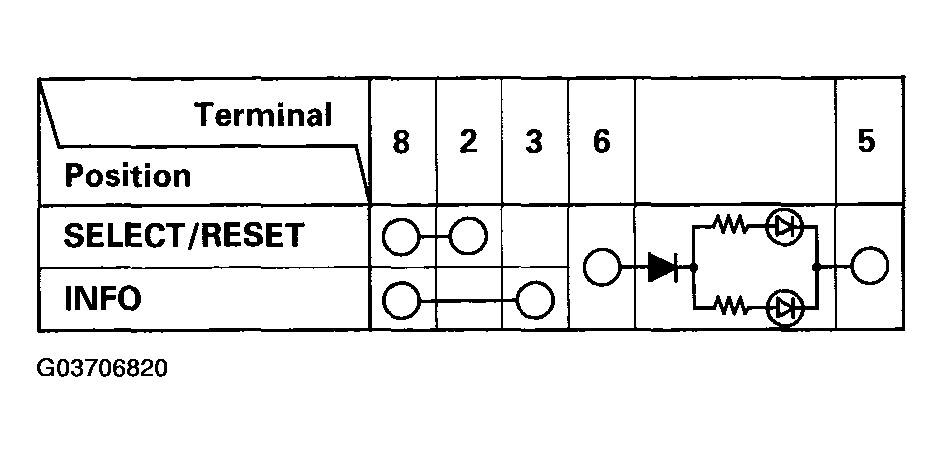

  3. Check for continuity between the terminals in each switch position according to the table shown in Fig 2.
    Fig 2: Checking Continuity Between Terminals In Switch Position Table
    G03706820Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. If the check is not as specified, replace the switch. If the switch is OK, but the system does not operate, check for an open in the wire between the switch and the cable reel.
