Rear Window

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the tailgate, and remove the tailgate trim panel (see TRIM REMOVAL/INSTALLATION - TAILGATE AREA ).
  2. Disconnect the 4P connector (A) from the motor (B).

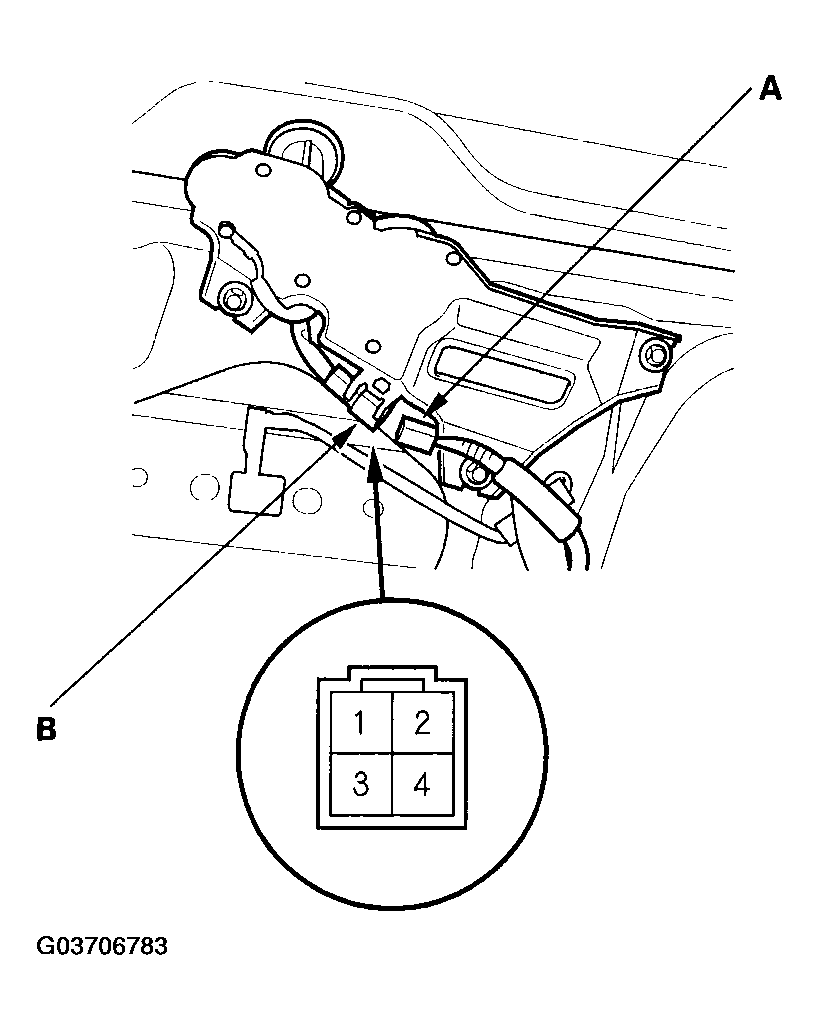

    Fig 1: Disconnecting 4P Connector From Motor
    G03706783Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Test the motor by connecting battery power to the No. 4 terminal and ground to the No. 2 terminal of the 4P connector. The motor should run. If the motor does not run or fails to run smoothly, replace the motor.
  4. Connect battery power to the No. 1 and No. 4 terminals, and ground to the No. 2 terminal of the 4P connector. Then connect an analog voltmeter between the No. 3 (+) terminal and the No. 2 (ground) terminal. When the park switch makes contact, the pointer should swing.
  5. If the motor test is not as specified, replace the rear window wiper motor.
