Washer Tube Replacement

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Remove the right inner fender (see FRONT INNER FENDER REPLACEMENT ).
Remove the washer nozzles and clips, then remove the tubes.

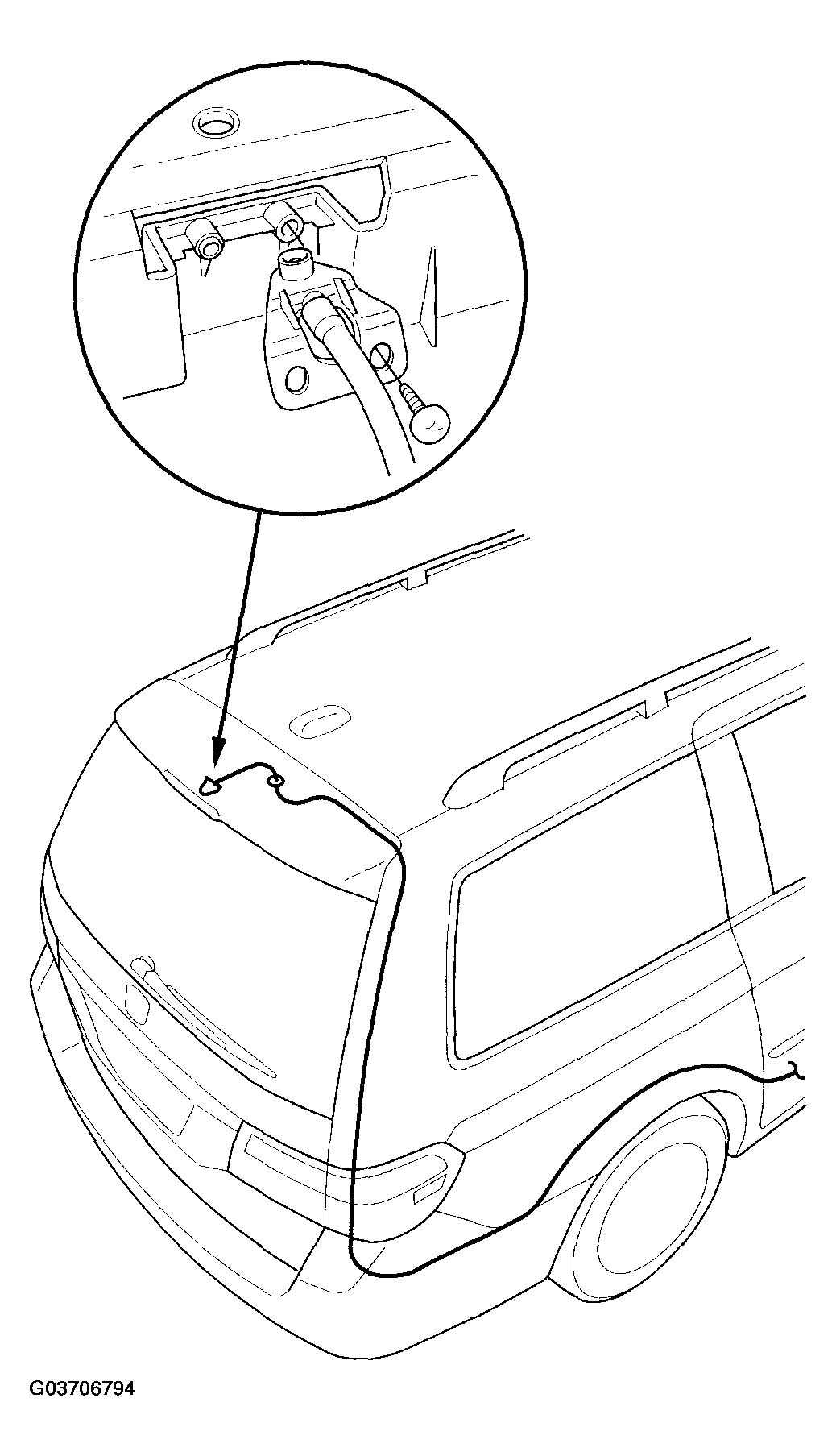

Fig 1: Replacing Washer Tube (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

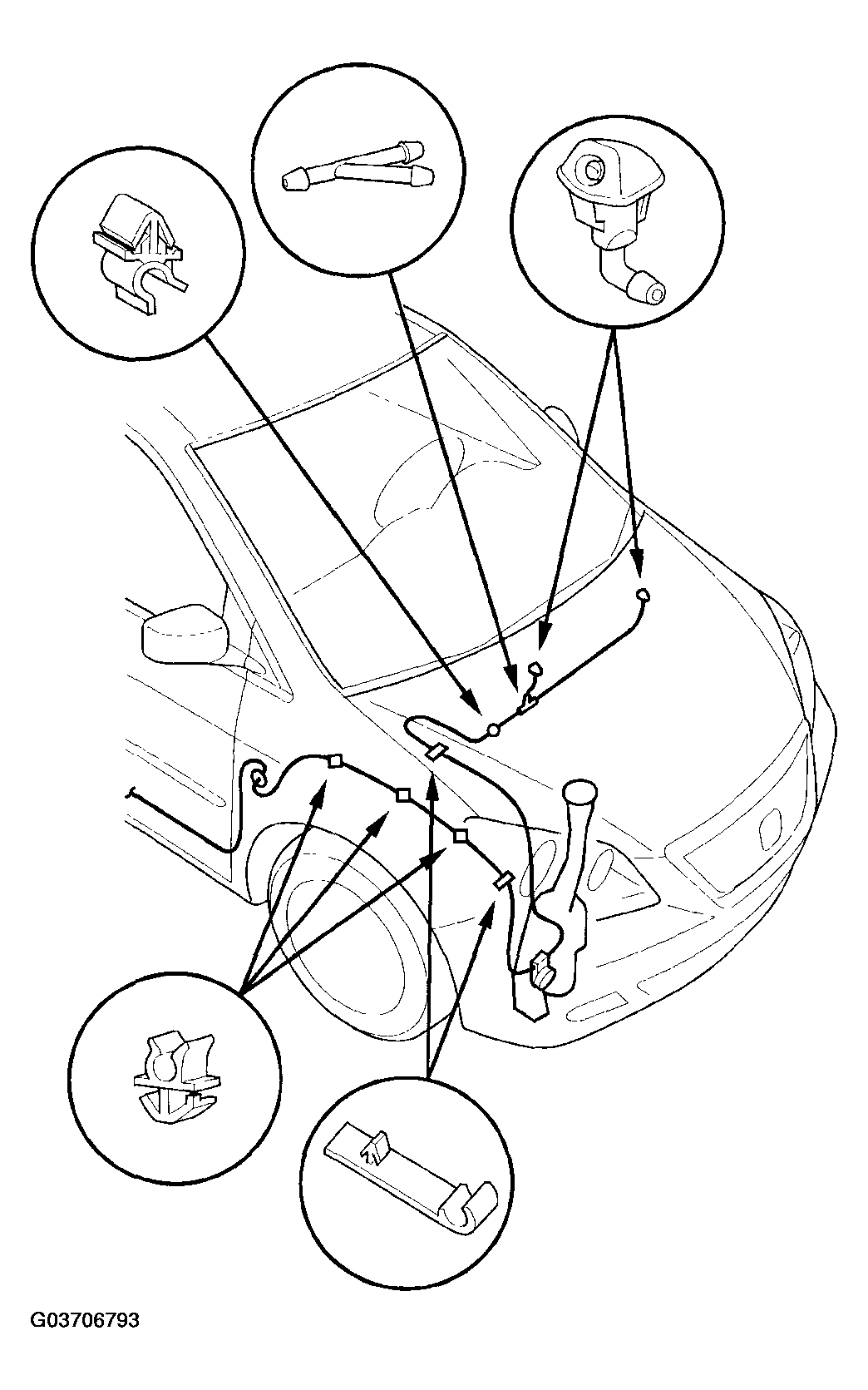

Fig 2: Replacing Washer Tube (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install in the reverse order of removal. Take care not to pinch the washer tubes. Check the washer operation.
