Washer Fluid Level Switch Test: Canada

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right inner fender (see FRONT INNER FENDER REPLACEMENT ).
  2. Disconnect the 2P connector (A) from the washer fluid level switch.

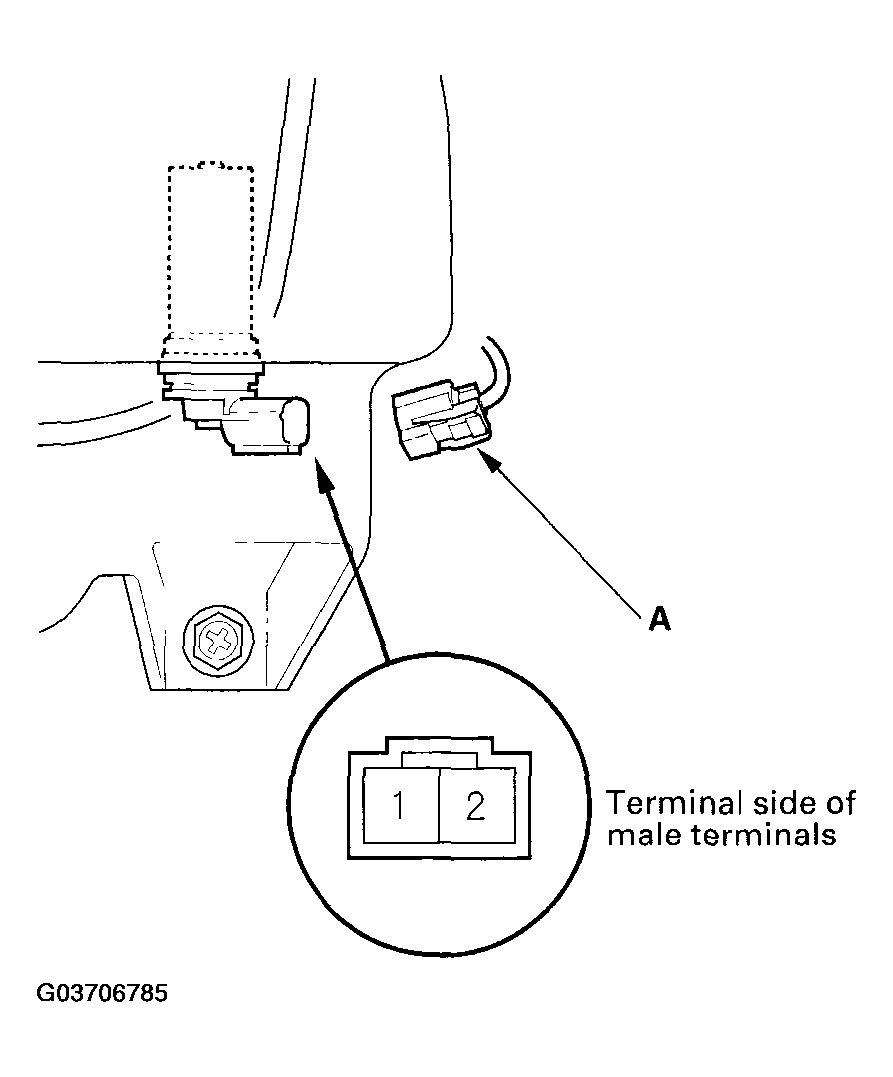

    Fig 1: Disconnecting 2P Connector From Washer Fluid Level Switch
    G03706785Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the washer fluid level switch from the washer reservoir.
    NOTE: Fluid may flow out of the opening.
  4. Check for continuity between the No. 1 and No. 2 terminals in each float position.
    • There should be continuity when the float is down.
    • There should be no continuity when the float is up.
  5. If the continuity is not as specified, replace the switch.
