Hazard Warning Switch Test

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Remove the dashboard center panel (see DASHBOARD CENTER PANEL REMOVAL/INSTALLATION ).
Disconnect the 6P connector (A) from the hazard warning switch/passenger's airbag cutoff indicator (B).

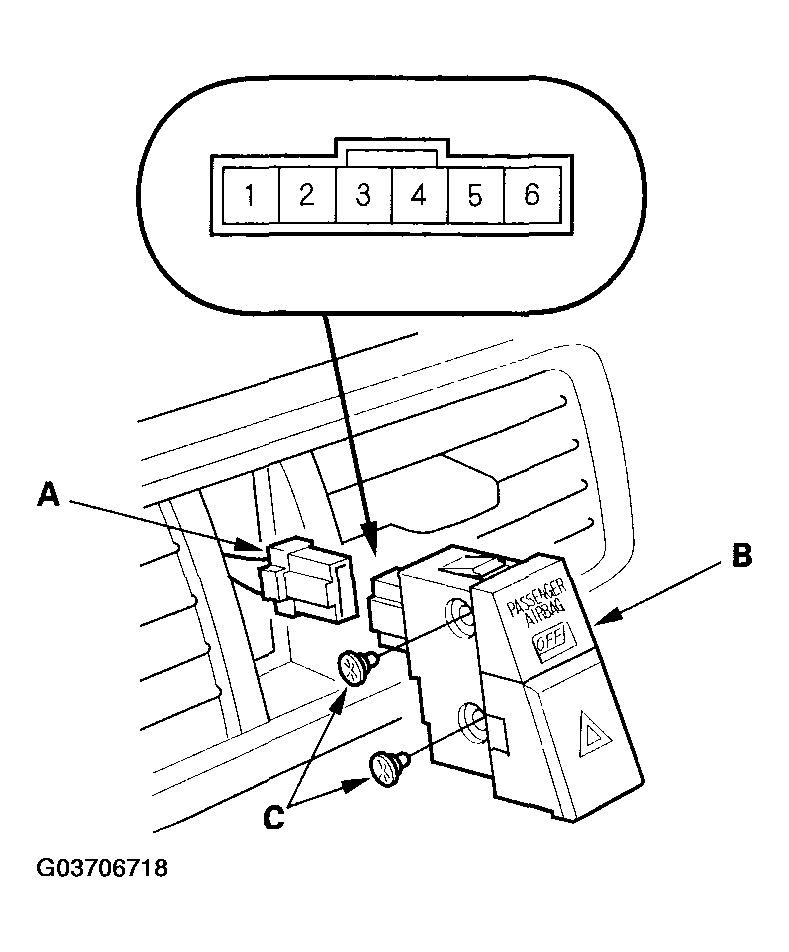

Fig 1: Disconnecting 6P Connector From Hazard Warning Switch/Passenger's Airbag Cutoff Indicator
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals in each switch position according to the table shown in Fig 2 .

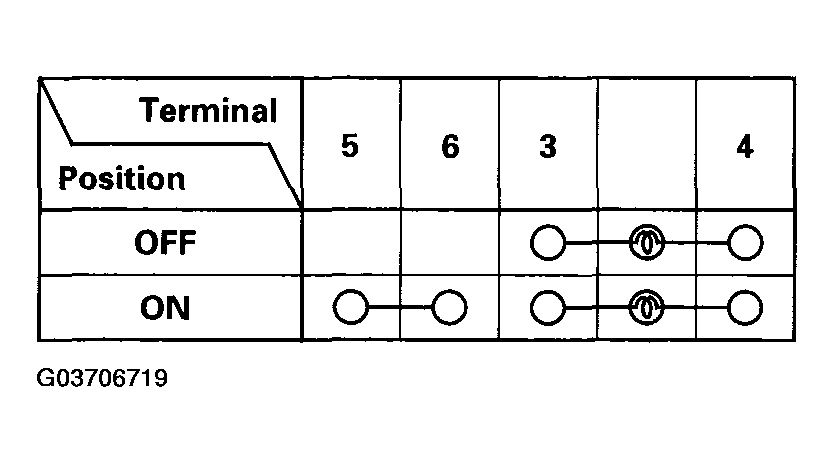

Fig 2: Checking Continuity Between Terminals In Each Switch Position Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the bulbs (C) or the switch.
