Without Power Tailgate

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the tailgate.
  2. Remove the tailgate trim panel (see TRIM REMOVAL/INSTALLATION - TAILGATE AREA ).
  3. Disconnect the 2P connector from the actuator.

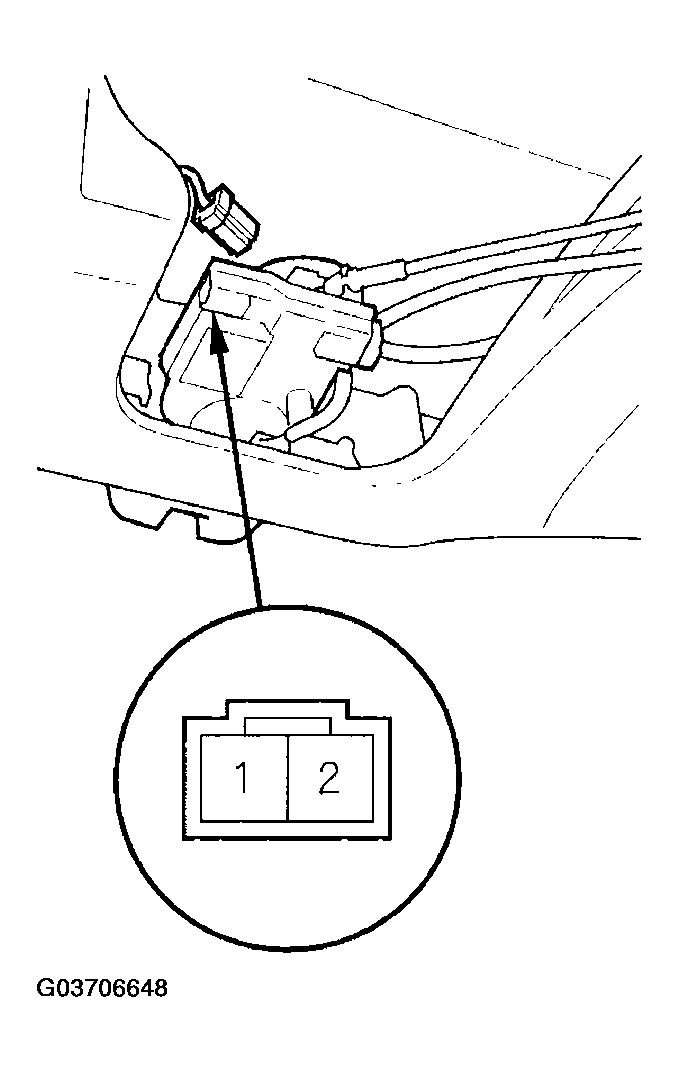

    Fig 1: Disconnecting 2P Connector From Actuator
    G03706648Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Check actuator operation by connecting power and ground according to the table shown in Fig 2. To prevent damage to the actuator, apply battery voltage only momentarily.

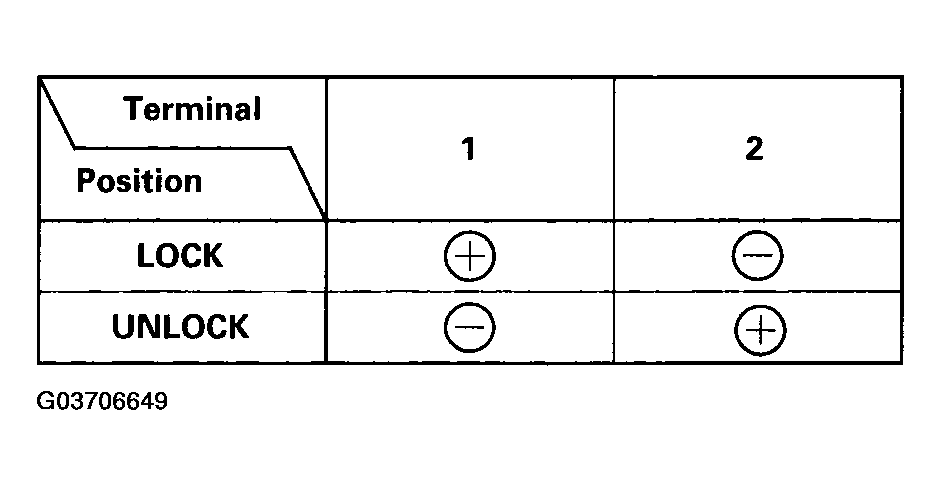

    Fig 2: Checking Actuator Operation By Connecting Power And Ground Table (Without Power Tailgate)
    G03706649Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. If the actuator does not operate as specified, replace it.
