Front Passenger's Door Lock Switch Test

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front passenger's power window switch (see PASSENGER'S WINDOW SWITCH TEST/REPLACEMENT ).
  2. Disconnect the 10P connector from the switch.

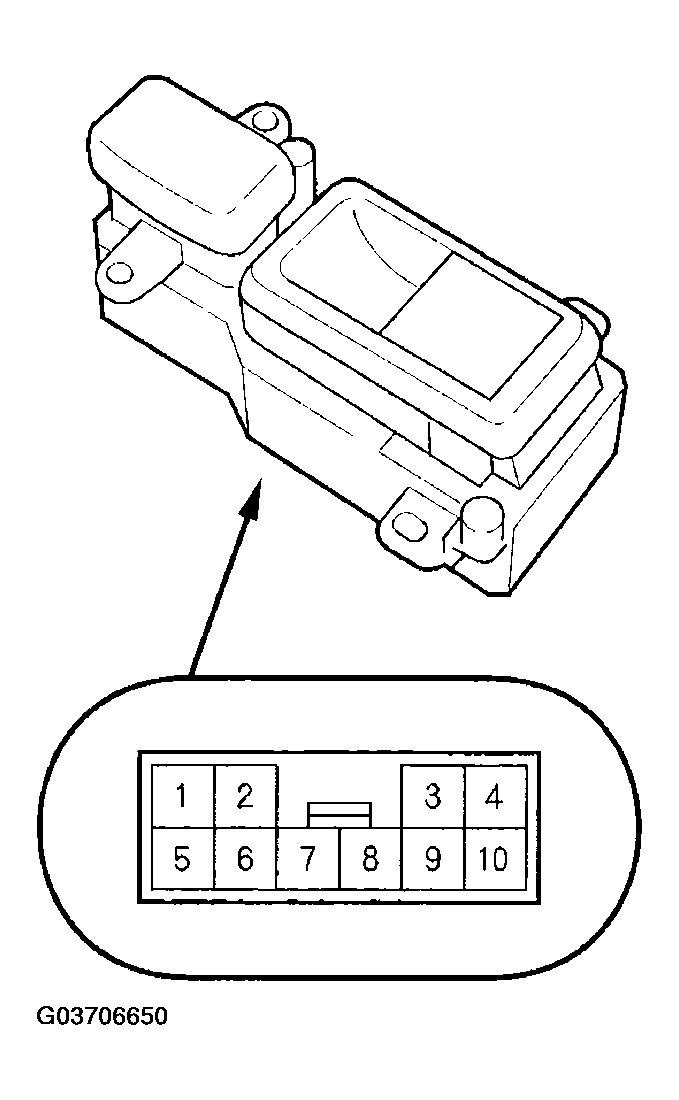

    Fig 1: Disconnecting 10P Connector From Switch
    G03706650Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check for continuity between the terminals.
    • There should be continuity between the No. 2 and No. 9 terminals when the door lock switch is in the LOCK position and no continuity when the switch is in the UNLOCK position.
    • There should be continuity between the No. 1 and No. 9 terminals when the door lock switch is in the UNLOCK position and no continuity when the switch is in the LOCK position.
  4. If the continuity is not as specified, replace the front passenger's power window assembly.
