CESS Articulated Harness Test

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the sliding door panel (see SLIDING DOOR PANEL REMOVAL/INSTALLATION ).
  2. Disconnect the A connector (16P) (A) and B connector (8P) (B) from the sliding door wire harness.

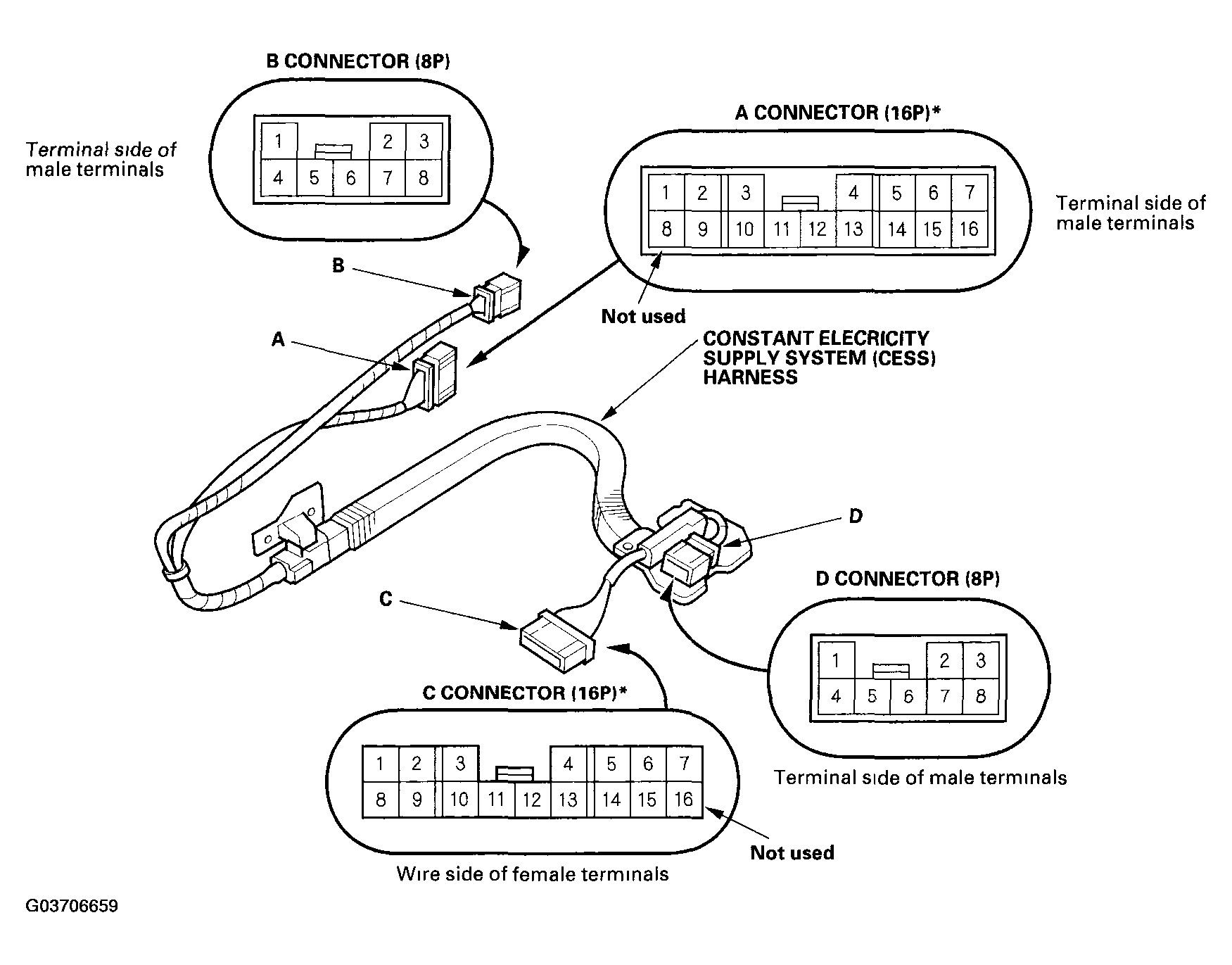

    Fig 1: Disconnecting A (16P) And B (8P) Connectors From Sliding Door Wire Harness
    G03706659Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the C connector (16P) (C) and D connector (8P) (D) from the floor wire harness.
    CONNECTORS SPECIFICATION

    A connector (16P)(1) C connector (16P)(1) B connector (8P)(1) D connector (8P)(1)
    A1 C4 B1 D1
    A2 C3 B2 D2
    A3 C7 B3 D3
    A4 C11 B4 D4
    A5 C13 B5 D5
    A6 C2 B6 D6
    A7 C9 B7 D7
    A8 (Not used) C16 (Not used) B8 D8
    A9 C1
    A10 C15
    A11 C14
    A12 C6
    A13 C12
    A14 C10
    A15 C5
    A16 C8
    (1) With power sliding door
  4. Check for continuity between the CESS articulated harness A connector (16P) and C connector (16P) terminals and B connector (8P) and D connector (8P) terminals.
