Rearview Mirror Replacement

Special Tools Required

KTC trim tool set SOJATP2014 *

* Available through the American Honda Tool and Equipment Program; call 888-424-6857

NOTE:

Take care not to scratch the cover and mirror bracket.
Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.

Remove the rearview mirror as shown.
Install the rearview mirror in the reverse order of removal.

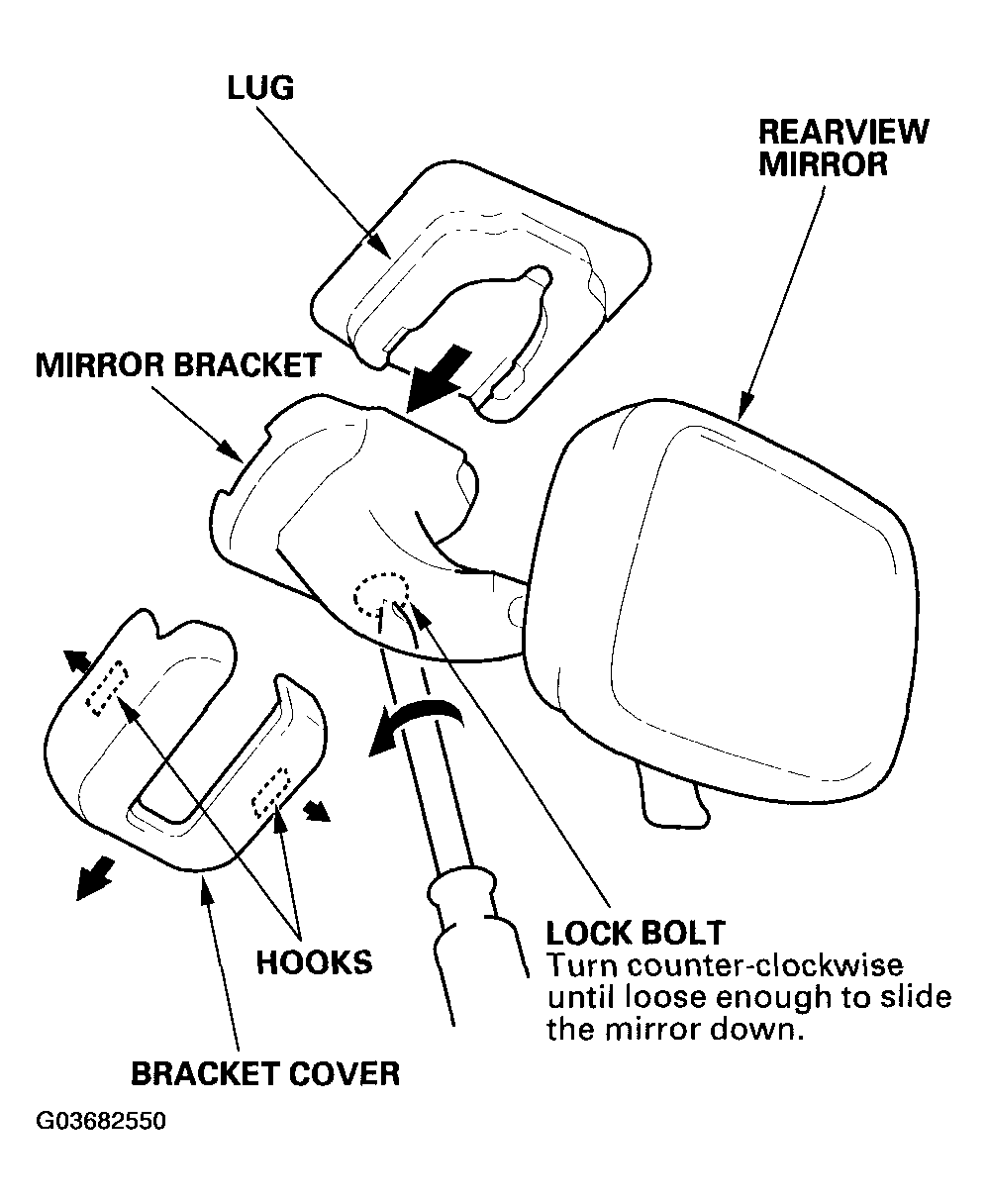

Fig 1: Removing Rearview Mirror
Courtesy of AMERICAN HONDA MOTOR CO., INC.
