Planetary Carrier Bearing Replacement

Special Tools Required

• Driver 07749-0010000
• Attachment, 32 x 35 mm 07746-0010100

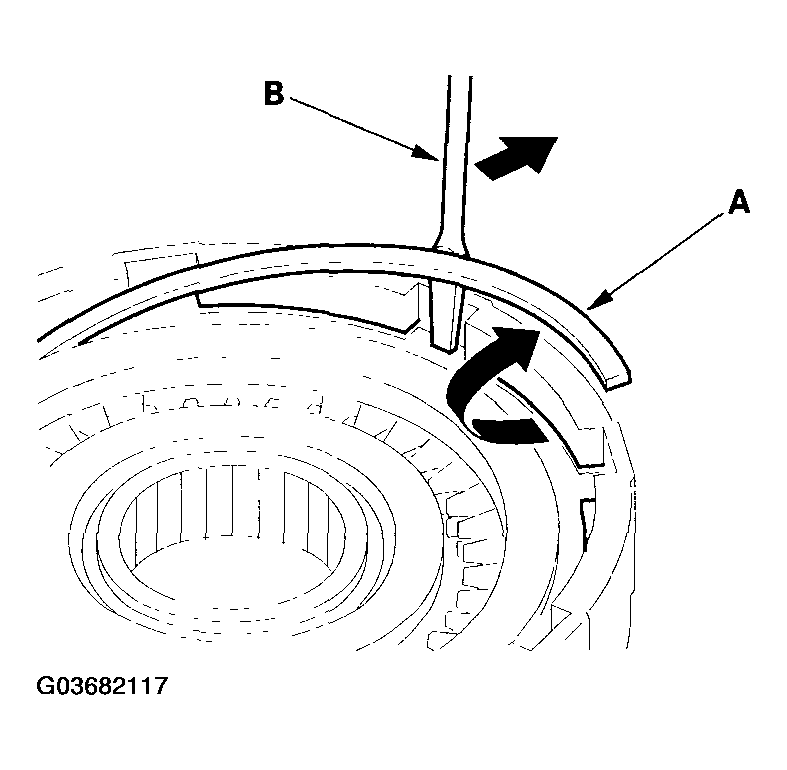

1. Remove the snap ring securing the planetary carrier bearing.
   Fig 1: Removing Planetary Carrier Bearing Snap Ring

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

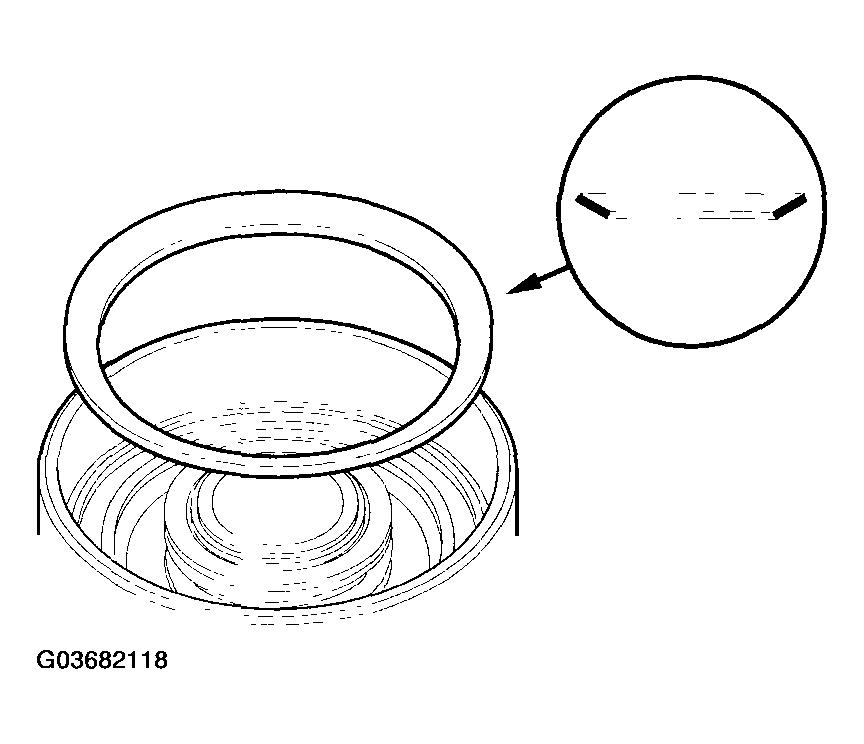

2. Remove the planetary carrier bearing.
   Fig 2: Removing Planetary Carrier Bearing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

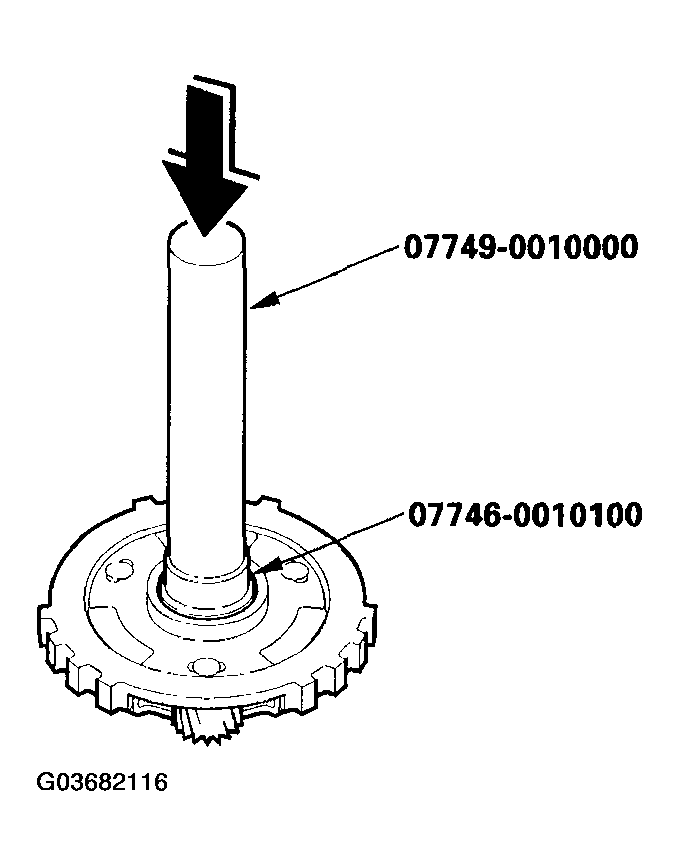

3. Install the new bearing with the special tools.
   Fig 3: Installing Bearing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Install the snap ring to secure the bearing on the planetary carrier.
