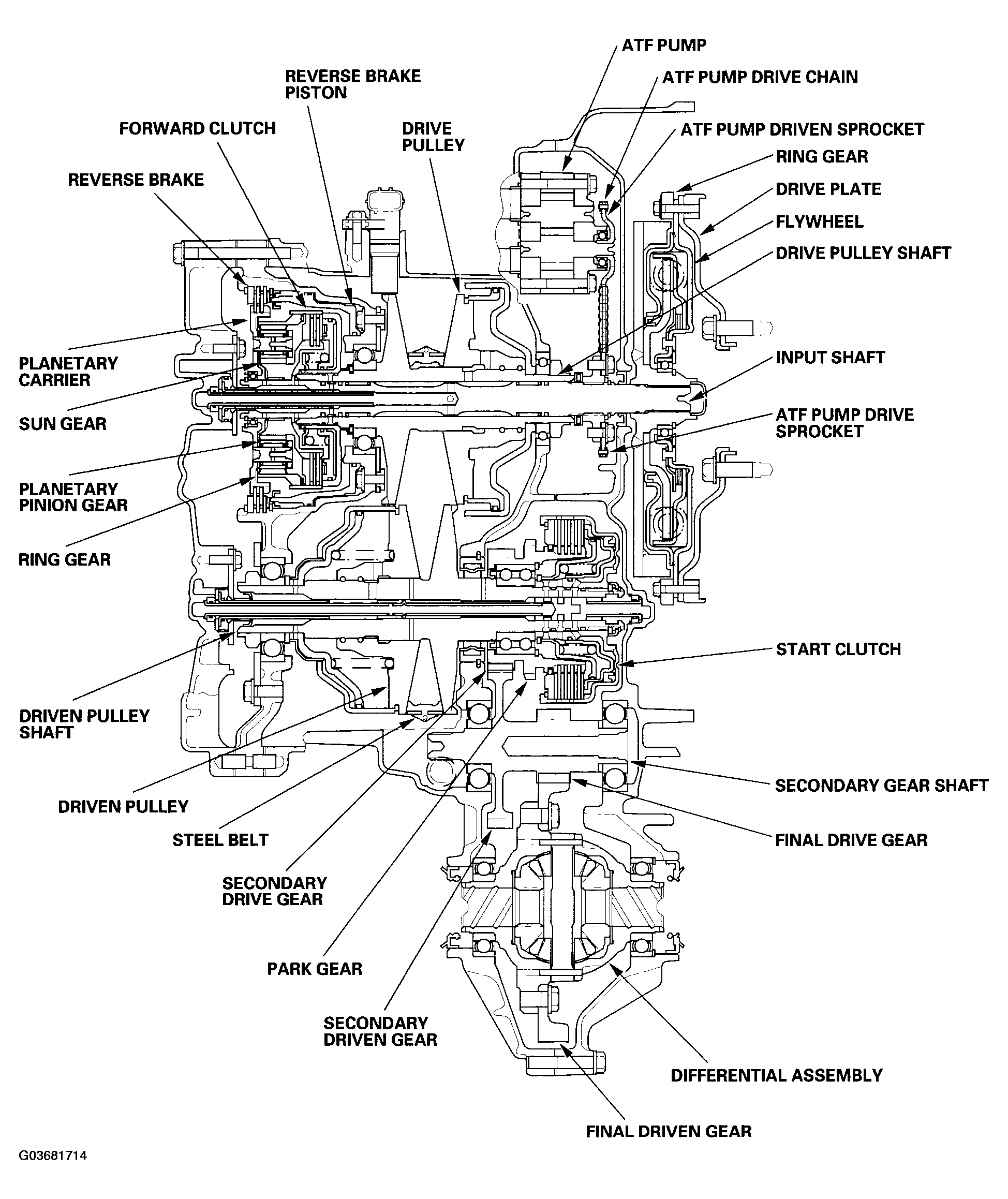

Home >> Honda >> 2002 >> Insight Automatic CVT >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Continuously Variable Automatic Transmission (CVT) >> CVT >> System Description >> Power Flow >> Transmission Cutaway View
