Manual Valve Body

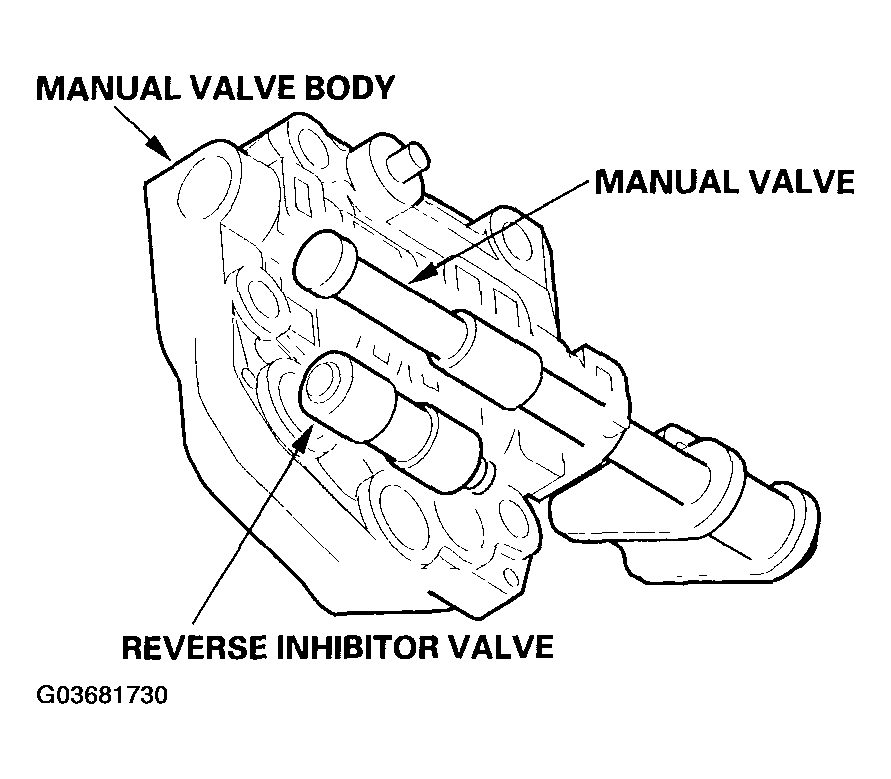

The manual valve body contains the manual valve and the reverse inhibitor valve. The manual valve body is bolted on the intermediate housing.
- Manual Valve
The manual valve mechanically uncovers/covers the fluid passage according to the shift lever position.
- Reverse Inhibitor Valve
- The reverse inhibitor valve is controlled by reverse inhibitor (Rl) pressure from the reverse inhibitor solenoid. The reverse inhibitor valve intercepts the hydraulic pressure flowing to the reverse brake while the vehicle is moving forward at speeds over about 6 mph (10 km/h).
