CVT Start Clutch Pressure Control Valve

The CVT start clutch pressure control valve consists of the start clutch pressure control valve and the solenoid. The CVT start clutch pressure control valve controls start clutch engagement according to the throttle opening.

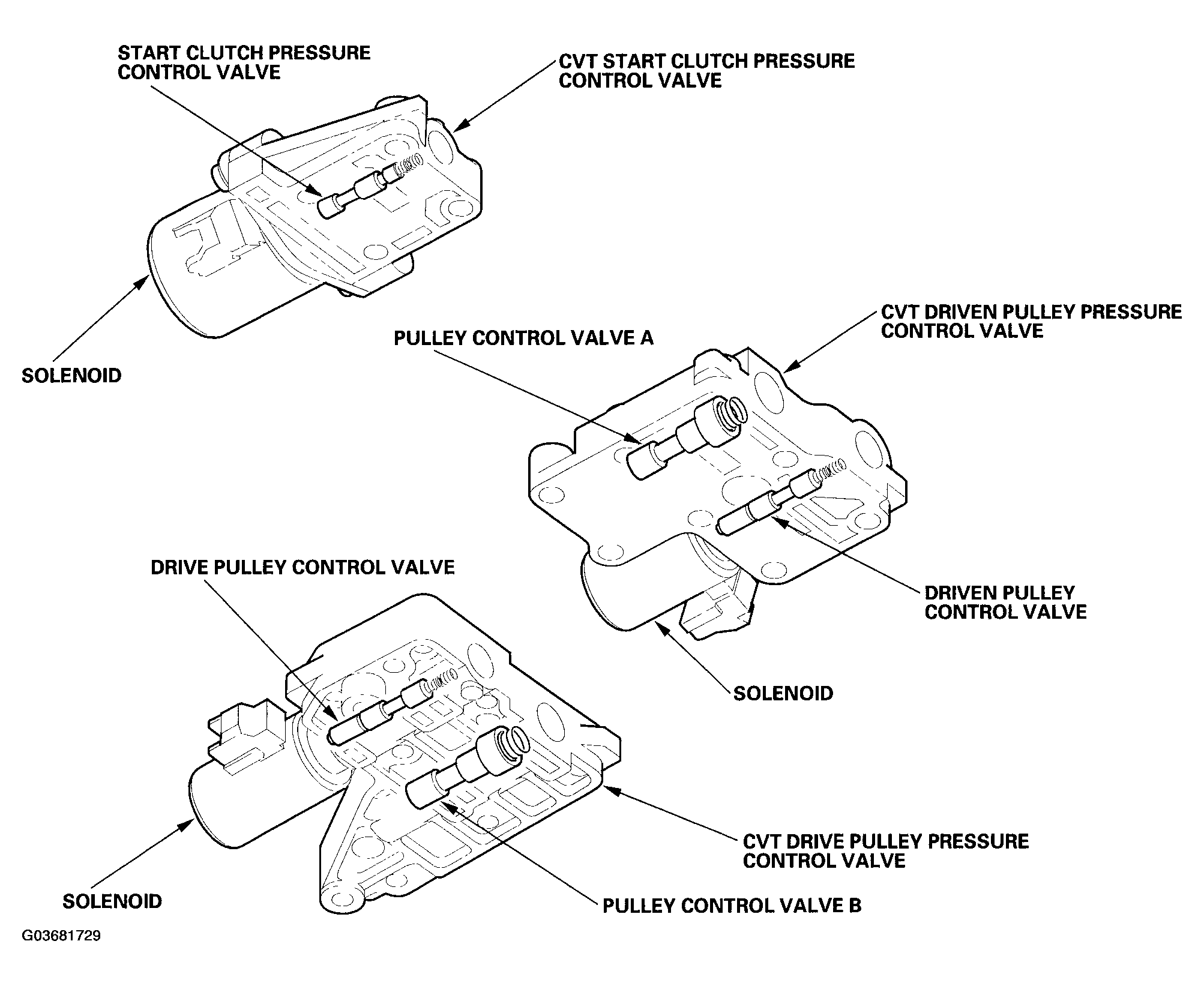

Fig 1: Identifying CVT Start Clutch Pressure Control Valve Components

Courtesy of AMERICAN HONDA MOTOR CO., INC.
