Solenoid Valve Test

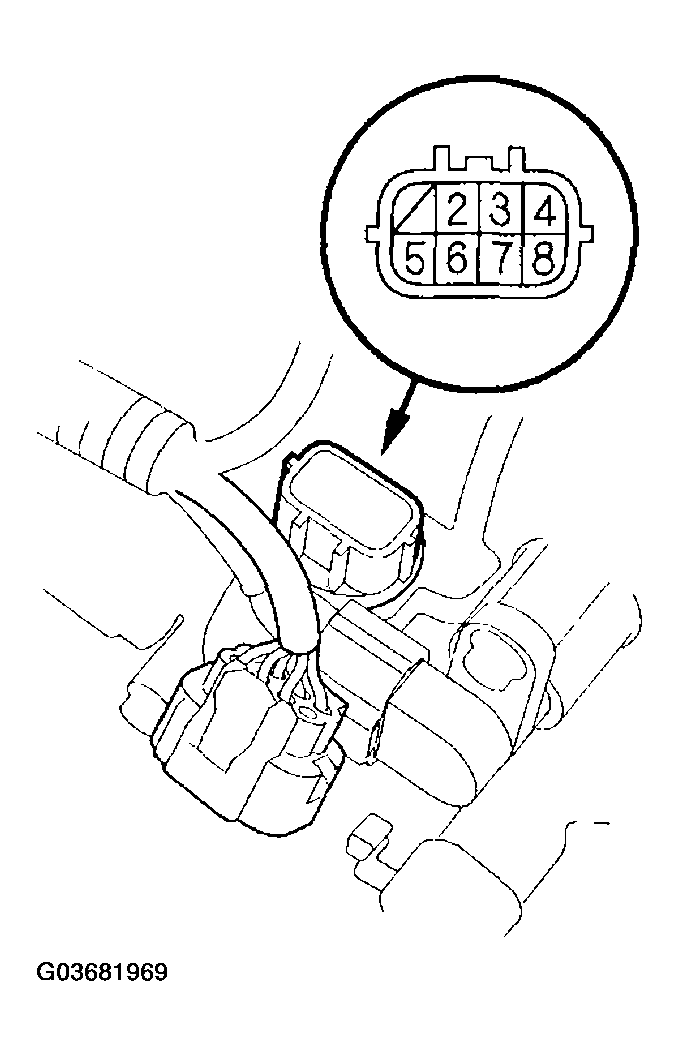

- Disconnect the solenoid harness connector (8P).
- Measure CVT drive pulley pressure control valve assembly resistance between solenoid harness connector terminals No. 3 and No. 7.
Standard: 3.8-6.8 Ω
- Measure CVT driven pulley pressure control valve assembly resistance between terminals No. 2 and No. 6.
Standard: 3.8-6.8 Ω
- Measure CVT start clutch pressure control valve assembly resistance between terminals No. 4 and No. 8.
Standard: 3.8-6.8 Ω
- Measure the inhibitor solenoid resistance between terminal No. 5 and body ground.
Standard: 11.7-21.0
- Replace the lower valve body assembly, if the measurement of any solenoid is out of standard.
- If all of the resistances are within the standard, a clicking sound should be heard when connecting the battery terminals to the solenoid harness connector terminals.
- CVT drive pulley pressure control valve assembly
- No. 3 to battery positive terminal
- No. 7 to battery negative terminal
- CVT driven pulley pressure control valve assembly
- No. 2 to battery positive terminal
- No. 6 to battery negative terminal
- CVT start clutch pressure control valve assembly
- No. 4 to battery positive terminal
- No. 8 to battery negative terminal
- Inhibitor solenoid
- No.5 to battery positive terminal and body ground to negative terminal
- If no clicking sound is heard, remove the lower valve body assembly, and check the solenoid.
