2004-2006 Models

  1. Remove the lower valve body (see LOWER VALVE BODY ASSEMBLY REPLACEMENT ).
  2. Disconnect the inhibitor solenoid connector (A).

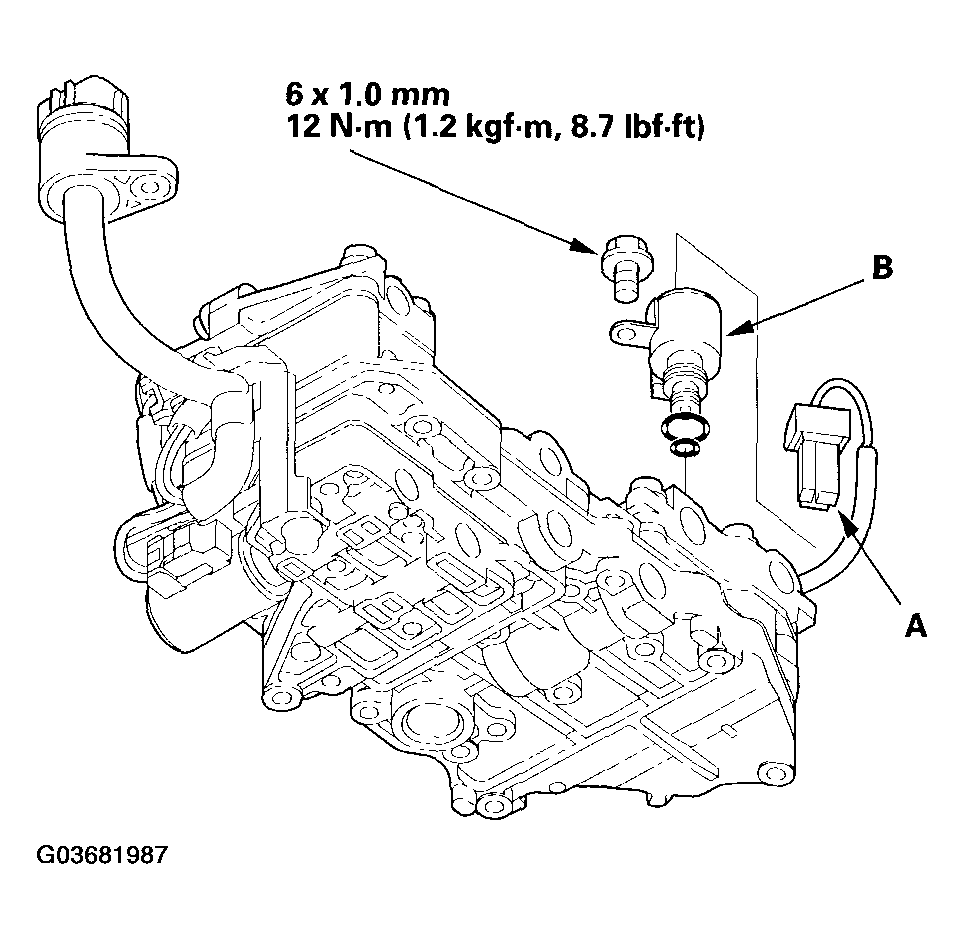

    Fig 1: Disconnecting Inhibitor Solenoid Connectors
    G03681987Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the inhibitor solenoid (B).
  4. Install the new inhibitor solenoid on the CVT pulley pressure control valve.
  5. Connect the inhibitor solenoid connector.
  6. Install the lower valve body (see LOWER VALVE BODY ASSEMBLY REPLACEMENT ).
