TCM Reset Procedures
- Get the audio (and navigation) anti-theft codes, and write down the presets.
- Turn the ignition switch OFF.
- Use one of these methods to reset the TCM memory:
- Use the Scan Tool or the HDS, then go to step 7.

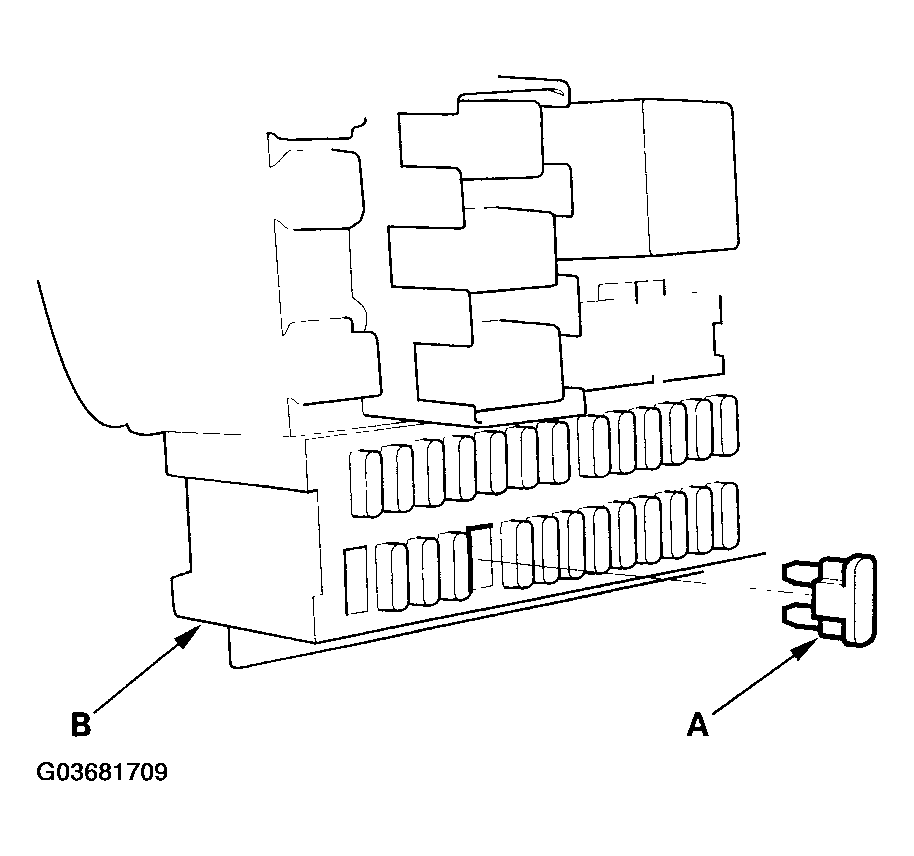

- Remove the No. 18 (7.5 A) fuse (A) in the under-dash fuse/relay box (B) for more than 10 seconds. Then go to step 3.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Remove the No. 15 (40 A) fuse from the under-hood fuse/relay box.
- If the IMA battery level gauge (BAT) displays no segments, start the engine, and hold it between 3,500 RPM and 4,000 RPM without load (in the P or N position) until the BAT displays at least three segments.
- Reinstall the No. 15 (40 A) fuse to the under-hood fuse/relay box.
- Do the ECM idle learn procedure (see ECM IDLE LEARN PROCEDURE
).
- Do the start clutch calibration procedure (see
START CLUTCH CALIBRATION PROCEDURES ).
