Drive Plate Removal and Installation

  1. Remove the transmission assembly (see TRANSMISSION REMOVAL ).
  2. Remove the drive plate (A) and washer (B) from the engine crankshaft.

    2001-2003 Models:

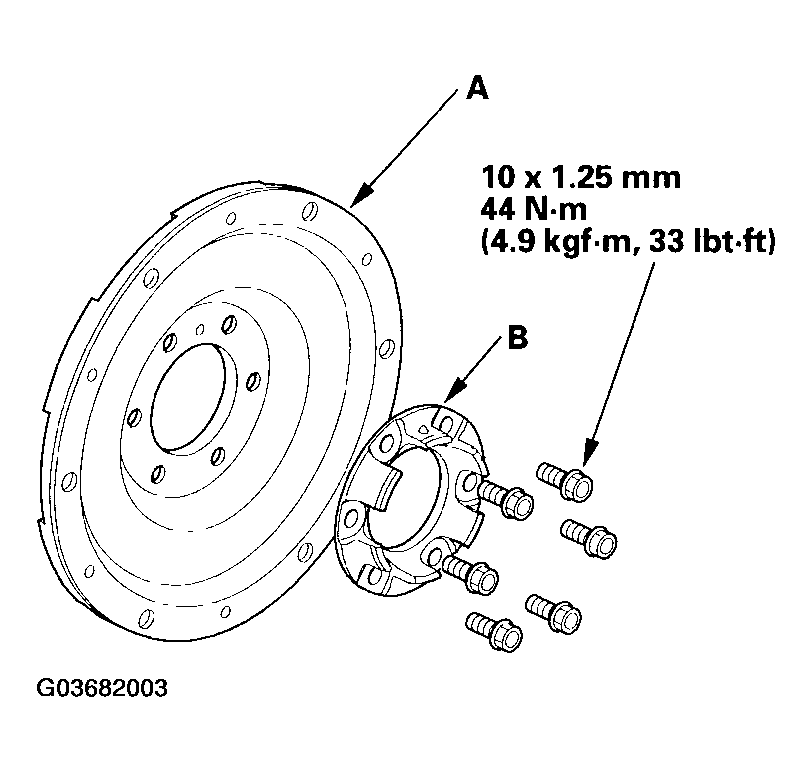

    Fig 1: Identifying Loosening Torque Of Drive Plate Bolts (2001-2003 Models)
    G03682003Courtesy of AMERICAN HONDA MOTOR CO., INC.

    2004-2006 Models:

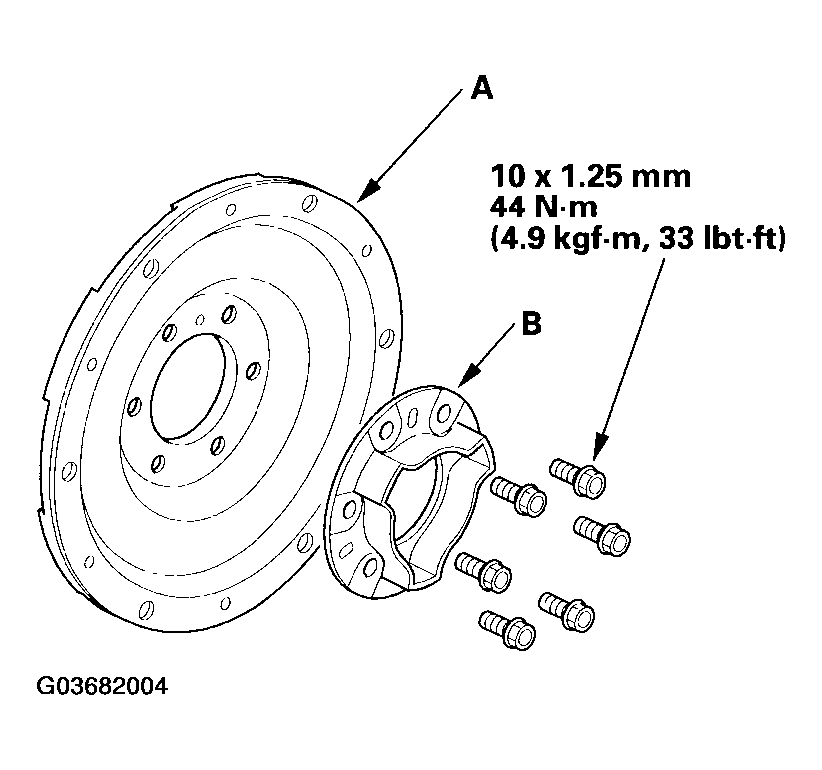

    Fig 2: Identifying Loosening Torque Of Drive Plate Bolts (2004-2006 Models)
    G03682004Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the drive plate, and install the washer in the direction shown on the engine crankshaft.
  4. Tighten the six bolts in a crisscross pattern.
  5. Install the transmission assembly (see TRANSMISSION INSTALLATION ).
