2001-2004 Models

NOTE:

Record all freeze data and review General Troubleshooting Information (see GENERAL TROUBLESHOOTING INFORMATION ) before you troubleshoot.
This code is caused by an electrical circuit problem and cannot be caused by a mechanical problem in the transmission.

Apply the parking brake, and block both rear wheels securely.
Raise the front of the vehicle, and make sure it is securely supported.
Shift to the N position.
Disconnect TCM connectors A (26P) and B (22P).
Turn the ignition switch ON (II).
Measure the voltage between TCM connector terminals B5 and A4 while rotating the front wheel slowly by hand.

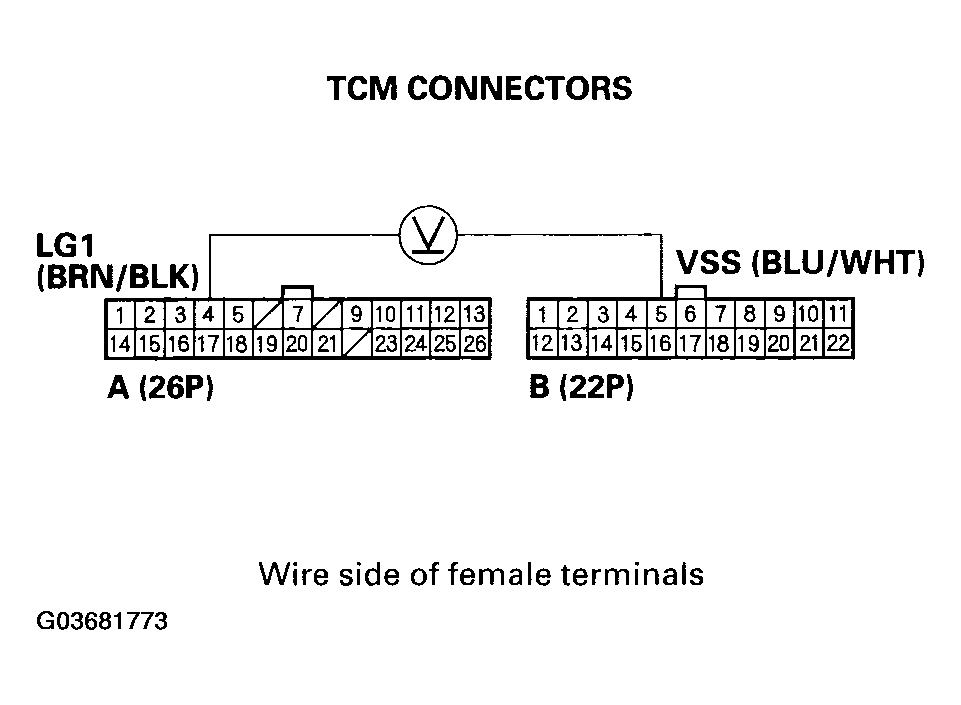

Fig 1: Measuring Voltage Between TCM Connector Terminals B5 And A4
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there 0 V or about 5 V?
1. YES -Check for loose terminal fit in the TCM connectors. If necessary, substitute a known-good TCM (see HOW TO TROUBLESHOOT CIRCUIT AT THE TCM ) and recheck.
2. NO -Check for an open or a short in the wire between TCM connector terminal B5 and the vehicle speed sensor (VSS). If the wire is OK, replace the VSS.
