Creep Aid System Solenoid Valve Test

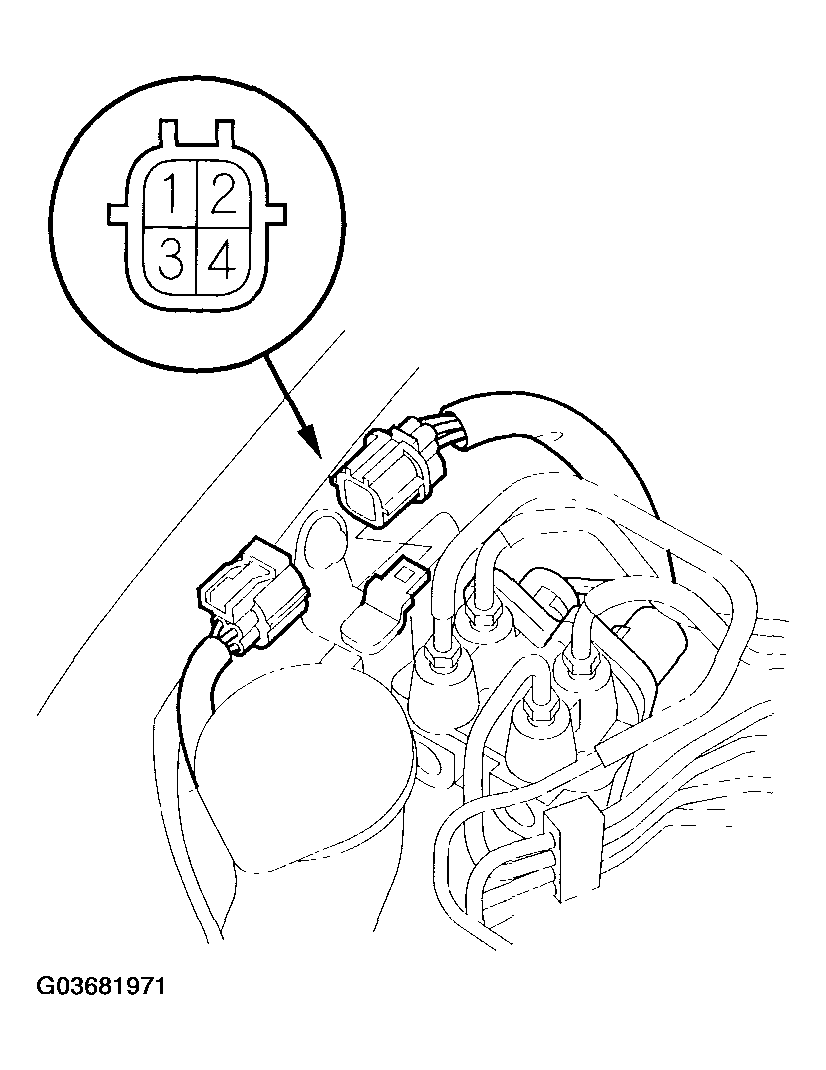

- Disconnect the connector from the creep aid system solenoid valves A and B.
- Measure the solenoid valve A resistance between the solenoid valve connector terminals No. 2 and No. 4, and measure the solenoid valve B resistance between terminals No. 1 and No. 3.
Standard: 8-24 Ω
- If the resistance of either solenoid valve is out of the standard, replace the creep aid system solenoid valves A and B.
- If the resistance is within the standard, connect the battery positive terminal to solenoid valve connector terminal No. 1, and connect the battery negative terminal to terminal No. 3. A clicking sound should be heard.
Connect the battery positive terminal to terminal No. 2, and connect the battery negative terminal to terminal No. 4. A clicking sound should be heard.
- If no clicking sound is heard, replace creep aid system solenoid valves A and B.
