ATF Cooler Hose Replacement

  1. Lubricate hose and line joints with CVTF, then install the ATF cooler hoses (A) to the ATF cooler lines (B).

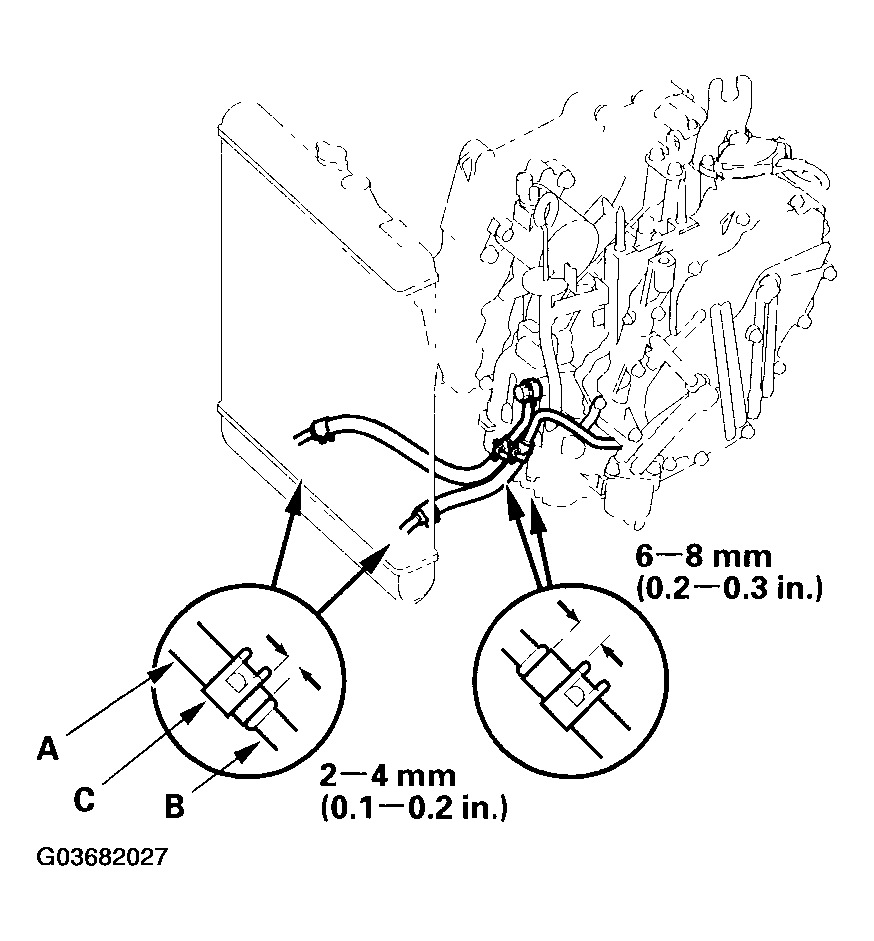

    Fig 1: Installing ATF Cooler Hoses To ATF Cooler Lines
    G03682027Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Secure the ATF cooler hoses with the clips (C) in the position shown.
