Carrier Bearing Replacement

Special Tools Required

• Driver, 40 mm I.D. 07746-0030100
• Attachment 35 mm I.D. 07746-0030400

1. Remove the bearings (A) with a commercially available bearing puller (B) and shaft protector (C).

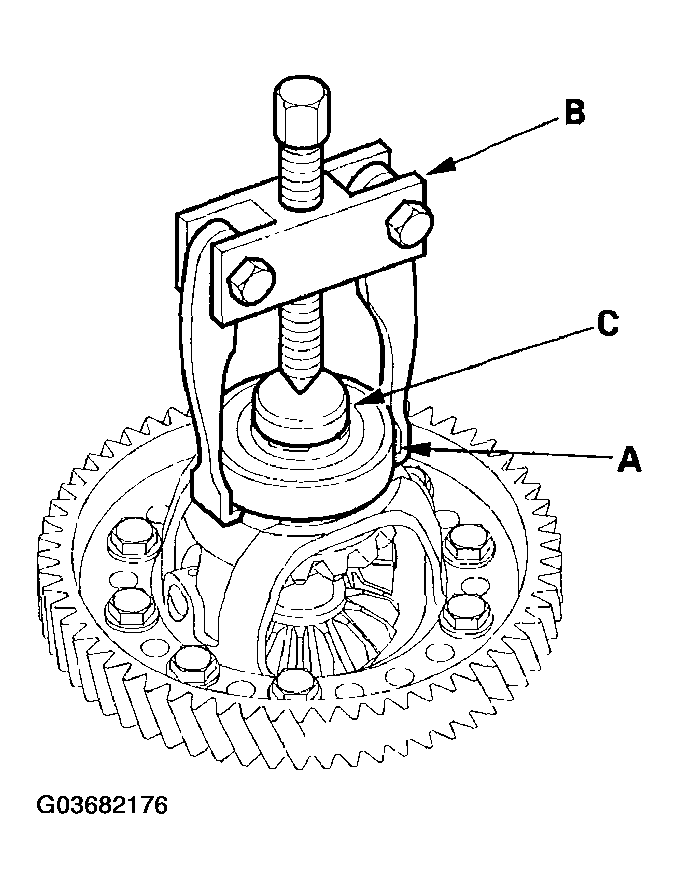

   Fig 1: Removing Carrier Bearing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Install the bearings with the special tools and a press. Press the bearing on until it bottoms.

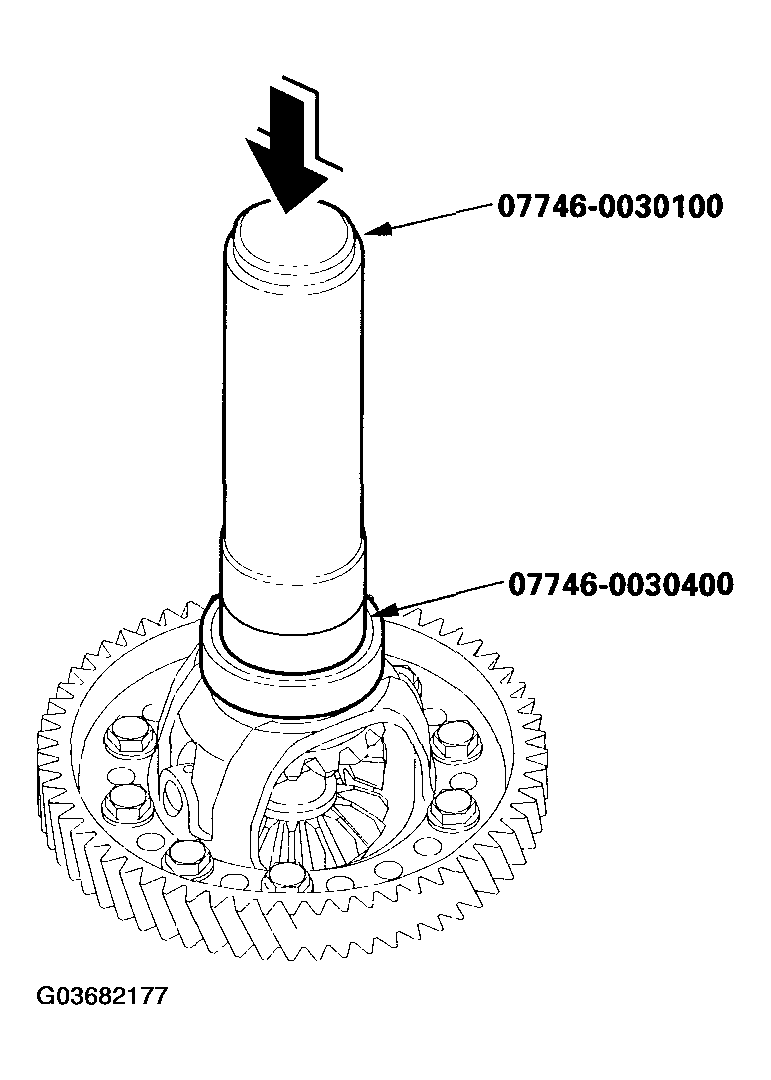

   Fig 2: Installing Carrier Bearing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
