Emblem Replacement

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: When using dental floss to cut the emblem adhesive, take care not to scratch the body.

To remove the front "H" emblem, remove the front grille (see FRONT GRILLE COVER REPLACEMENT ).
Clean the bonding surface with a sponge dampened in alcohol. After cleaning, keep oil, grease, and water from getting on the surface.
Apply the emblems where shown in Fig 1 & Fig 2 .
After installing the front "H" emblem, reinstall the front grille.

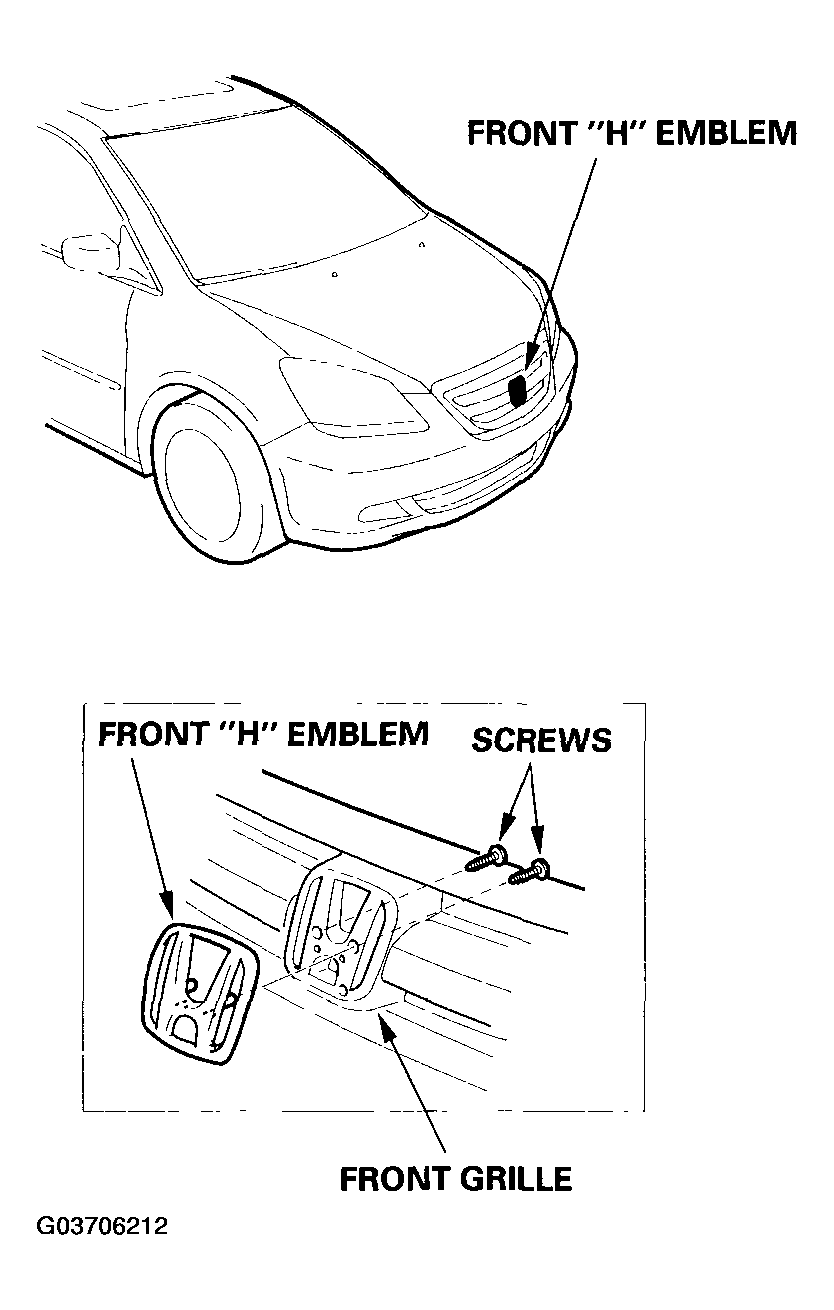

Fig 1: Replacing Emblem (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

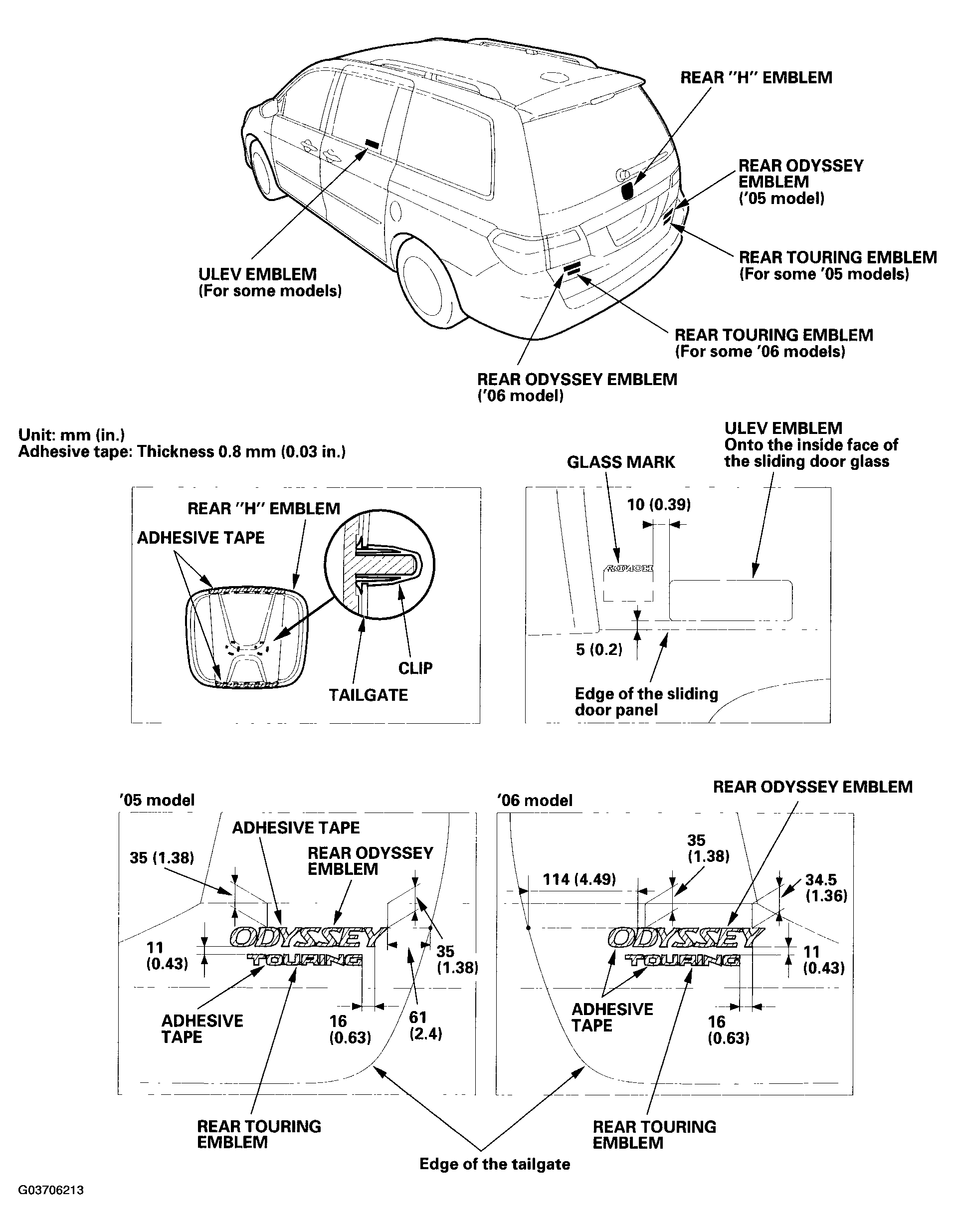

Fig 2: Replacing Emblem (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
