Section 83 (Hood): Adjustment
WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
- Loosen each bolt slightly.

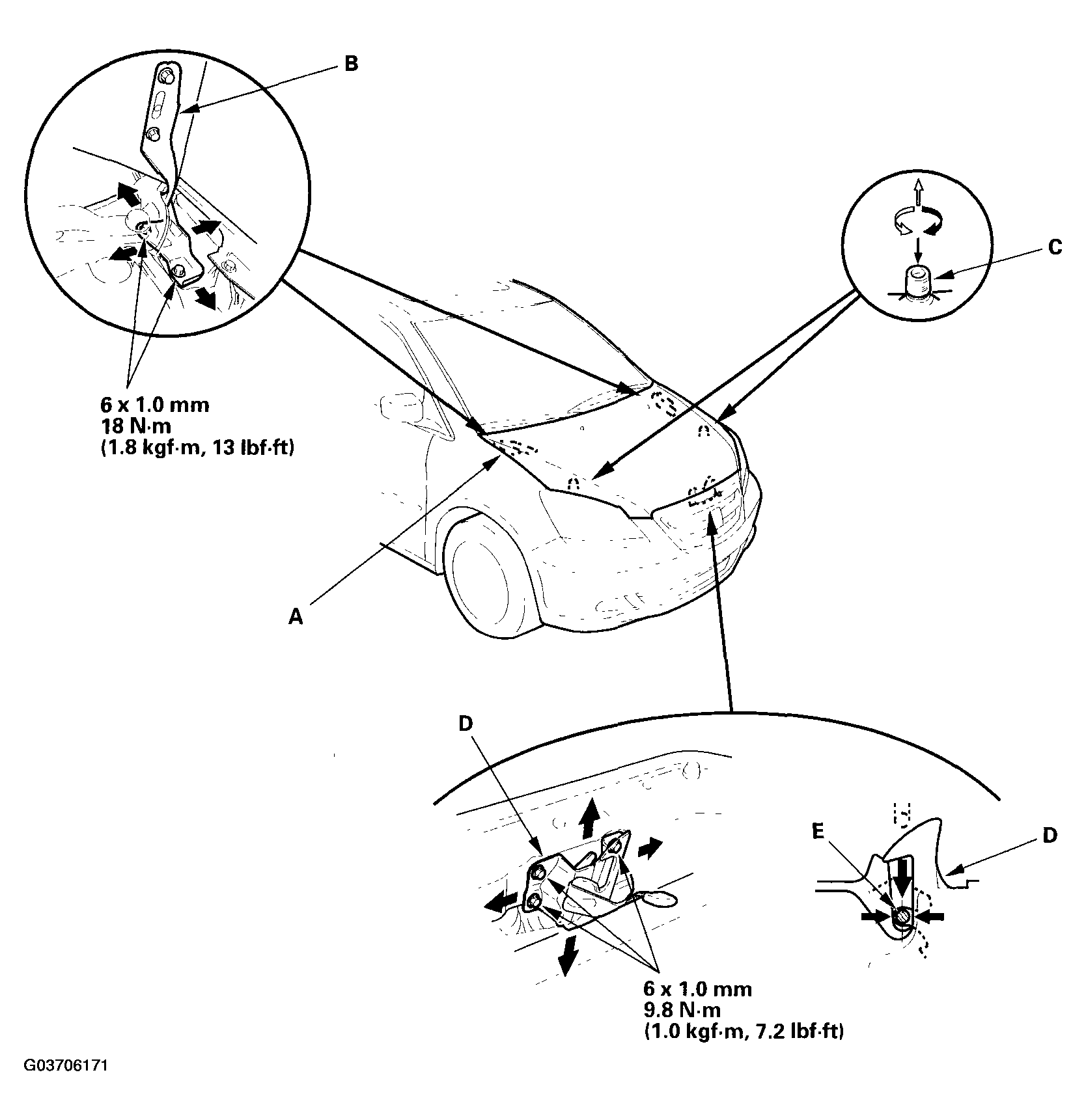

- Adjust the hood (A) alignment in this sequence:
- Adjust the hood right and left, as well as forward and rearward, by using the elongated holes on the hood hinges (B).
- Turn the hood edge cushions (C), as necessary, to make the hood fit flush with the body at the front and side edges.
- Adjust the hood latch (D) to obtain the proper height at the forward edge, and move the hood latch right or left until the striker (E) is centered in the hood latch.
- Tighten each bolt securely.
- Check that the hood opens properly and locks securely.
- For some models, check that the security system operates properly with the hood opened and closed.
- Apply touch-up paint to the hinge mounting bolts and around the hinges.

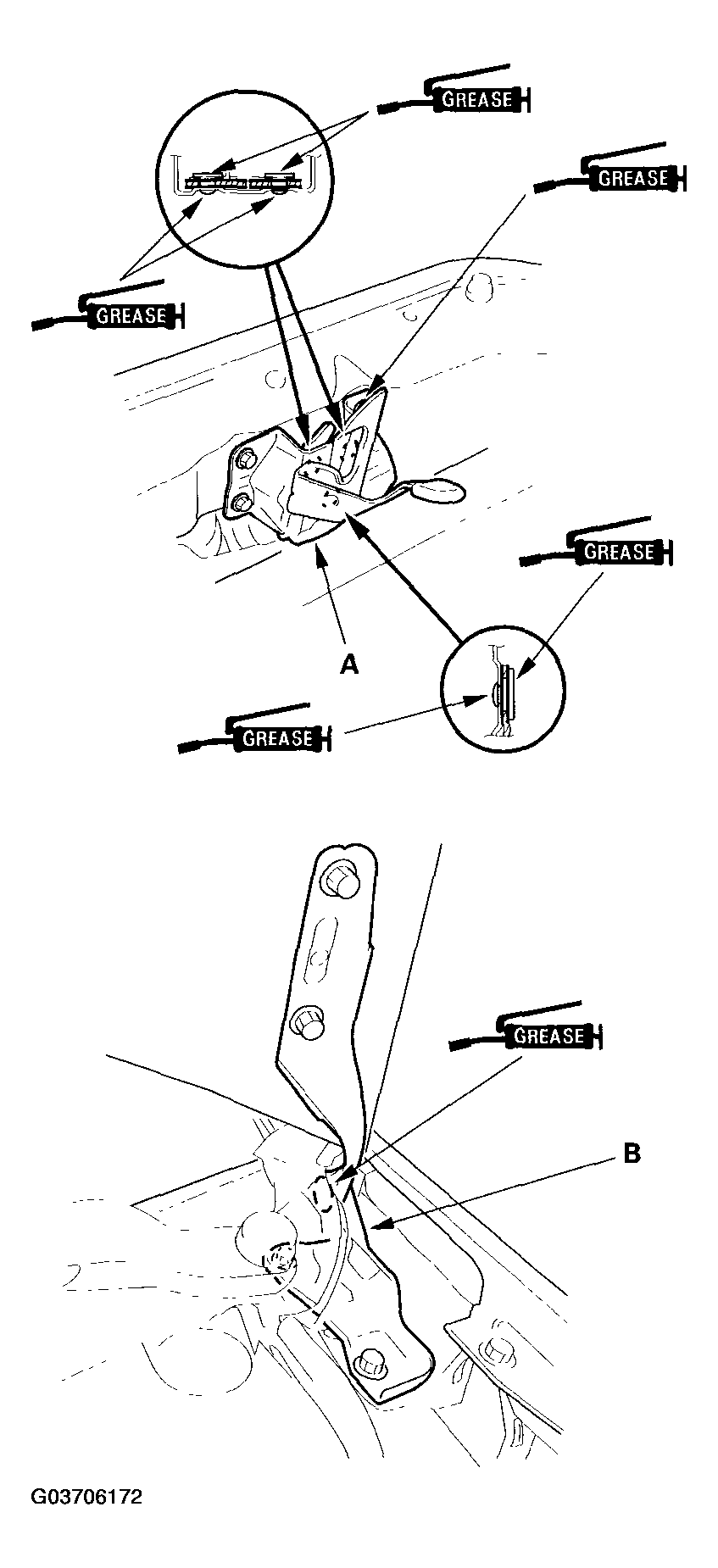

- Apply multipurpose grease to the hood latch (A) and hood hinge (B) as indicated by the arrows shown in Fig 2 .
