Sliding Door Subseal Replacement

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Detach the clip, then remove the subseal (A). Take care not to scratch the body.

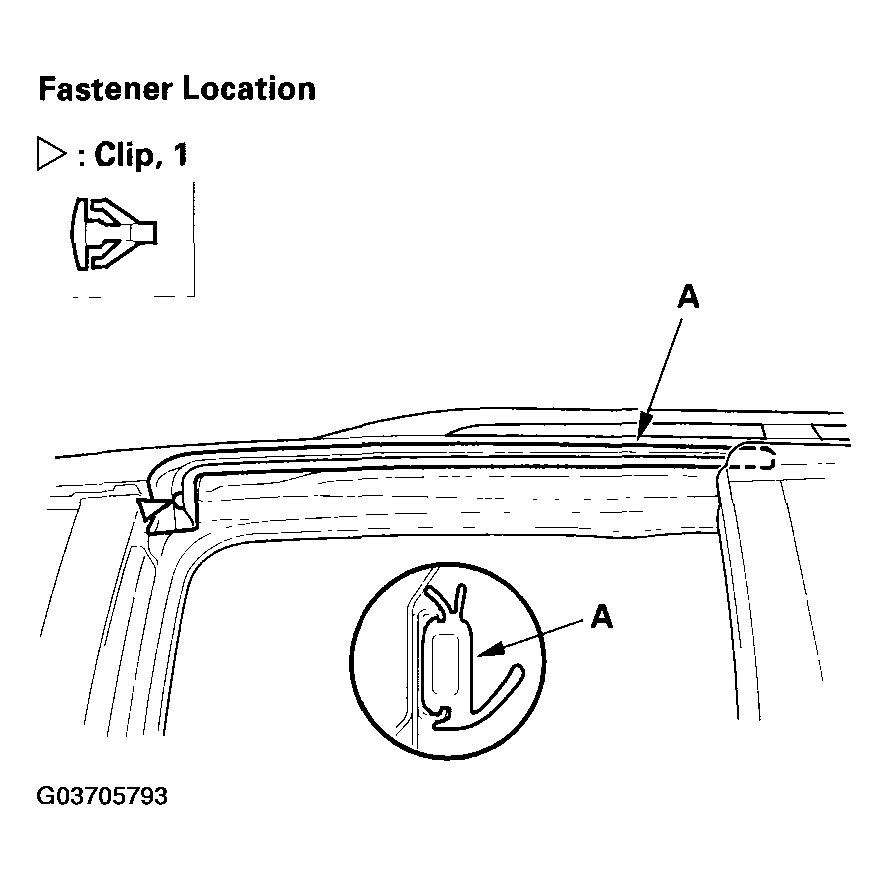

    Fig 1: Removing Subseal
    G03705793Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the subseal in the reverse order of removal, and replace the clip if it is damaged.
