Rear Controller and Screen Removal/Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Honda Odyssey, 2003 Honda Odyssey, 2002 Honda Odyssey, 2001 Honda Odyssey, and 2000 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the headliner and display cover.

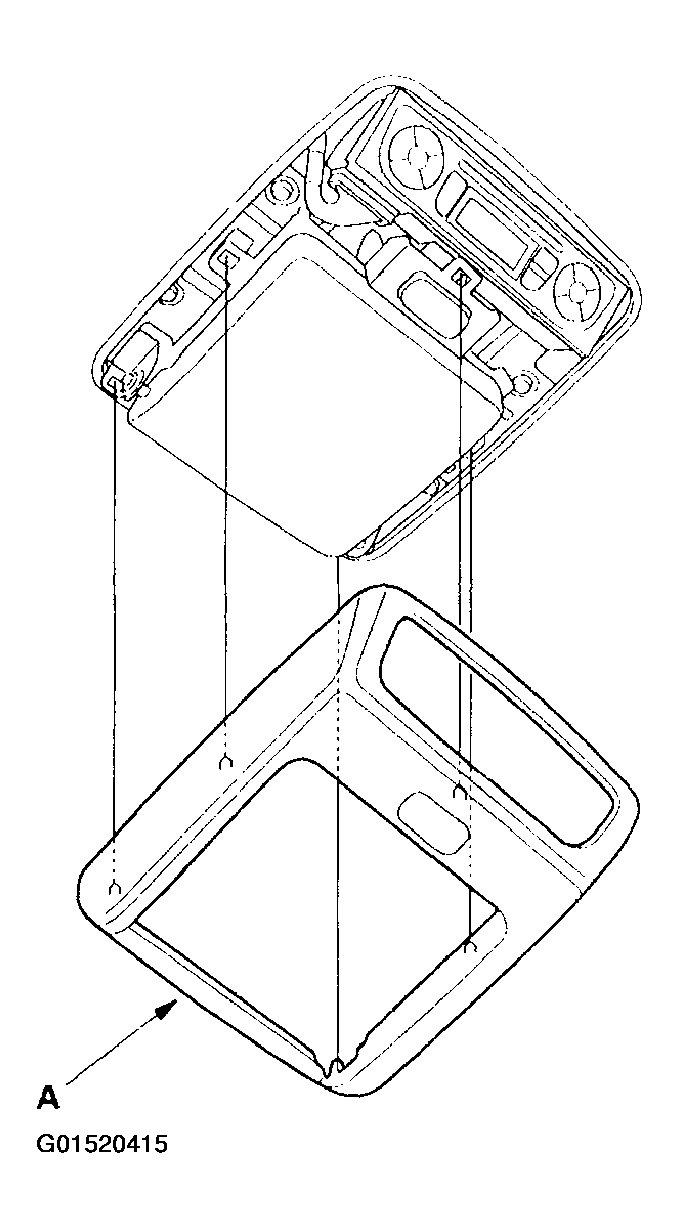

Remove the display cover (A).

Fig 1: Removing Display Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.

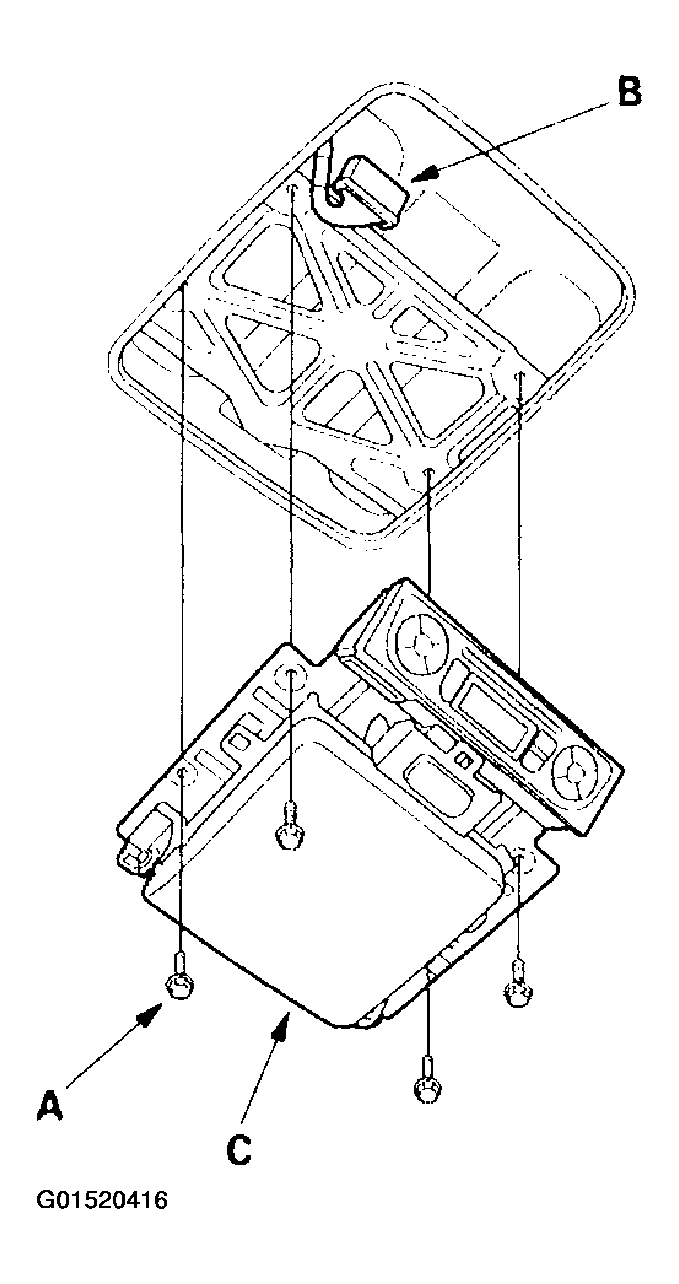

Remove the mounting bolts (A).

Fig 2: Removing Mounting Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the connector (B) from the rear controller and screen (C).
Remove the screws from the controller.

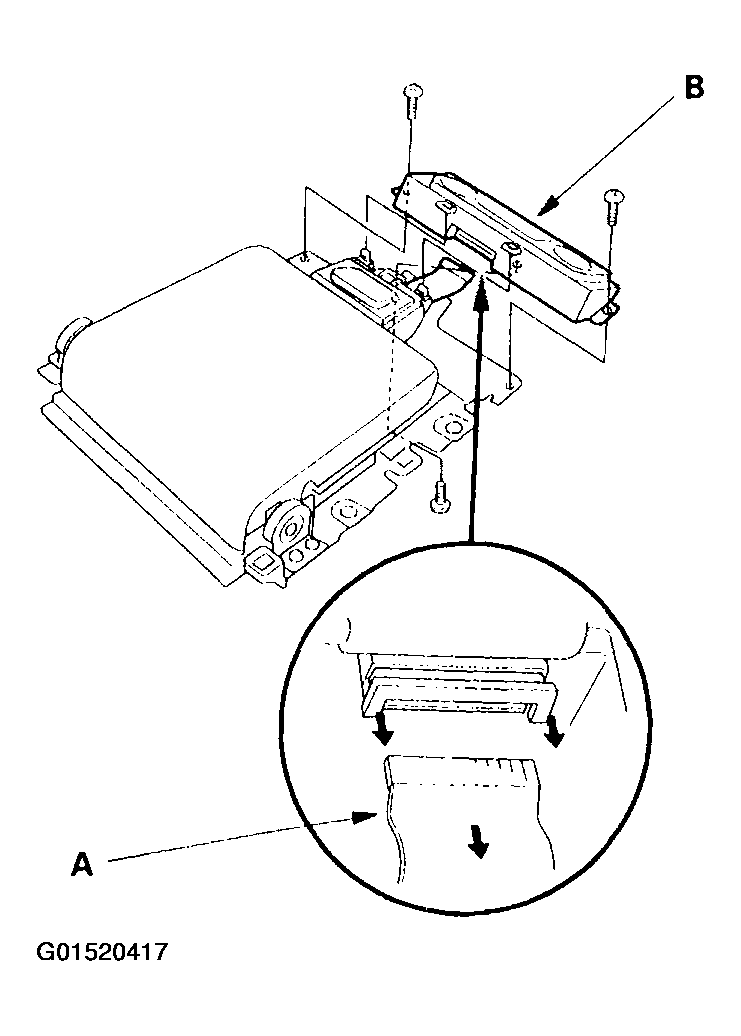

Disconnect the cable (A) from the controller (B).

Fig 3: Disconnecting Cable From Controller
Courtesy of AMERICAN HONDA MOTOR CO., INC.

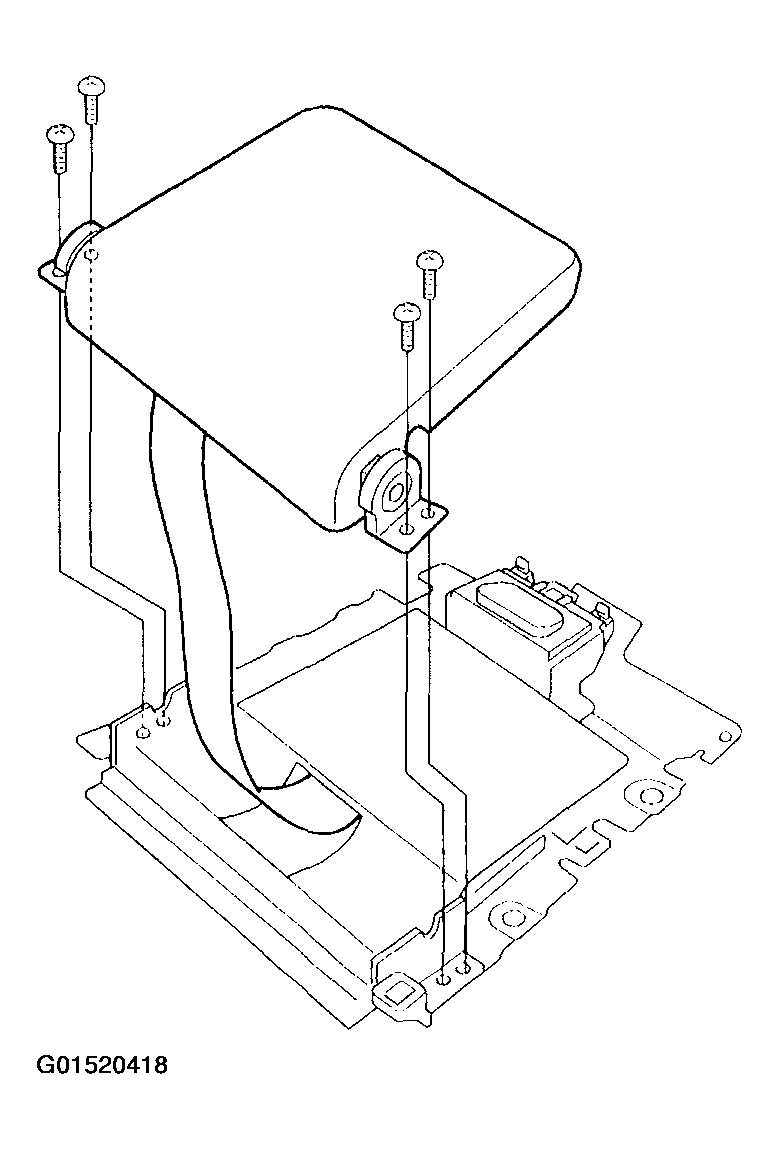

Remove the screw, then remove the screen.

Fig 4: Removing Screen
Courtesy of AMERICAN HONDA MOTOR CO., INC.

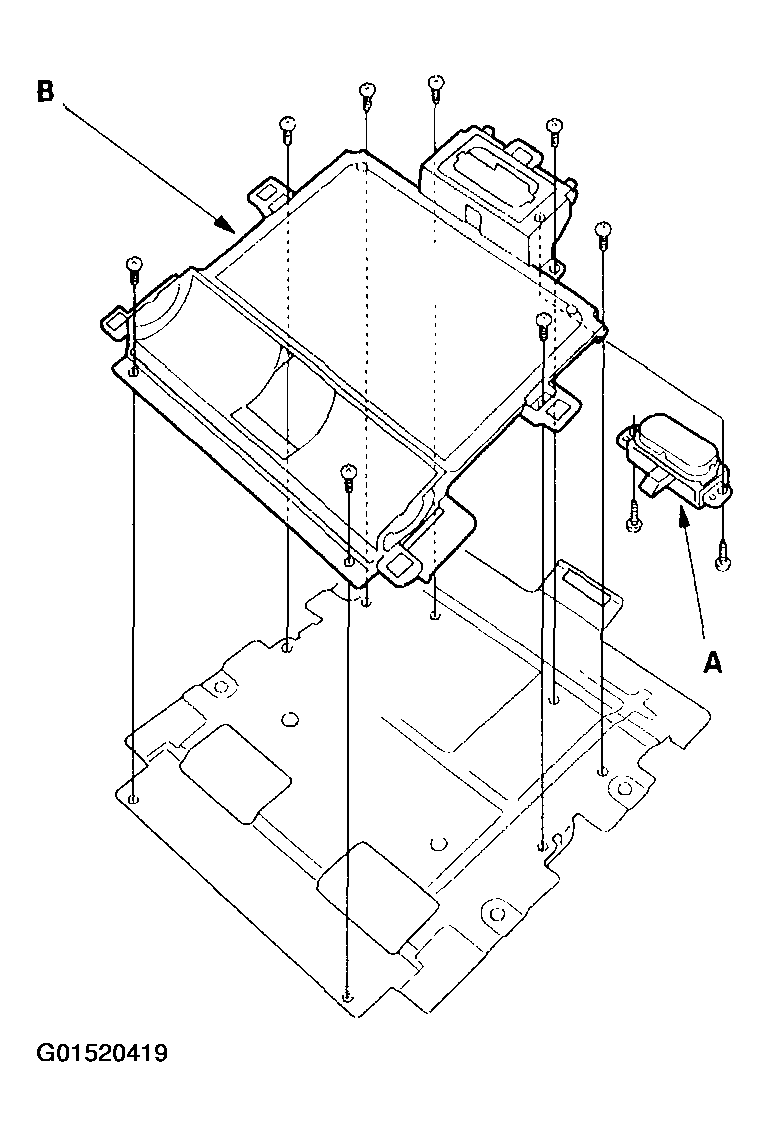

Remove the mounting screws from the lock switch (A) and base (B).

Fig 5: Removing Mounting Screws From Lock Switch & Base
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install in the reverse order of removal, and make sure the rear controller and screen connector is plugged in properly.
