Speaker Replacement: Door

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Honda Odyssey, 2003 Honda Odyssey, 2002 Honda Odyssey, 2001 Honda Odyssey, and 2000 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
  2. Remove the speaker cover (A).

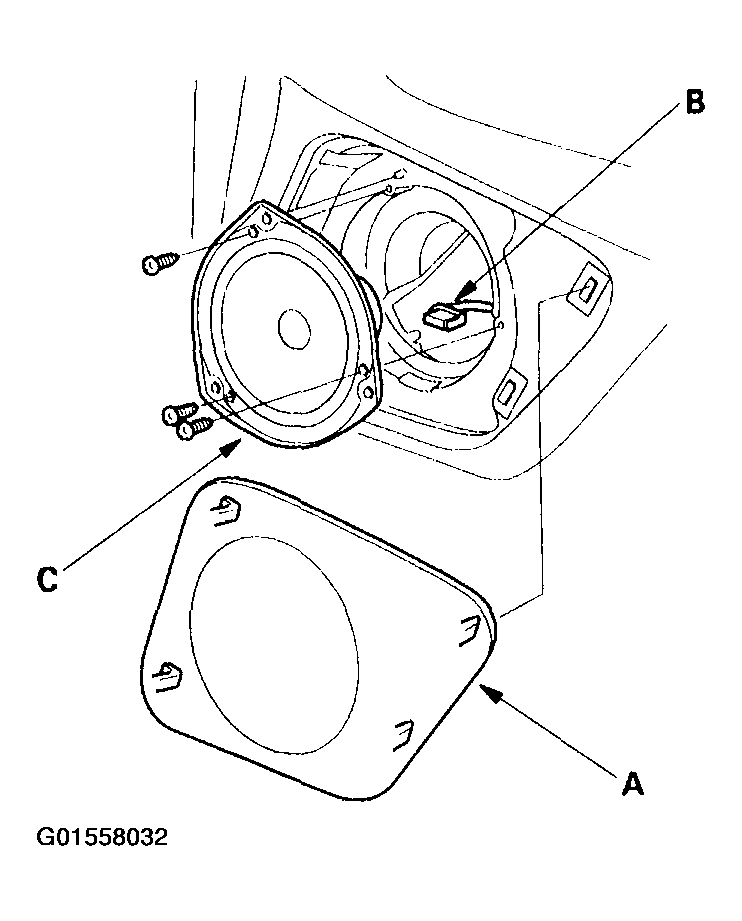

    Fig 1: Removing Speaker Cover
    G01558032Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the three screws, then disconnect the 2P connector (B) from the speaker (C).
