Mast Antenna Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Honda Odyssey, 2003 Honda Odyssey, 2002 Honda Odyssey, 2001 Honda Odyssey, and 2000 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

Antenna nut wrench 07XAA-0010200

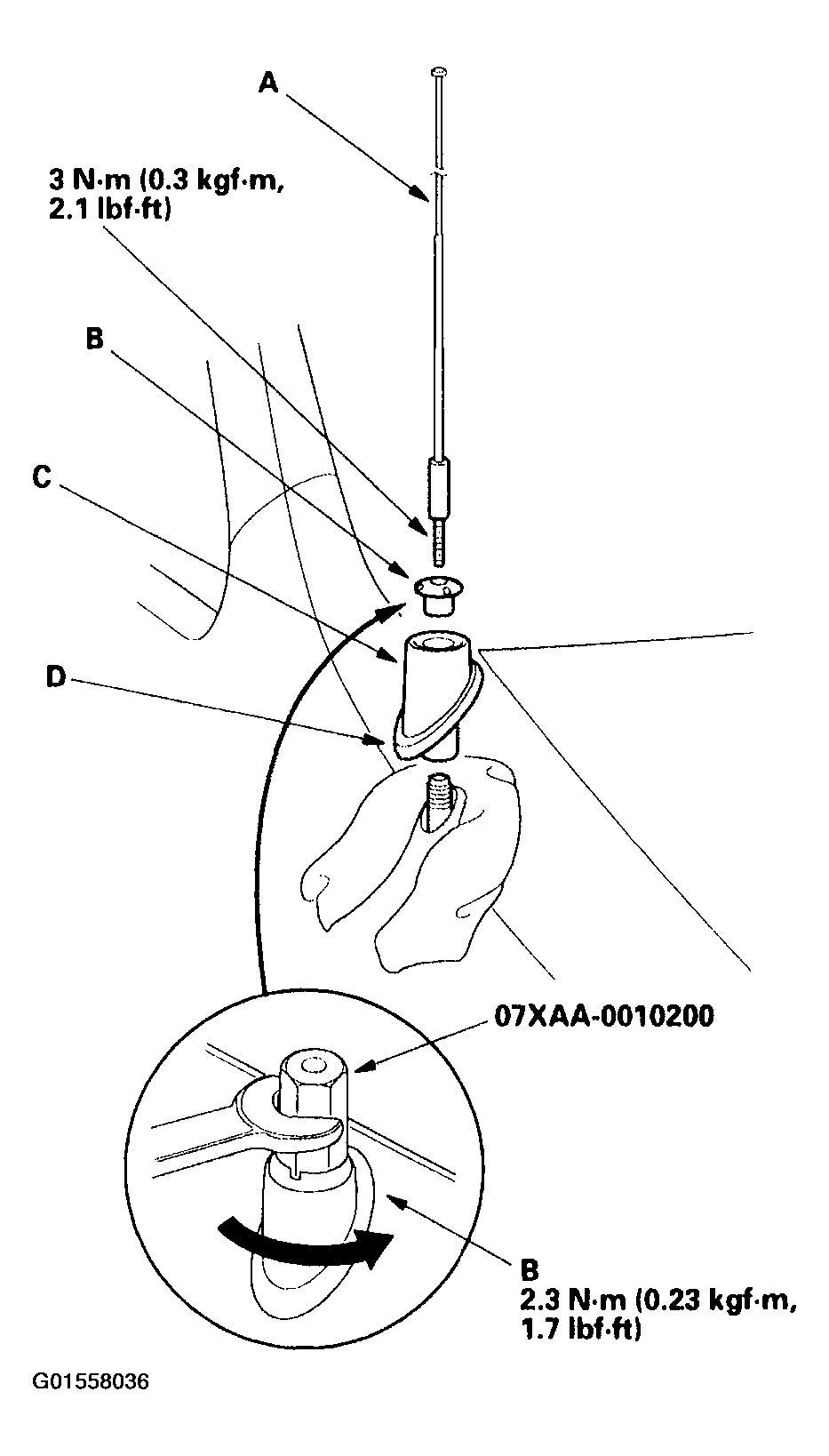

Remove the antenna mast (A).

Fig 1: Removing Antenna Mast
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the antenna nut (B), spacer (C) and bushing (D).

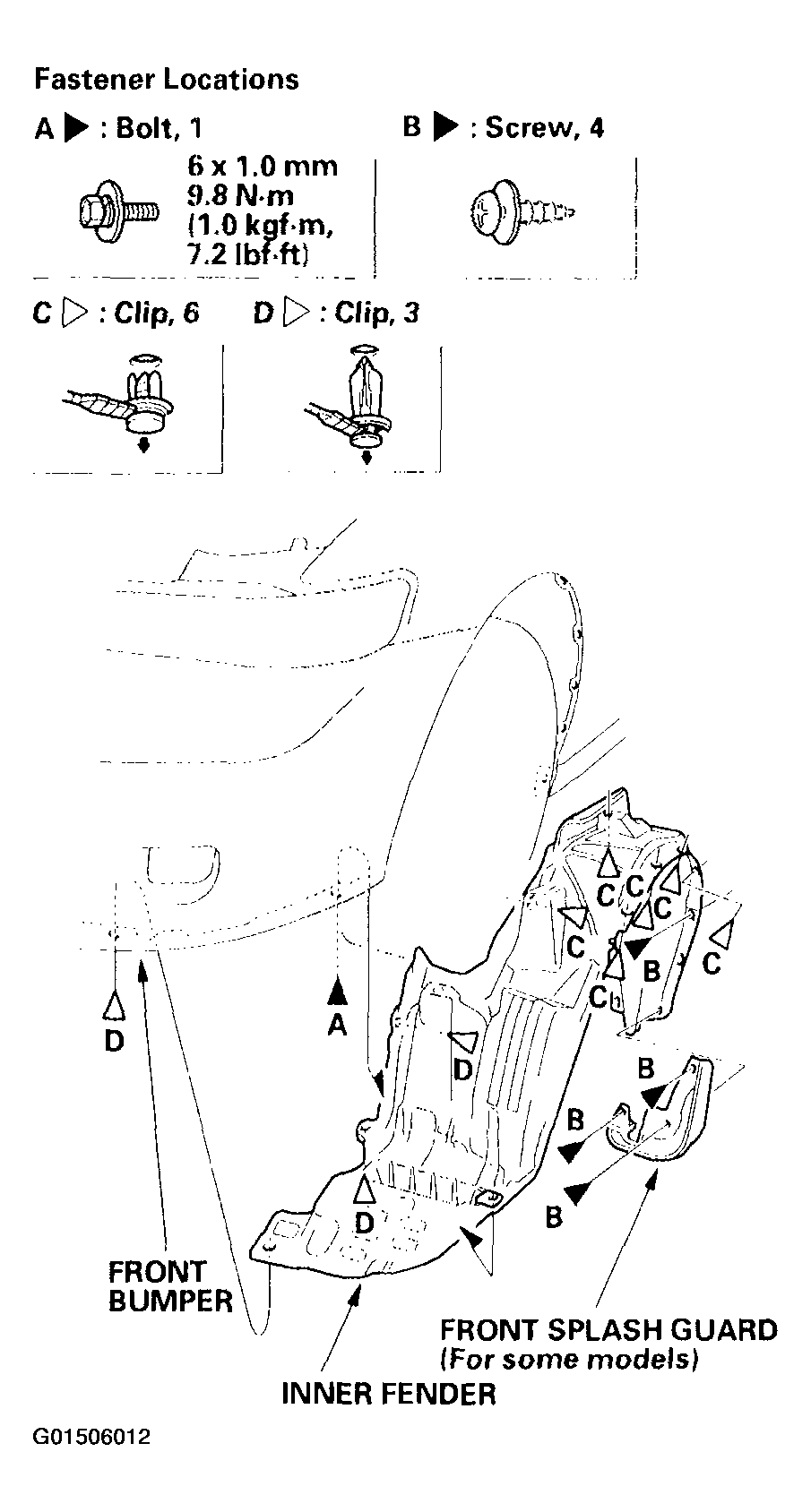

Remove the right inner fender.

Fig 2: Removing Right Inner Fender
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the antenna housing bracket bolt (A), then pull the housing out of the wheel well.

Fig 3: Removing Antenna Housing Bracket Bolt
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If necessary, remove the two bolts (B) from the housing, then separate the housing from the bracket.
