Without Rear Entertainment System

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Honda Odyssey, 2003 Honda Odyssey, 2002 Honda Odyssey, 2001 Honda Odyssey, and 2000 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

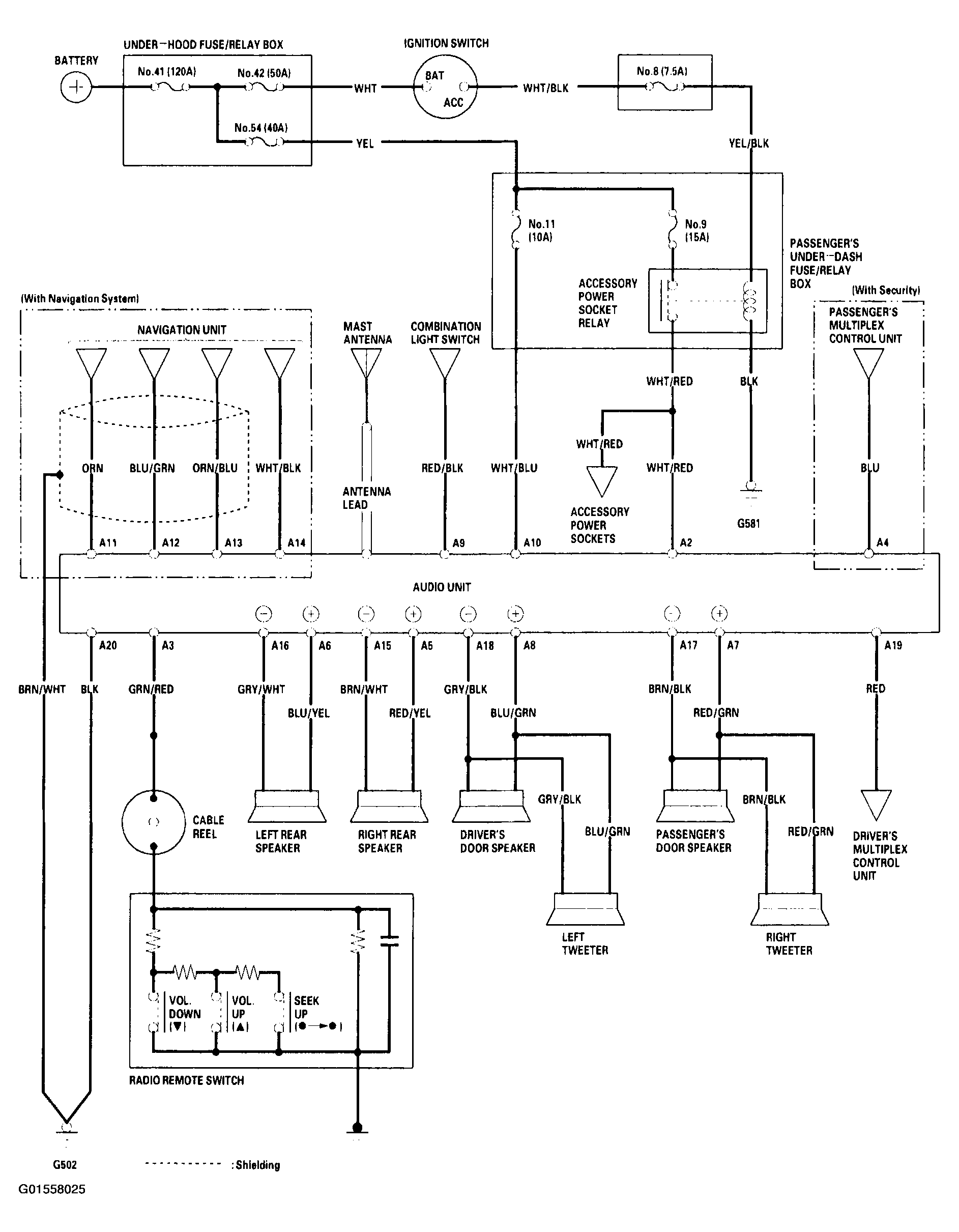

Fig 1: Audio System Circuit Diagram
G01558025Courtesy of AMERICAN HONDA MOTOR CO., INC.
