CVT model, 2006 M/T model

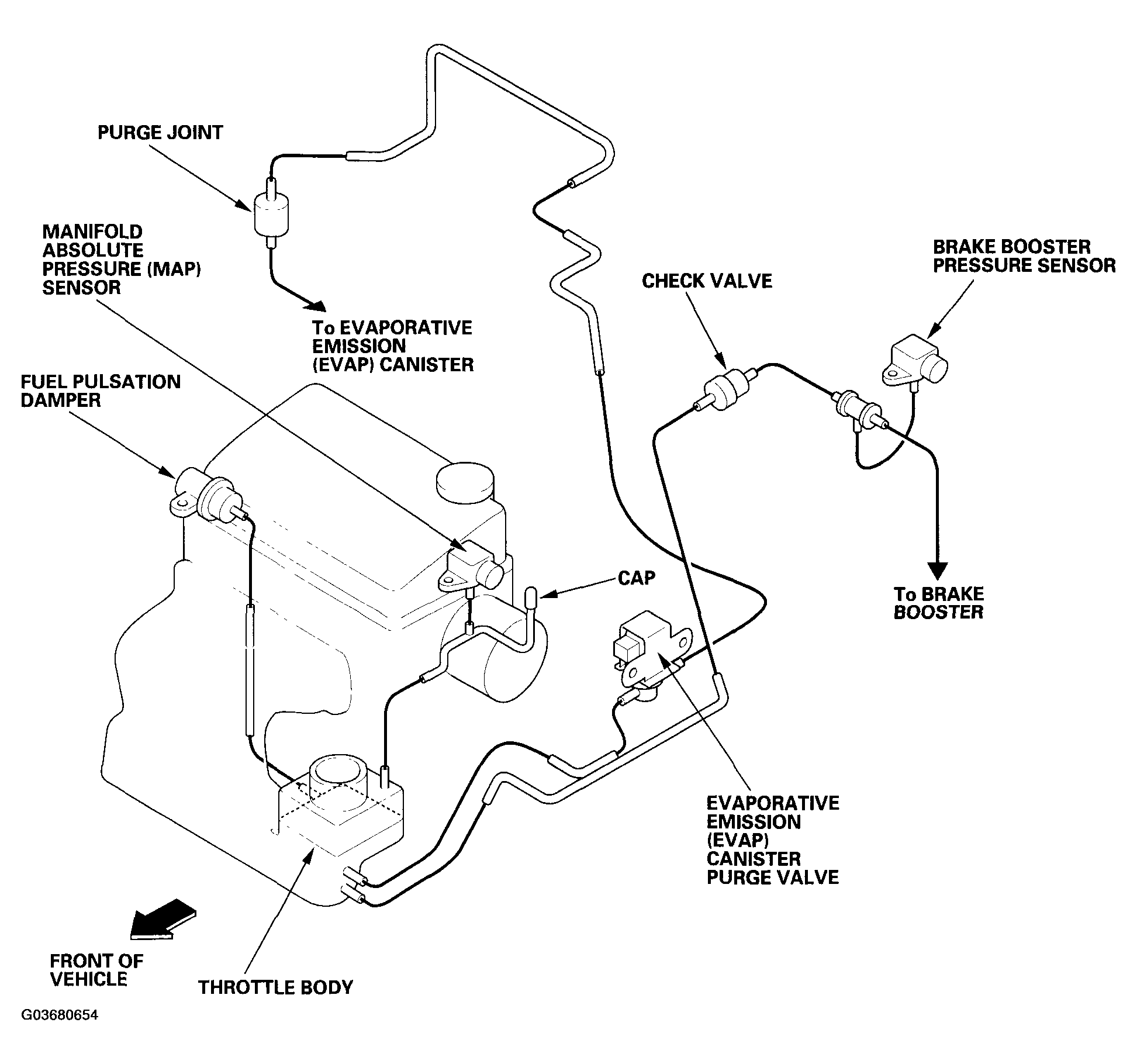

Fig 1: Identifying Vacuum Hose Routing (CVT Model, 2006 M/T Model)

G03680654

Courtesy of AMERICAN HONDA MOTOR CO., INC.
