ECM Inputs and Outputs at Connector A (32P)

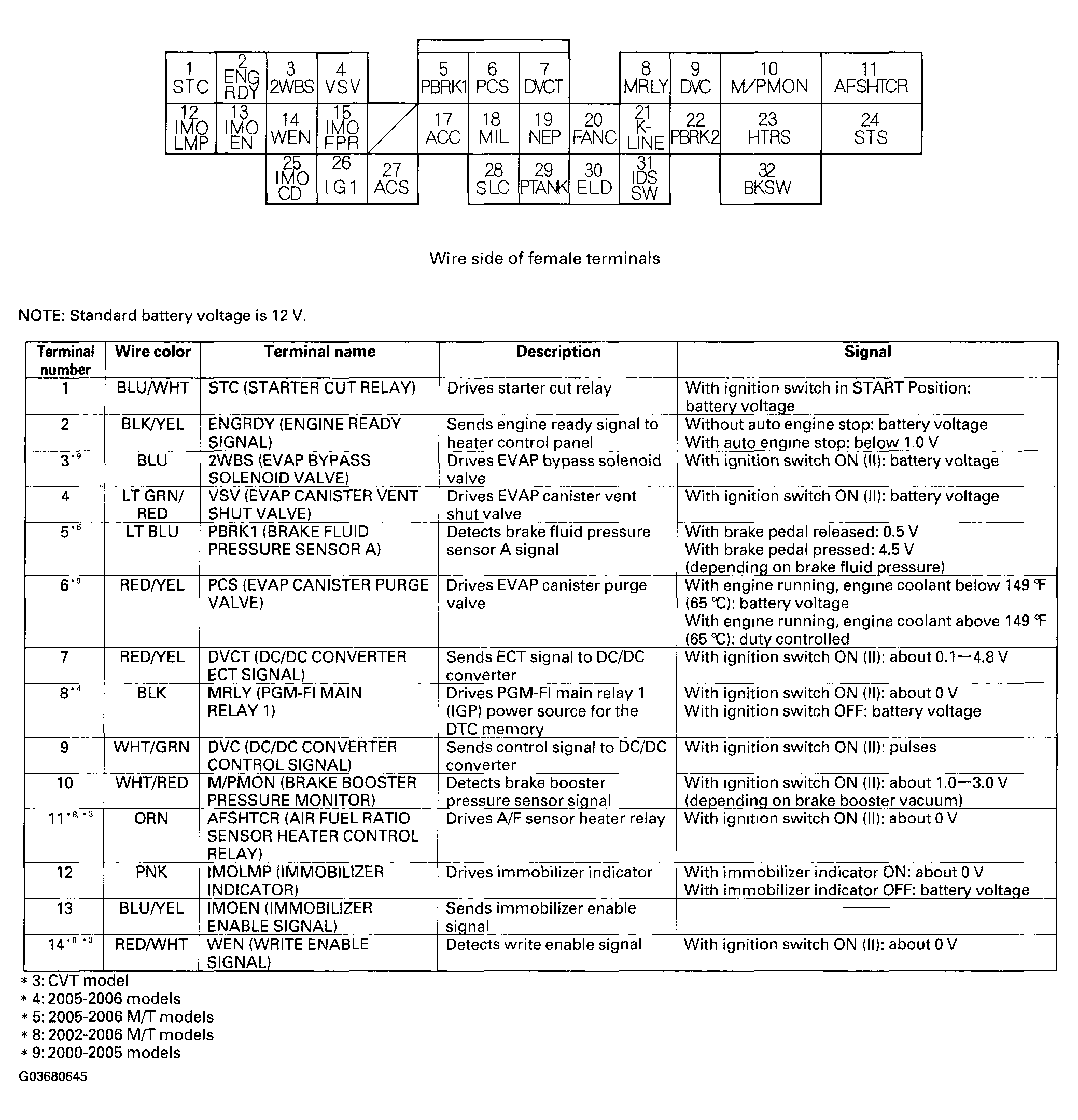

Fig 1: Identifying ECM Inputs And Outputs Connector A (32P) (1 Of 2)
G03680645Courtesy of AMERICAN HONDA MOTOR CO., INC.

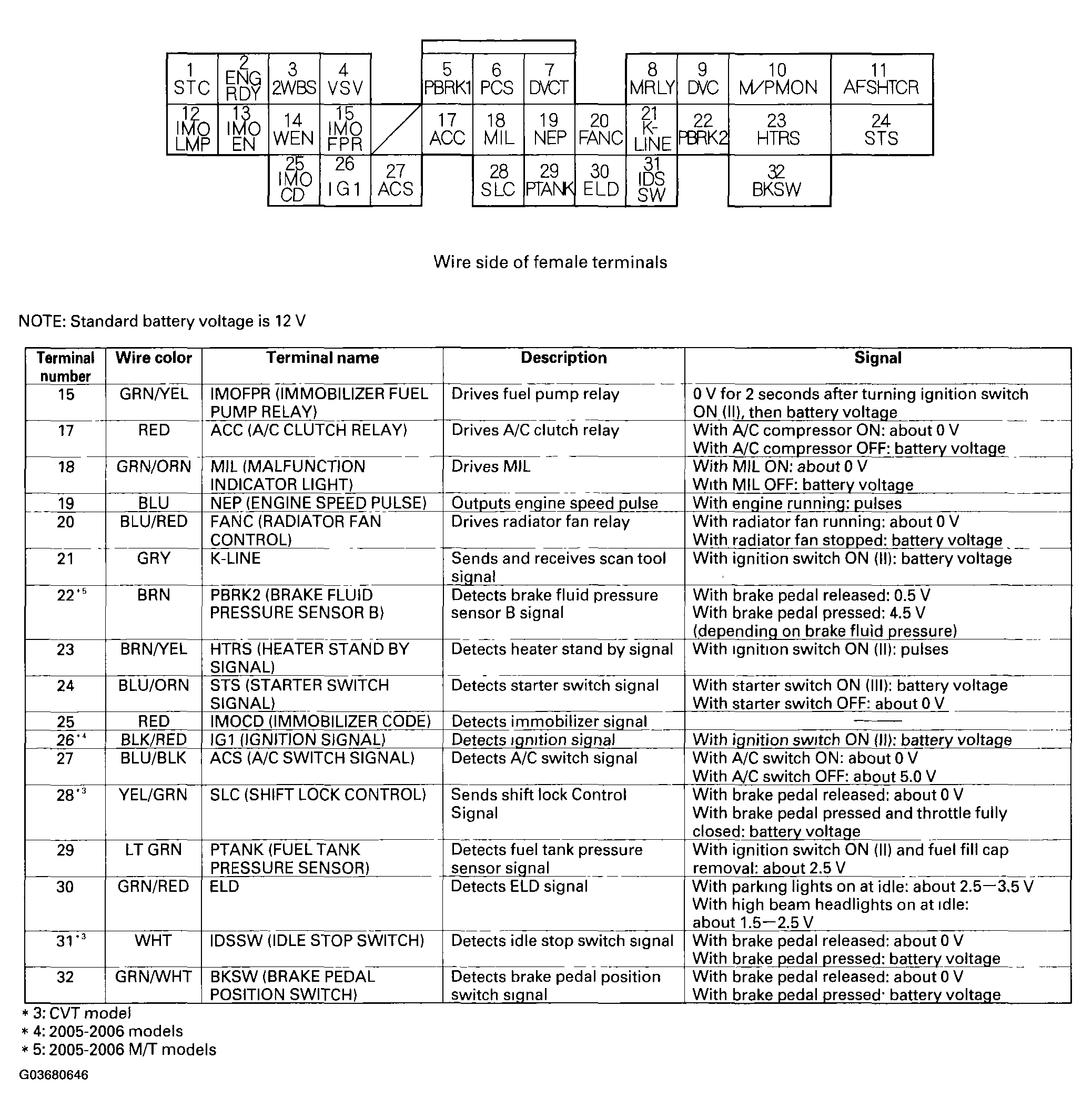

Fig 2: Identifying ECM Inputs And Outputs Connector A (32P) (2 Of 2)
G03680646Courtesy of AMERICAN HONDA MOTOR CO., INC.
