Circuit Diagram

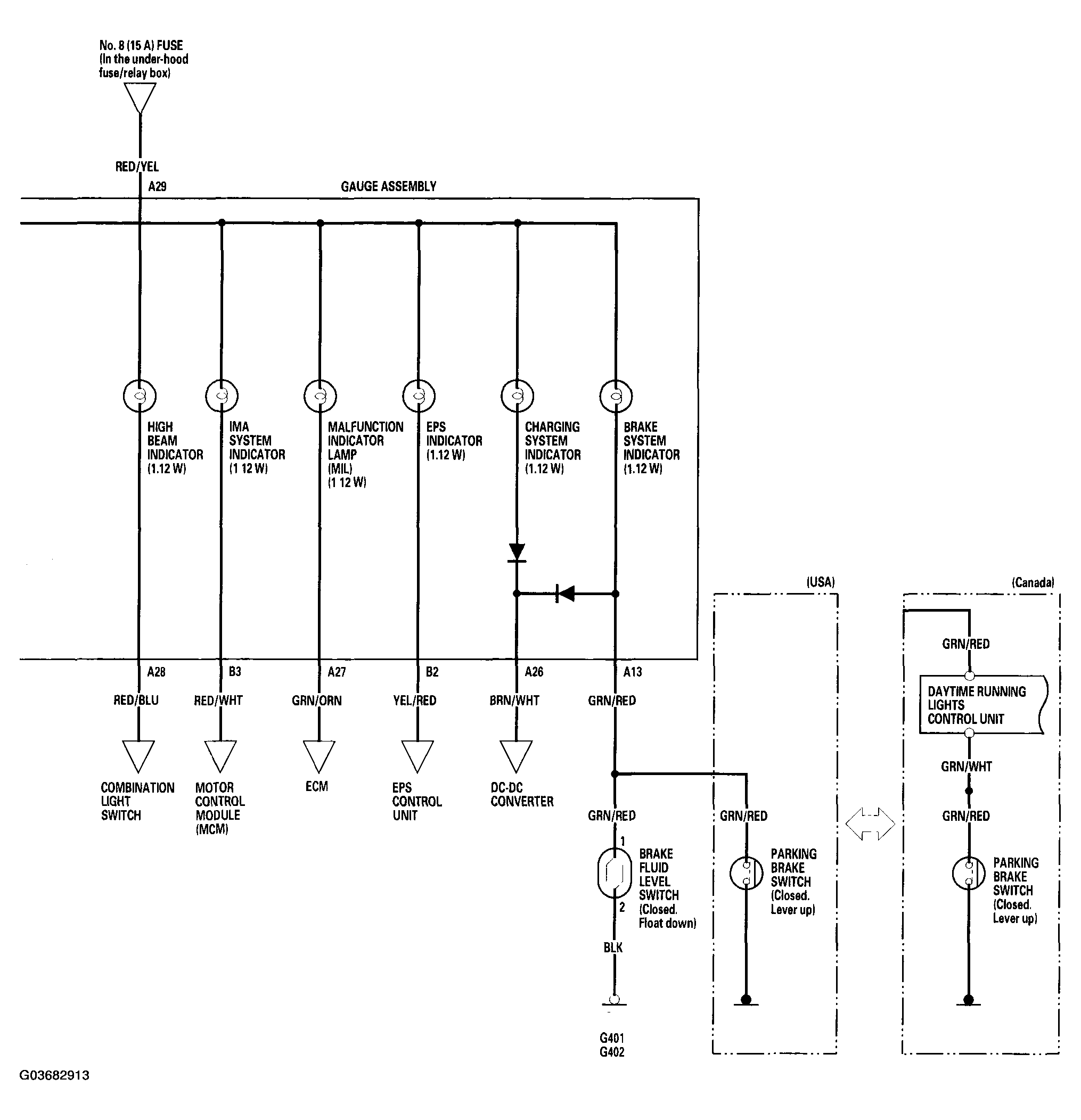

Fig 1: Identifying Gauges Circuit Diagram (1 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

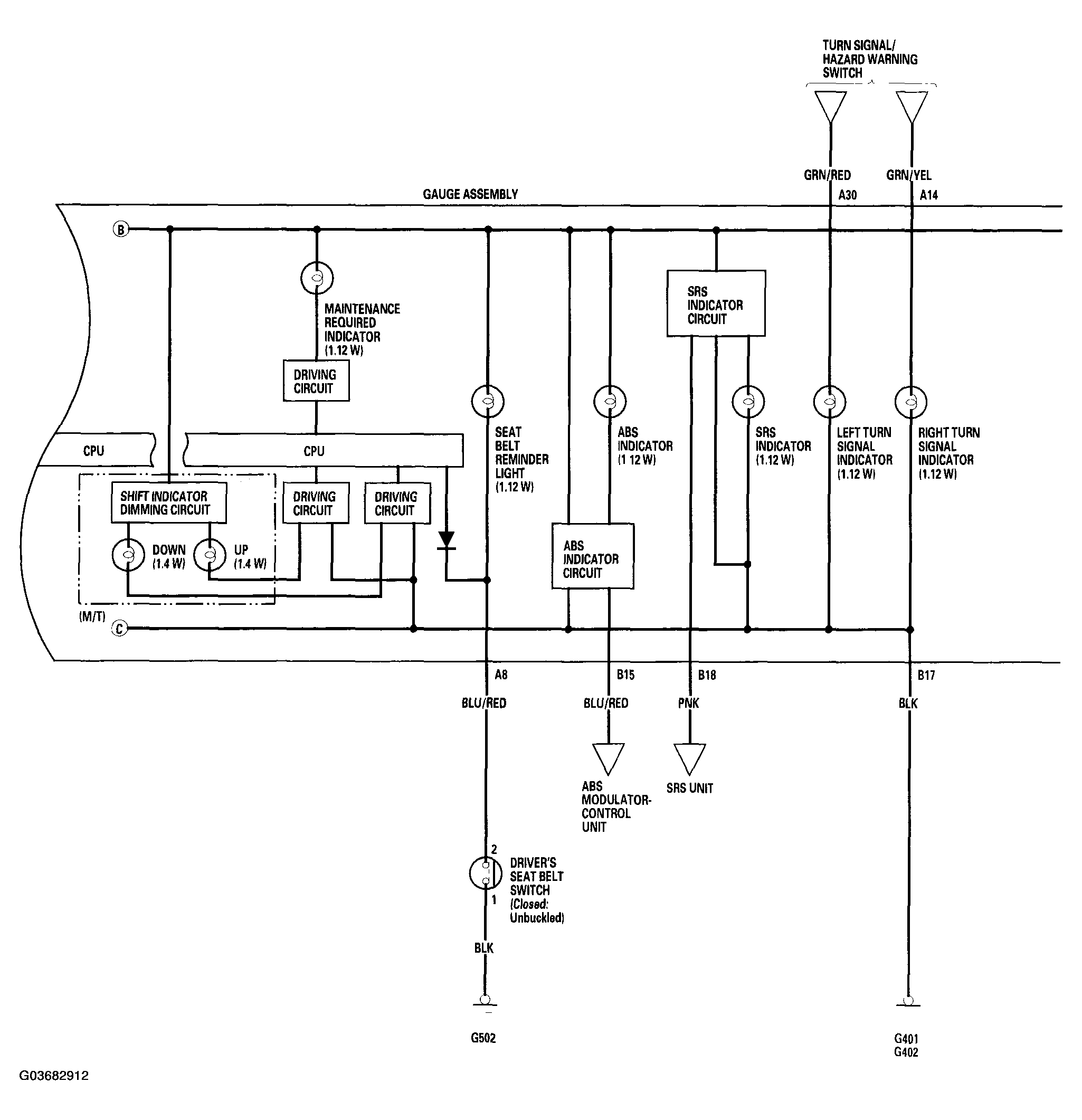

Fig 2: Identifying Gauges Circuit Diagram (2 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

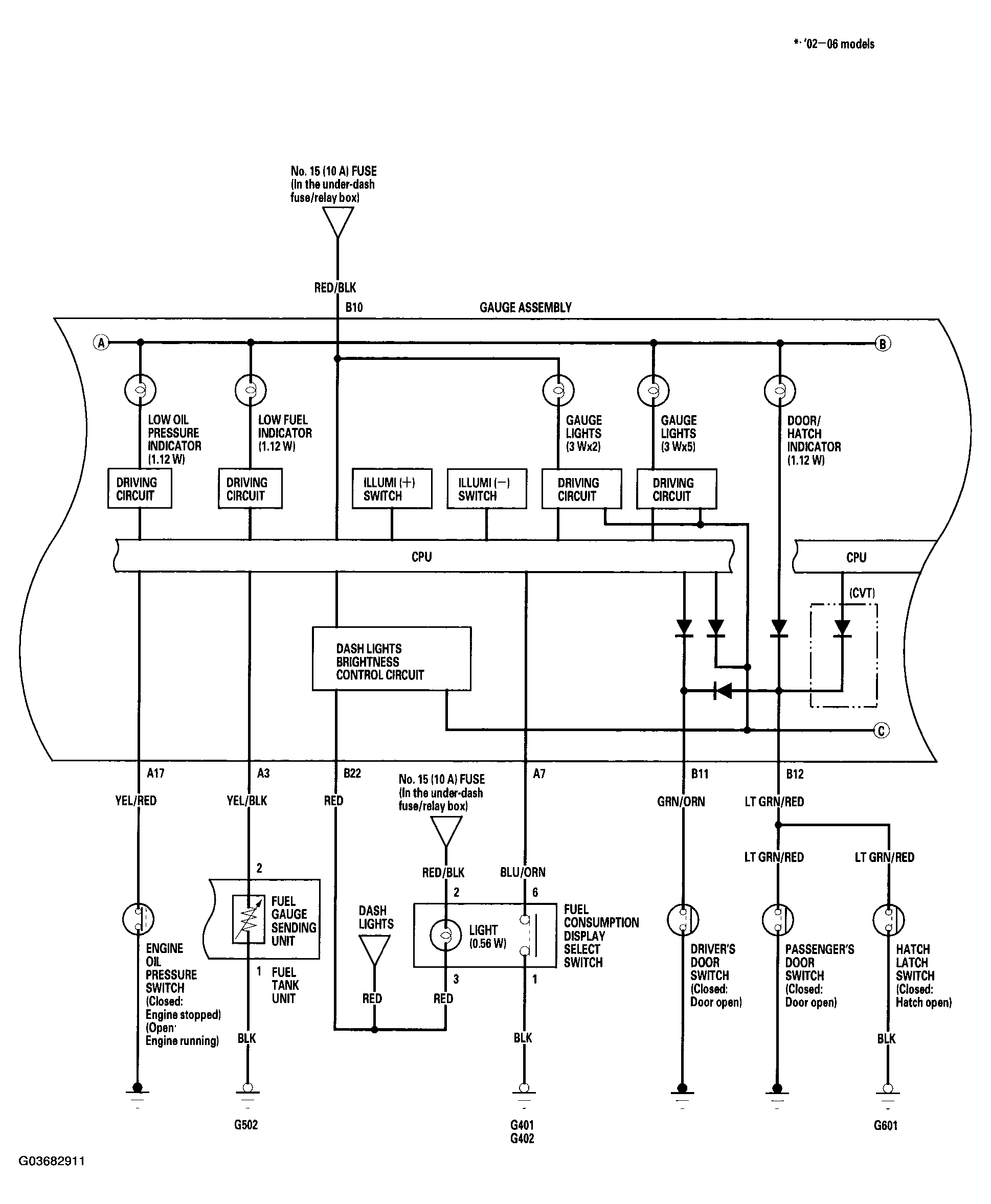

Fig 3: Identifying Gauges Circuit Diagram (3 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

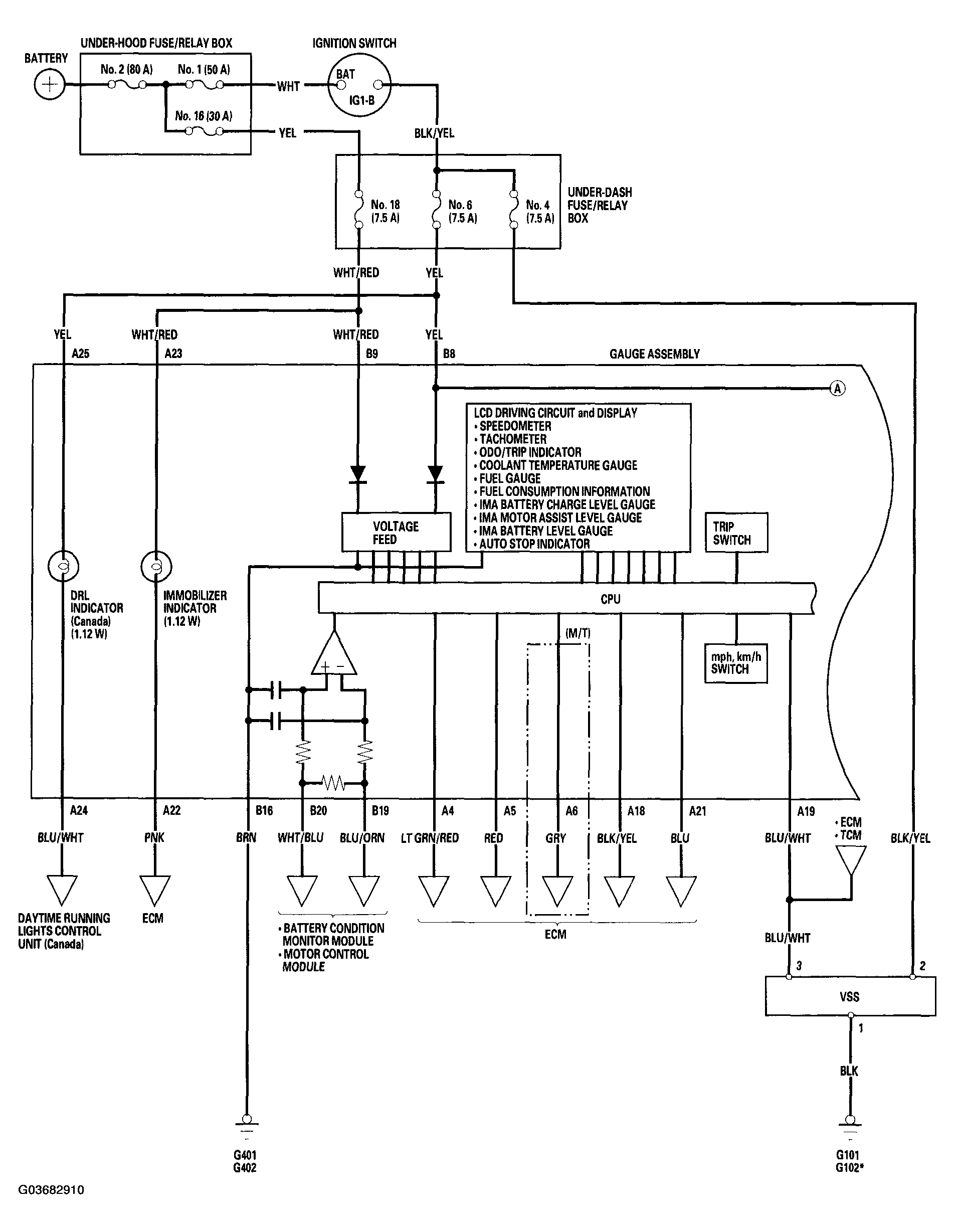

Fig 4: Identifying Gauges Circuit Diagram (4 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
