Evaporator Temperature Sensor Replacement

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the driver's dashboard lower cover (see DRIVER'S LOWER DASHBOARD SWITCH PANEL REMOVAL/INSTALLATION ).
  2. Disconnect the 2P connector (A) from the evaporator temperature sensor (B), then remove the connector clip (C). Remove the self-tapping screw, and carefully pull out the evaporator temperature sensor.

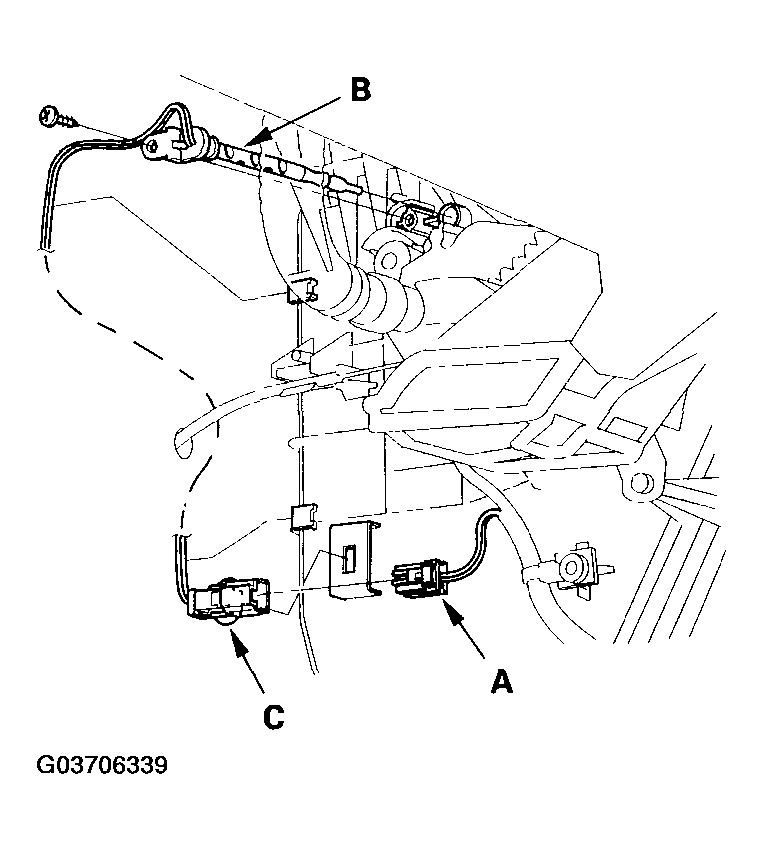

    Fig 1: Disconnecting 2P Connector From Evaporator Temperature Sensor
    G03706339Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the sensor in the reverse order of removal.
