Blower Motor Replacement

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the passenger's side under cover (see PASSENGER'S DASHBOARD UNDER COVER REMOVAL/INSTALLATION ).
  2. Disconnect the connectors (A) from the climate control unit (with climate control), the blower motor, and the power transistor, then remove the wire harness clips (B).

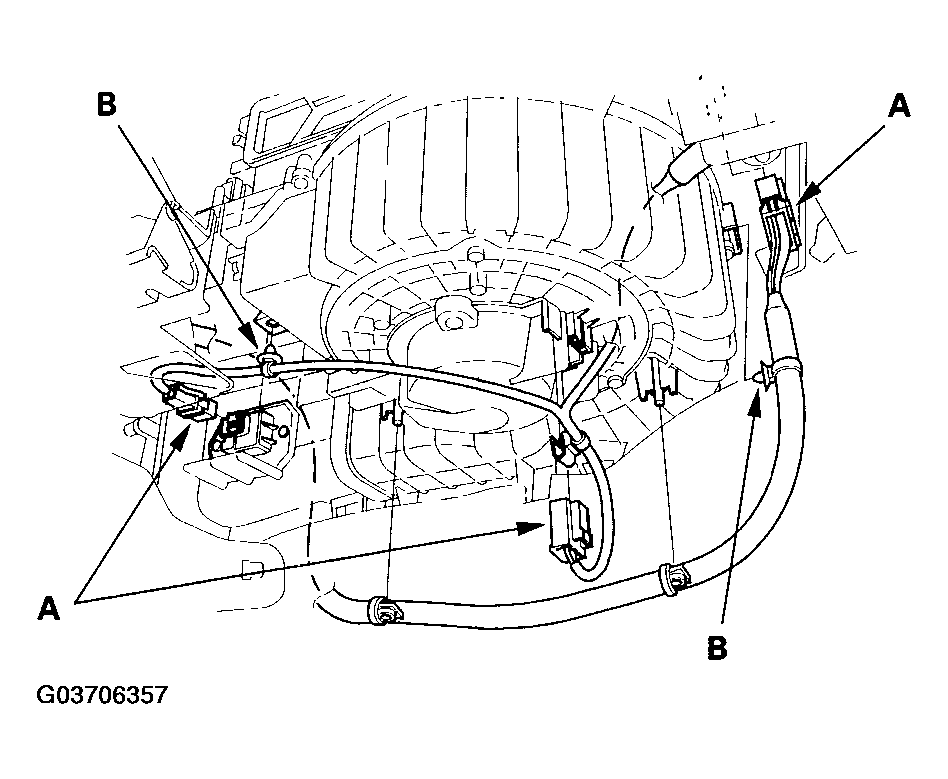

    Fig 1: Disconnecting Connectors From Climate Control Unit
    G03706357Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the blower motor (A).

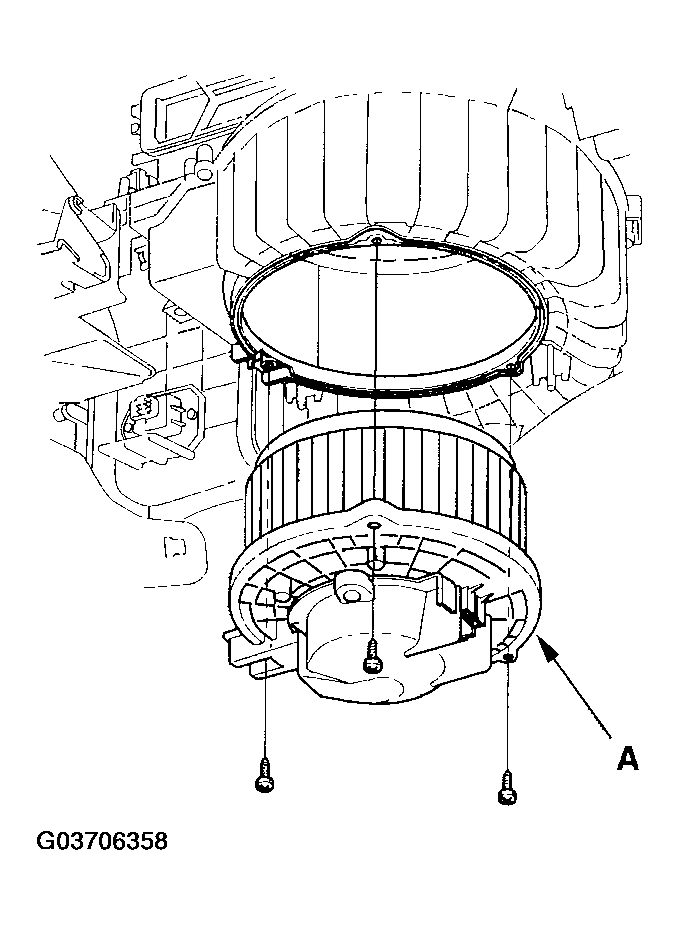

    Fig 2: Removing Blower Motor
    G03706358Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the motor in the reverse order of removal.
