A/C Control Panel Removal and Installation

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Remove the center panel (see DASHBOARD CENTER PANEL REMOVAL/INSTALLATION ).
Remove the dials (A), the self-tapping screws, and the A/C control panel (B).

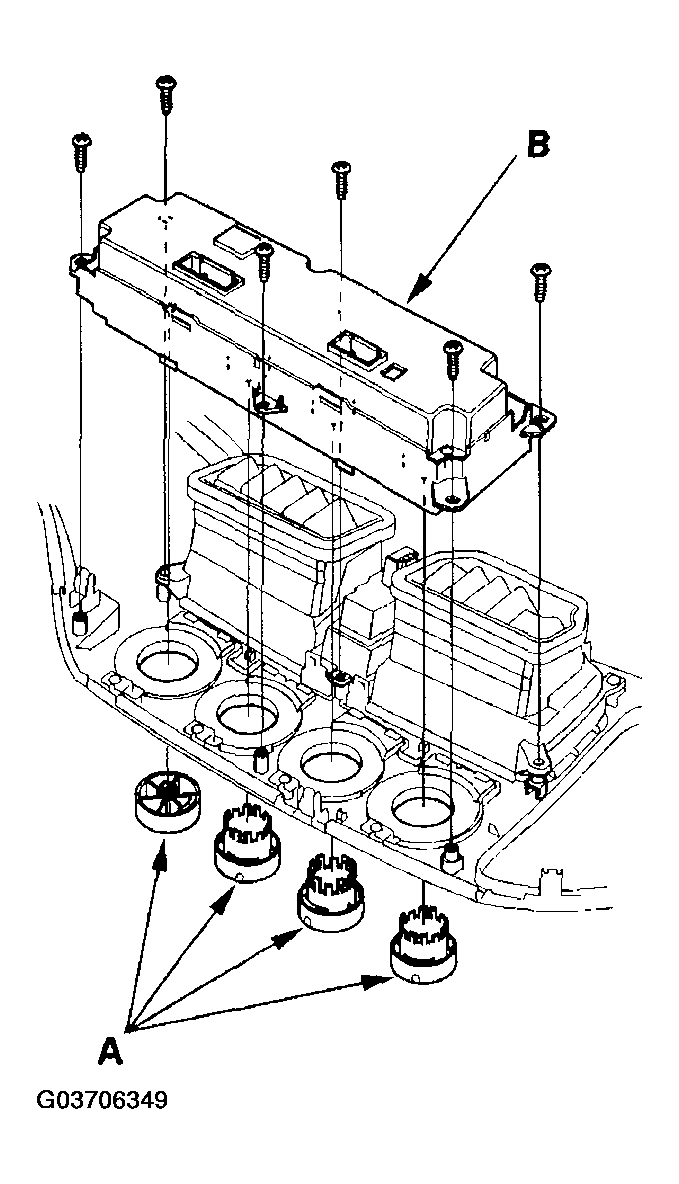

Fig 1: Removing Dials, Self-Tapping Screws, And A/C Control Panel
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the A/C control panel in the reverse order of removal. After installation, operate the various functions to make sure they work properly.
Run the self-diagnostic function to confirm that there are no problems in the system (see GENERAL TROUBLESHOOTING INFORMATION ).
