A/C Compressor Clutch Check

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Check the pressure plate for discoloration, peeling, or other damage. If there is damage, replace the clutch set (see A/C COMPRESSOR CLUTCH OVERHAUL ).
Check the pulley bearing play and drag by rotating the pulley by hand. Replace the clutch set with a new one if it is noisy or has excessive play/drag (see A/C COMPRESSOR CLUTCH OVERHAUL ).

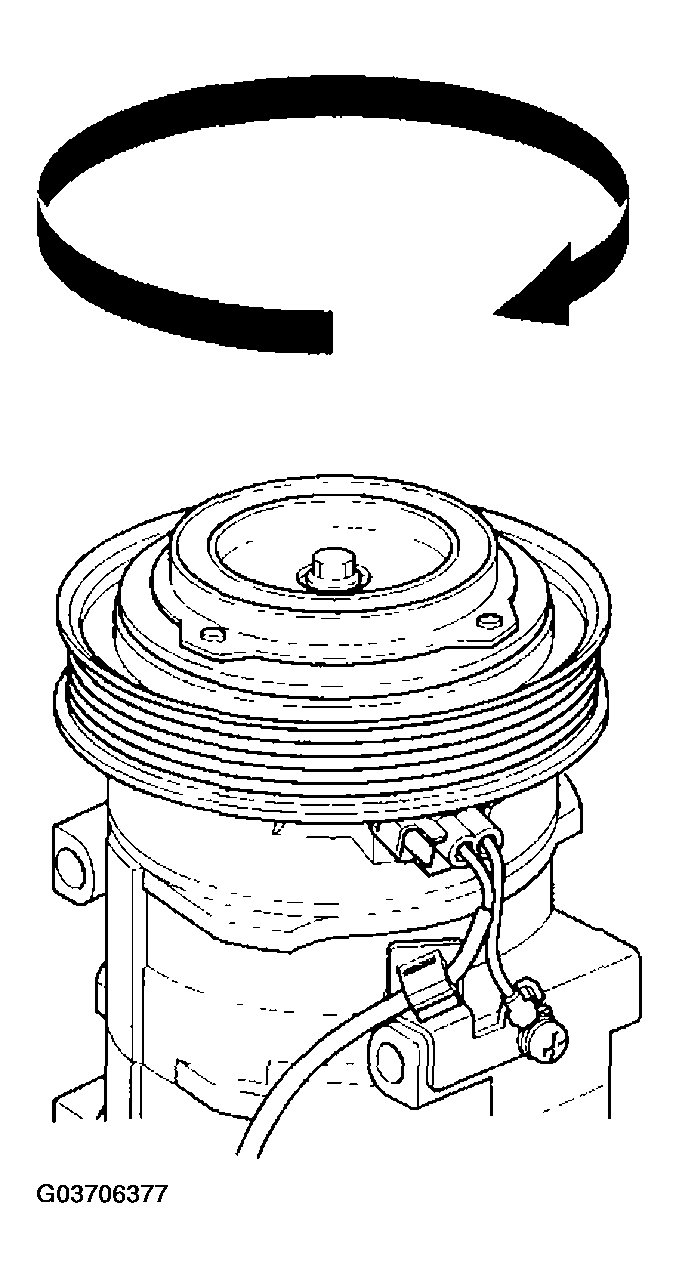

Fig 1: Checking Pulley Bearing Play And Drag
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Measure the clearance between the rotor pulley (A) and the pressure plate (B) all the way around. If the clearance is not within specified limits, remove the pressure plate (see A/C COMPRESSOR CLUTCH OVERHAUL ) and add or remove shims as needed to increase or decrease clearance.
Clearance: 0.30-0.55 mm (0.012-0.023 in.)

NOTE: The shims are available in three thicknesses: 0.1 mm, 0.3 mm, and 0.5 mm.

Fig 2: Measuring Clearance Between Rotor Pulley And Pressure Plate
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check the resistance of the field coil. If resistance is not within specifications, replace the field coil (see A/C COMPRESSOR CLUTCH OVERHAUL ).
Field Coil Resistance: 3.9-4.3 Ω at 68°F (20°C)

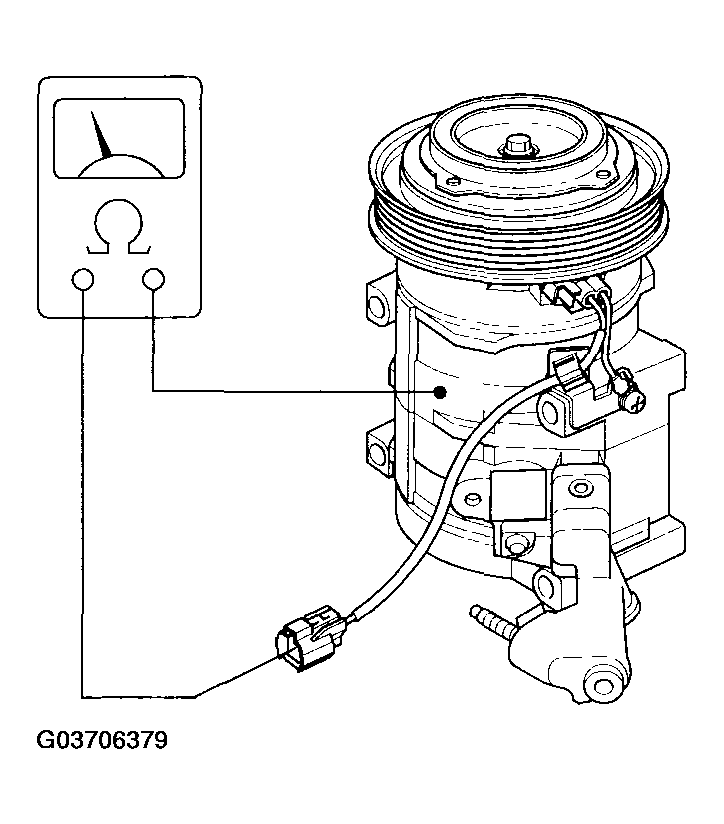

Fig 3: Checking Resistance Of Field Coil
Courtesy of AMERICAN HONDA MOTOR CO., INC.
