Third Row Seat Latch Replacement

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

KTC trim tool set SOJATP2014

NOTE:

Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
Take care not to tear the seams or damage the seat covers.

Stand the third row seat upright, and hold it.
Remove the left foot cover or right foot cover (see step 16 ).
While holding the seat upright, remover the bolts securing the latch (A), and disconnect the cable (B) by releasing the push nut (C), then remove the latch.

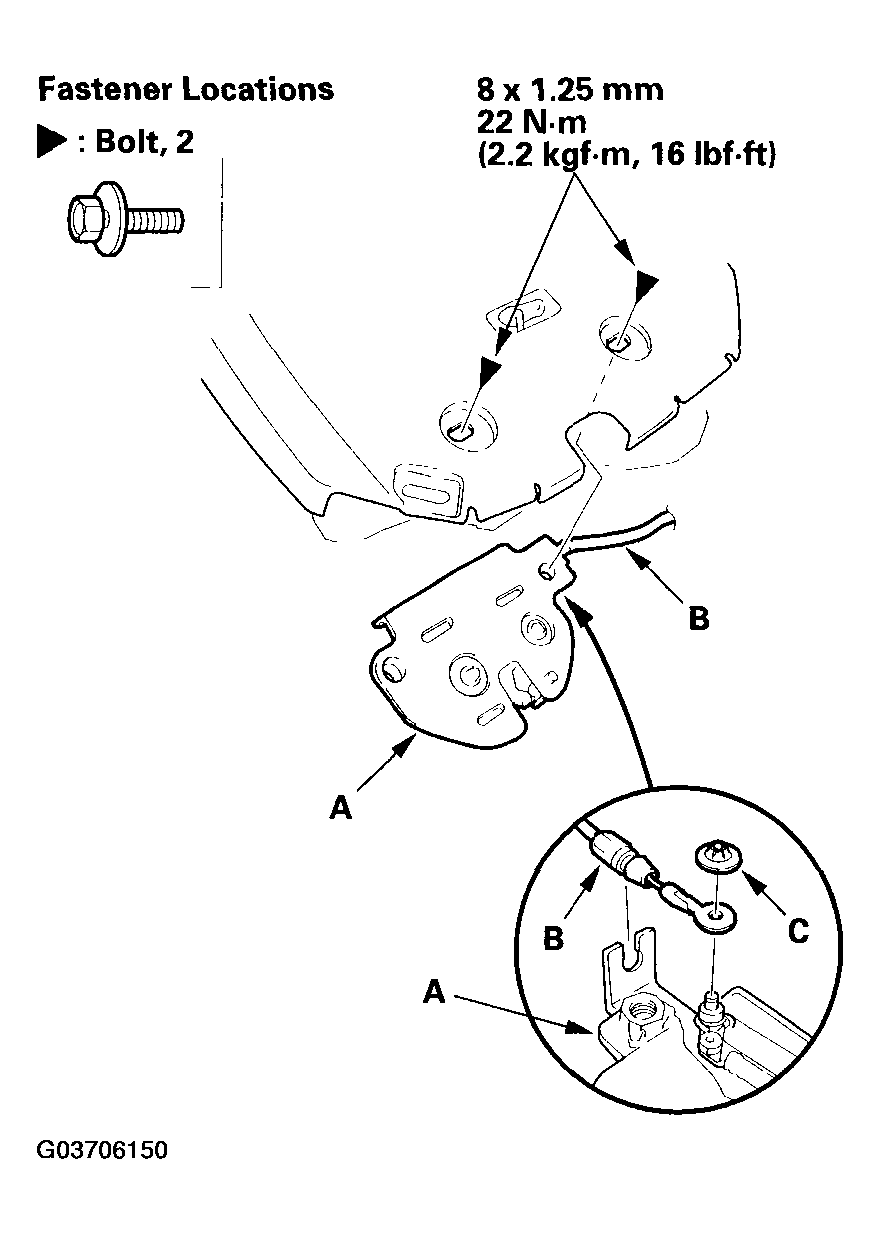

Fig 1: Removing Latch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the latch (A) in the reverse order of removal and move it left or right until it is centered on the striker (B).

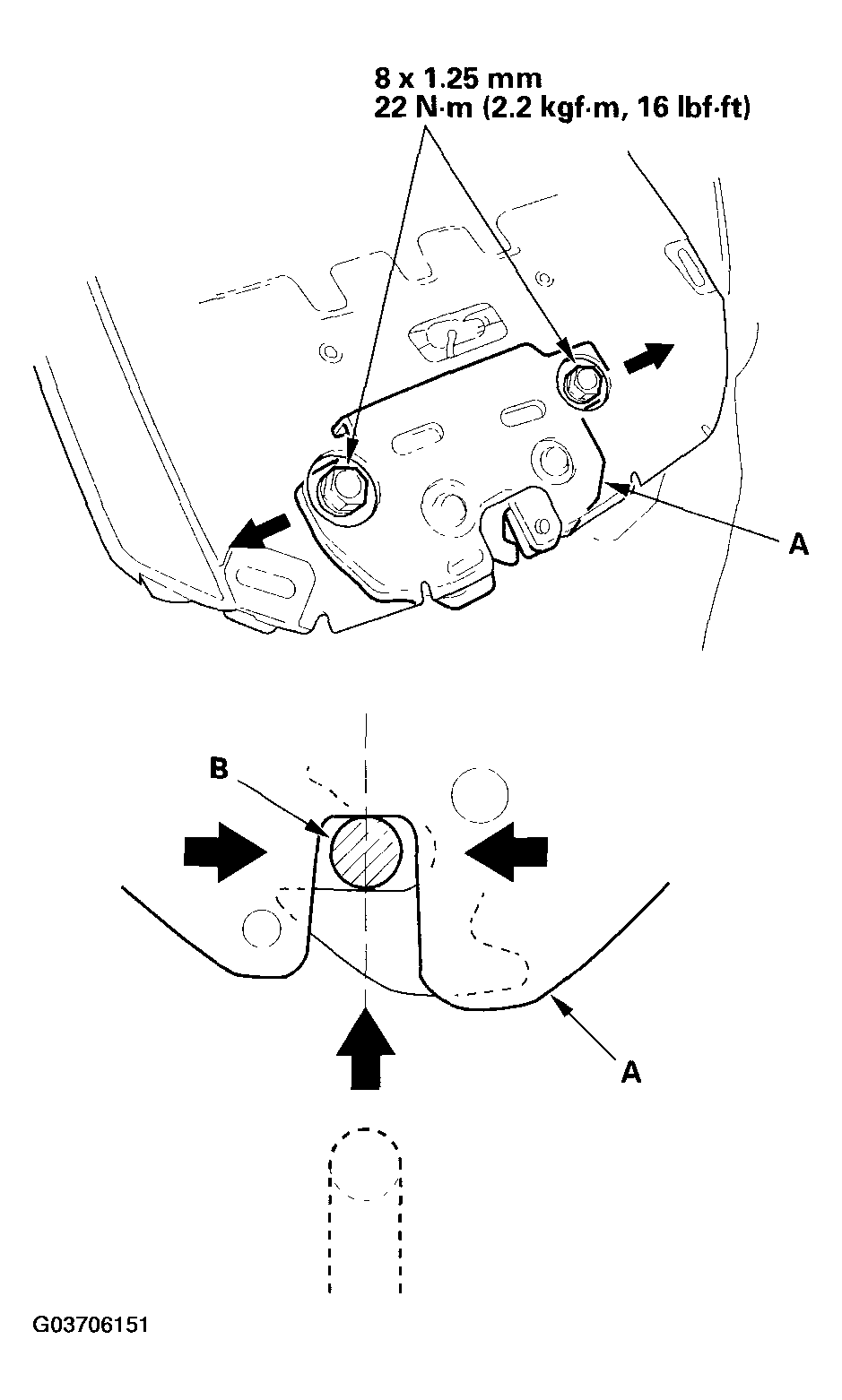

Fig 2: Installing Third Row Seat Latch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
