Second Row Seat Lock Release Cable Replacement

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Take care not to kink the cable.

Remove the second row seat.
Remove these items:
- Outer recline cover (see SECOND ROW SEAT DISASSEMBLY/REASSEMBLY )
- Inner recline cover C (see SECOND ROW SEAT DISASSEMBLY/REASSEMBLY )
- Rear outer riser cover (see SECOND ROW SEAT RISER DISASSEMBLY/REASSEMBLY )
- Rear inner riser cover (see SECOND ROW SEAT RISER DISASSEMBLY/REASSEMBLY )
Release the hooks from under the seat cushion (see step 4 in SEAT CUSHION COVER ).

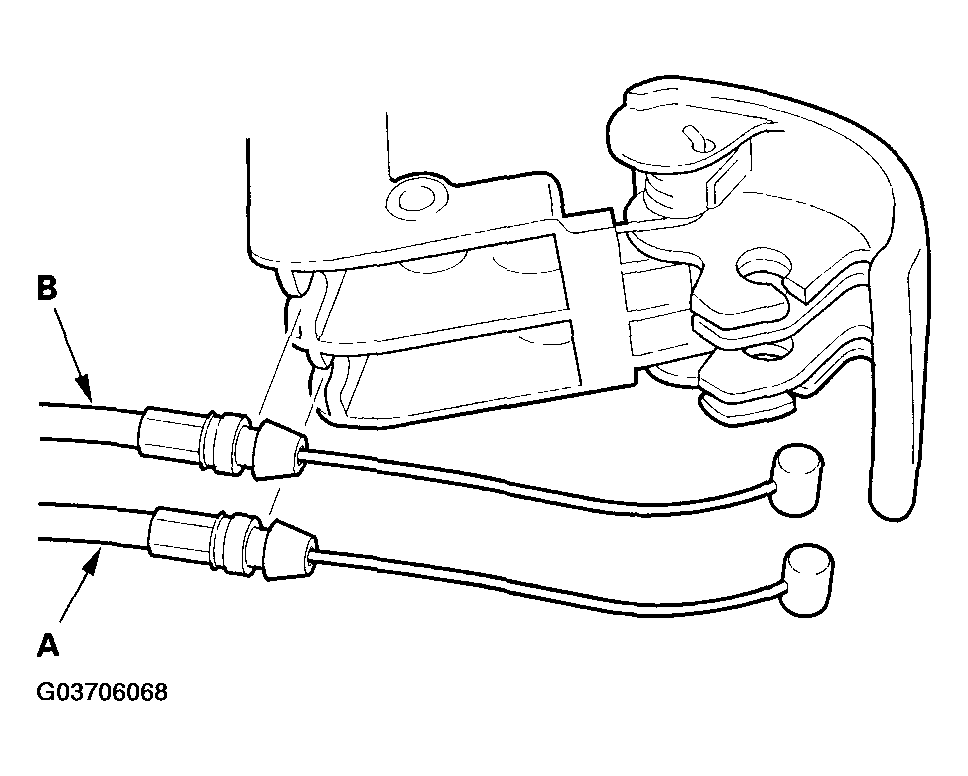

Disconnect the outer lock release cable (A) and inner lock release cable (B) from the knob.

Fig 1: Disconnecting Outer Lock Release Cable
Courtesy of AMERICAN HONDA MOTOR CO., INC.

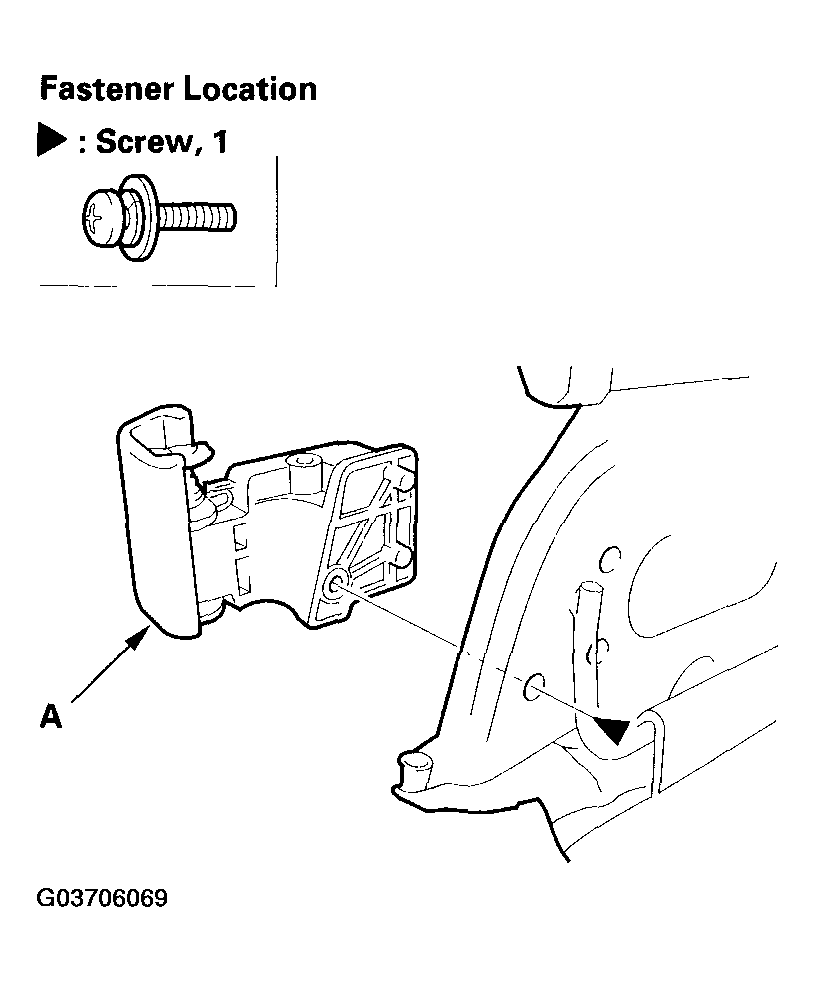

If necessary, remove the knob (A).

Fig 2: Removing Knob
Courtesy of AMERICAN HONDA MOTOR CO., INC.

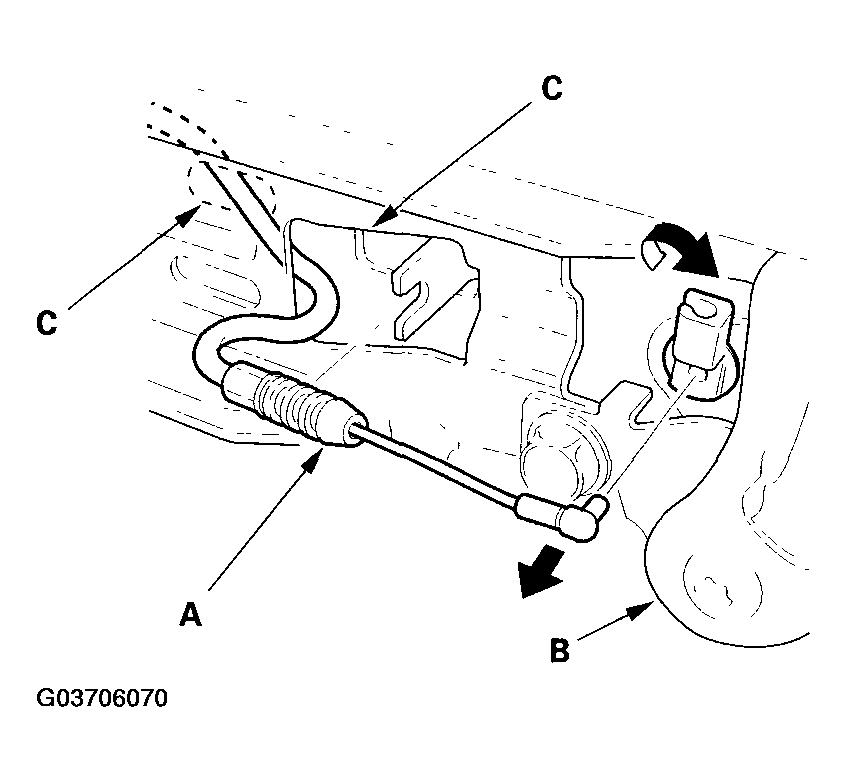

Disconnect the lock release cables (A) from both latches (B). Pull the end of each cable in through the holes (C) in the riser.

Fig 3: Disconnecting Lock Release Cables
Courtesy of AMERICAN HONDA MOTOR CO., INC.

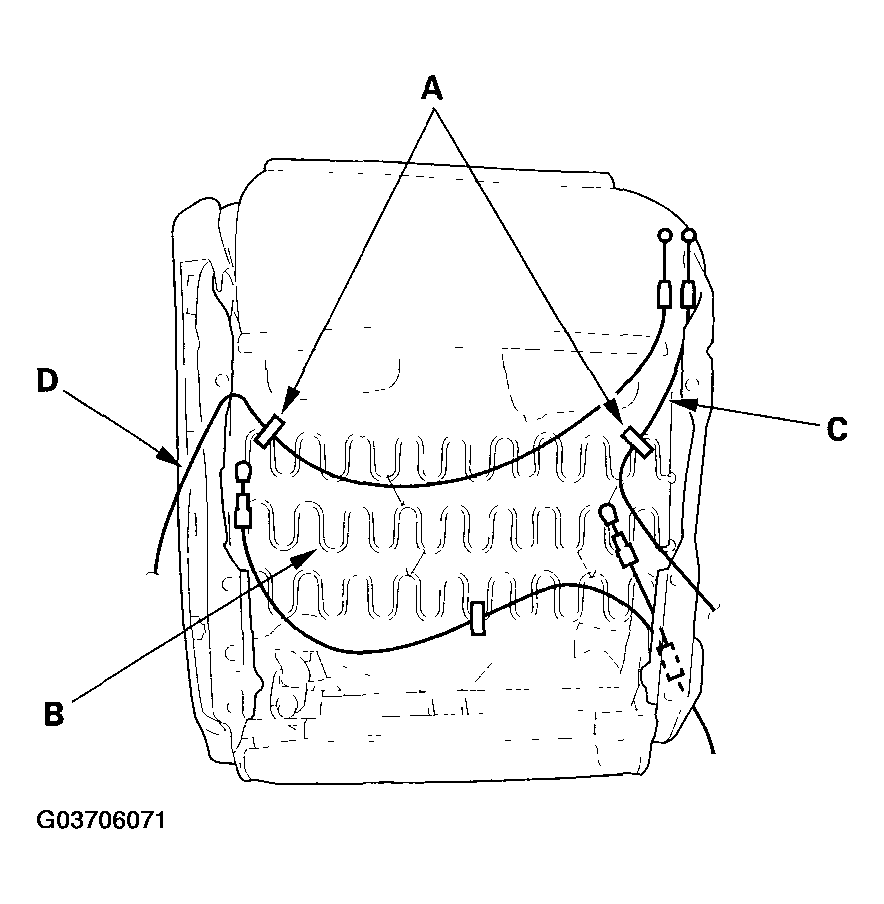

Release the wire ties (A) fastening each cable on the seat cushion frame spring (B), then remove the outer lock release cable (C) and inner lock release cable (D).

Fig 4: Removing Outer And Inner Lock Release Cable
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the cables in the reverse order of removal, and note these items:
- Make sure each cable is connected securely.
- Replace the wire ties you removed with new ones.
