Front Seat Armrest Replacement: Normal

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using a trim tool, remove the cap (A).

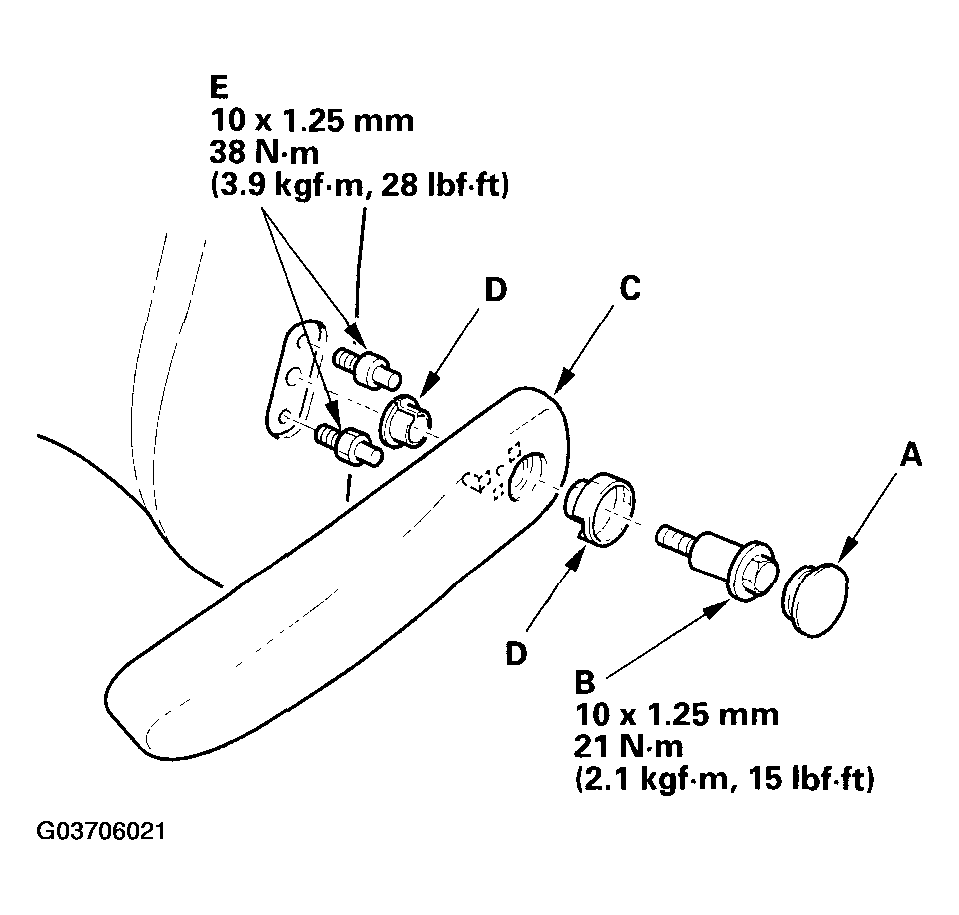

    Fig 1: Removing Cap (Normal)
    G03706021Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the armrest center pin (B), then remove the armrest (C). If necessary, remove the bushings (D) from the armrest.
  3. Remove the armrest pins (E).
  4. Install the armrest in the reverse order of removal.
    • Make sure the bushings are installed properly.
    • Make sure the cap is installed correctly.
