Front Seat Armrest Replacement: Adjustable

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using a trim tool, remove the cap (A).

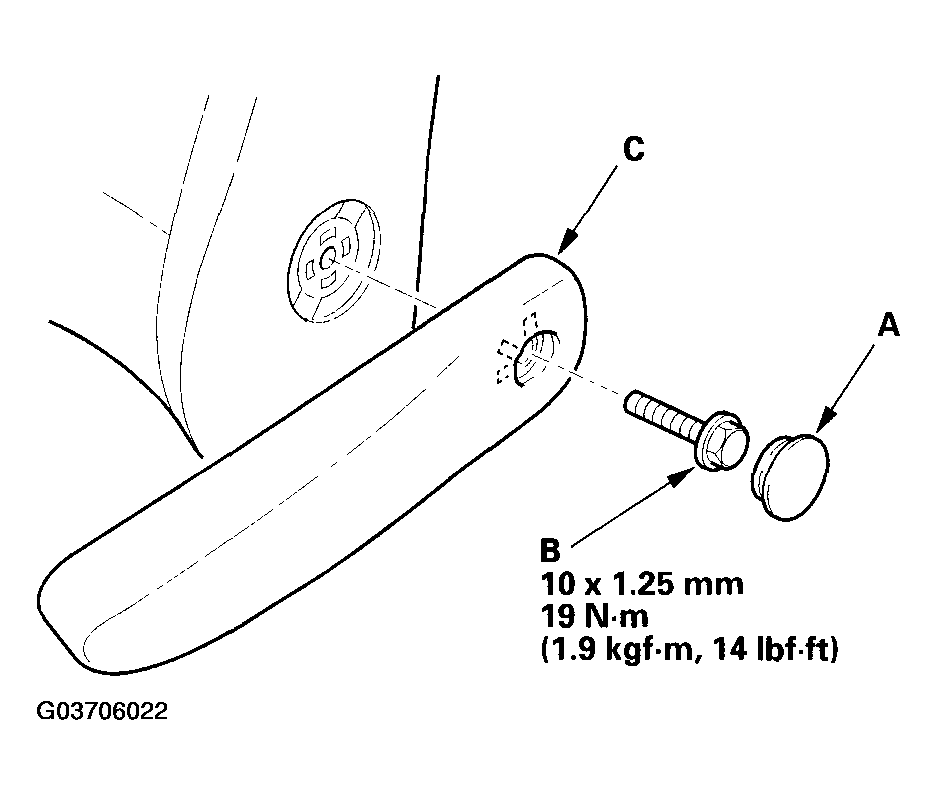

    Fig 1: Removing Cap (Adjustable)
    G03706022Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the armrest center pin (B), then remove the armrest (C).
  3. Install the armrest in the reverse order of removal, and make sure the cap is installed correctly.
